SL-PPC-12A-LL1900J-S29

12" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 / NEMA4 Rated Front Panel; Long Production Cycle Motherboard (Through Q1 2020) with Intel Celeron SoC, Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W, 1x GB (10/100/1000) LAN, HDD or SSD, 6x Serial, Up to 8GB RAM, 9x USB 2.0, 1x USB 3.0, 800 x 600 resolution, 60W Power Adapter Included

12
  • Front Angle
  • Front

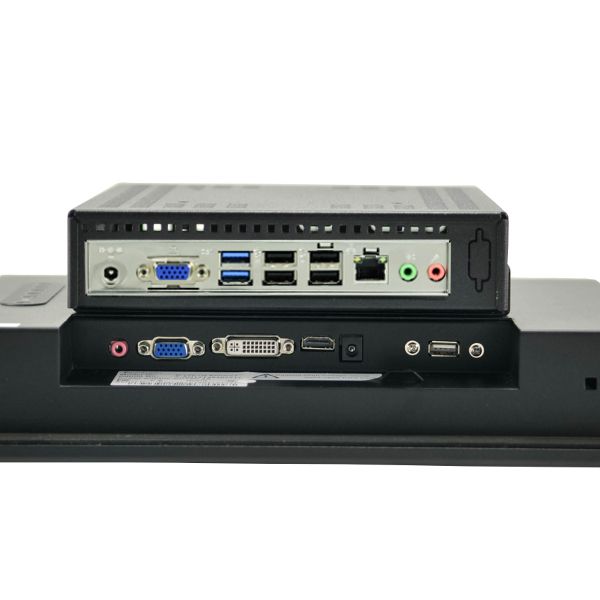

  • I/O
  • Dimensions
  • Cutout Dimensions
  • Wallmount Instructions
  • Included Accessories
Completely Fanless

Type:

  • Fanless Panel PC
  • Screen:
    • 12" 5-Wire Resistive, Native Resolution: 800 x 600, Front Panel Rating: IP65 / NEMA4
  • Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
  • Long Production Cycle Motherboard (Through Q1 2020)
  • LAN: 1x GB (10/100/1000)
  • Video: VGA
  • Audio: Realtek ALC662 HD Audio
  • Ports:
    9x USB 2.0 Ports ( 2 Front, 5 Rear, 2 via internal headers )
    1x USB 3.0 Port ( 1 Rear )
    6x COM Ports (Headers)
    1x Parallel Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Memory: 4GB DDR3 1600MHz SODIMM RAM - Upgradeable
  • Hard Drive: 500GB SATA 6Gb/s 7200 RPM 32MB 2.5" WD Black - Upgradeable
  • Power Supply: 60W Power Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads
Expedite
Display/TouchScreen
Memory
CD/DVD/OpticalDrive
Hard Drive
Cable
Networking
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Long Production Cycle
  • Long Life:YES
  • EOL Date:Q1 2020
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: DDR3 1333MHz
  • Memory Type: Non-ECC
  • DIMMS: 1
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: Realtek ALC662 HD Audio
  • On Board Video
  • Video Chipset: Supported by CPU - see Embedded CPU Information
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 1
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Realtek® RTL8111G
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 1
  • mini PCIe
  • USB and PCIe signals
  • half and/or full size mini PCIe card: full size
  • M.2
  • M.2
  • SATA
  • 42mm
  • 60mm
  • Rear IO
  • USB 2.0 Ports (on IO): 5
  • USB 3.0 Ports (on IO): 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • Serial (via Headers): 6
  • Parallel Ports: 1
  • FAN Connectors: 1
  • Management Features
  • Watch Dog
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (32 Bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (32 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Entry 32-bit
  • Windows 10 IoT Ent-Entry
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    M.2 slot supports SATA-Type SSD (2242/2260)

    Mini-PCIe slot supports WiFi Signal Only.

    Memory Support Upto DDR3L 1333



  • Motherboard Warranty: 1 Year

Display Specifications

  • Display
  • Screen Size: 12"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 800 x 600
  • Brightness (nits): 400
  • Display Area (H): 246mm
  • Display Area (V): 184mm
  • Aspect Ratio: 4 : 3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 600:1
  • Backlight: LED
  • Viewing Angle(U) : 65
  • Viewing Angle(D) : 75
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • HDMI In: 1
  • Mounting Options
  • Bezel Mounting Hardware Included
  • Suitable for Mounting in Cut-Out
  • Suggested Cut-Out Dimension (Width): 323mm
  • Suggested Cut-Out Dimension (Height): 237mm
  • Physical
  • Width: 351mm
  • Height: 265mm
  • Depth: 56mm
  • Depth (Inches): 2.2
  • Shipping Weight: 25lbs
  • Environmental
  • MTBF: 50000hours
  • Operating Temperature: 0ºC to 80ºC (32ºF to 176ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temperature: -30ºC to 80ºC (-22ºF to 176ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 12Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Features:

    Industrial Display

    • Screen Size: 12"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 800 x 600
    • Brightness (nits): 400
  • Warranty: 1 year

Chassis Specifications:

  • General
  • Form Factor: Embedded PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Internal 2.5" Bays: 1
  • Serial Port Punchouts: 3
  • Parallel Port Punchouts: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Physical
  • Depth: 193mm
  • Depth (Inches): 7.6
  • Width: 215mm
  • Height: 45mm
  • Shipping Box - Depth: 13"
  • Shipping Box - Width: 9"
  • Shipping Box - Height: 5"
  • Shipping Weight: 5lbs
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
  • Related Products Default Upgrade Groups
  • Built-in Chassis Power Supply: 60W Power Adapter Included
