BCM-1

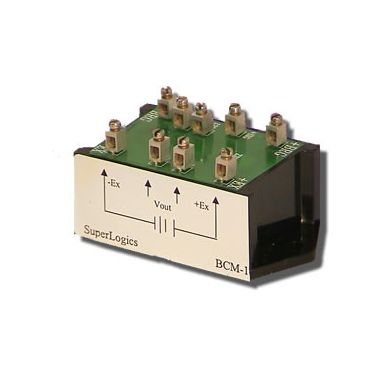

Strain gage bridge completion module

Strain gage bridge completion module
  • BCM-1
  • Strain gage bridge completion module (Completes 1 Strain Gage)
  • Offers 1/4 Bridge Completion for 120 or 350 Ohm Strain Gages
  • 1/2 Bridge Completion for Gages of Any Resistance
Related Products
Technical Specifications

Maximum Excitation:
120 ohm bridge : 10Vdc
350 ohm bridge : 16Vdc
Temperature Limits: -20 to 80°C (-4 to 176°F)
Temperature Effects: +/-1.5 microvolts/volt/°C
Zero Adjust: +/-6 millivolts/volt
Resistor Tolerance: 0.1%
Resistor TEMPCO: 5ppm/+/-°C
Dimensions: 50.8 X 31.8 X 25.4 mm (3" W X 1.25" H X 1" D)
Mounting Holes: 4.4 mm (0.175") holes on 63.5 mm (2.5" center)
