CBL-MDP-DVI-10

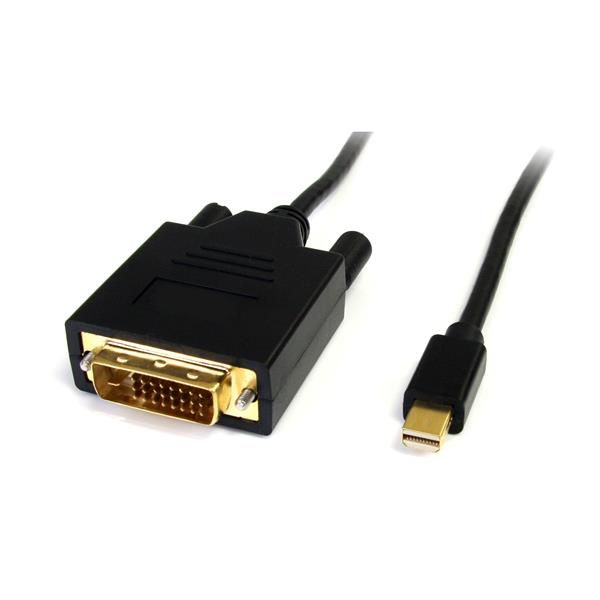

10ft Mini DisplayPort to DVI Cable
- 1x Male Mini DisplayPort connector, 1x Male DVI connector
- Supports resolutions up to 1920x1200 (WUXGA) and HDTV resolutions up to 1080p
| HARDWARE | ||
|---|---|---|
| Active or Passive Adapter | Passive | |
| Adapter Style | Cable Adapters | |
| Audio | No | |
| AV Input | Mini DisplayPort - 1.2 | |
| AV Output | DVI-D - Single-Link | |
| Chipset ID | NXP - 3361 | |
| PERFORMANCE | ||
| Audio Specifications | DVI - No Audio Support | |
| Maximum Cable Length | 10 ft [3 m] | |
| Maximum Digital Resolutions | 1920x1200 / 1080p | |
| Wide Screen Supported | Yes | |
| CONNECTOR(S) | ||
| Connector A | 1 - Mini-DisplayPort (20 pin) Male | |
| Connector B | 1 - DVI-D (25 pin) Male | |
| SPECIAL NOTES / REQUIREMENTS | ||
| System and Cable Requirements | DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through | |
| ENVIRONMENTAL | ||
| Humidity | 40%-85%RH | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) | |
| Storage Temperature | 0°C to 70°C (32°F to 158°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Cable Length | 10 ft [3 m] | |
| Color | Black | |
| Product Height | 0.6 in [1.5 cm] | |
| Product Length | 10 ft [3 m] | |
| Product Width | 1.5 in [38 mm] | |
| Weight of Product | 4.9 oz [140 g] | |
