CBL-MiniDP-to-DVI-6FT

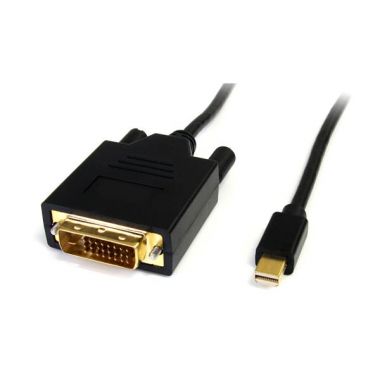

6 ft Mini DisplayPort to DVI Cable - M/M
- All-in-one cable design
- Supports resolutions up to 1920x1200 and HDTV resolutions up to 1080p
- No software or additional drivers required
| HARDWARE | ||
|---|---|---|
| Active or Passive Adapter | Passive | |
| Adapter Style | Cable Adapters | |
| Audio | No | |
| AV Input | Mini DisplayPort - 1.2 | |
| AV Output | DVI-D - Single-Link | |
| PERFORMANCE | ||
| Audio Specifications | DVI - No Audio Support | |
| Maximum Cable Length | 6 ft [1.8 m] | |
| Maximum Digital Resolutions | 1920x1200 / 1080p | |
| CONNECTOR(S) | ||
| Connector A | 1 - Mini-DisplayPort (20 pin) Male | |
| Connector B | 1 - DVI-D (25 pin) Male | |
| SPECIAL NOTES / REQUIREMENTS | ||
| System and Cable Requirements | DP++ (DisplayPort++) port required on video card or video source for DVI and HDMI signal pass-through. | |
| ENVIRONMENTAL | ||
| Humidity | 20~80% RH | |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) | |
| Storage Temperature | 0°C to 70°C (32°F to 158°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Cable Length | 6 ft [1.8 m] | |
| Color | Black | |
| Product Height | 0 in [0 cm] | |
| Product Length | 6 ft [1.8 m] | |
| Product Width | 0 in [0 mm] | |
| Weight of Product | 3.2 oz [90 g] | |
