SL-LCD-22-TD2220

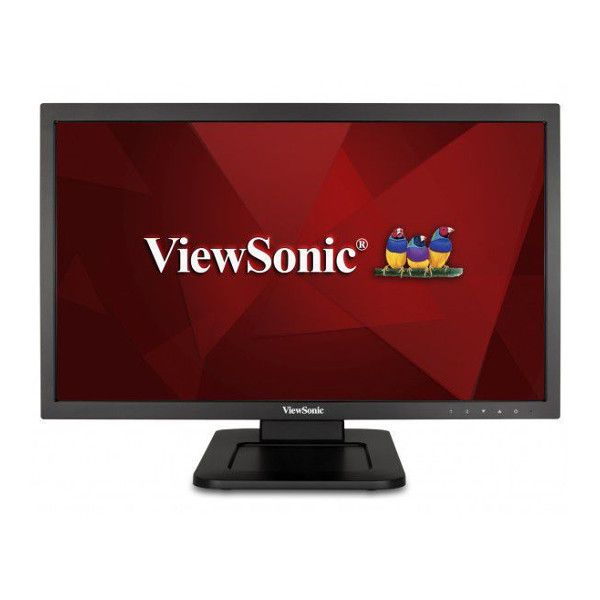

22" LED Multi-Touch Monitor - 1920x1080 Full HD, 200nits - Speakers Included

22
  • Front
  • Touch Capable
  • 22" (21.5" viewable) Full HD 1080p Optical Touch Monitor
  • Ideal interactive solution for education and home use

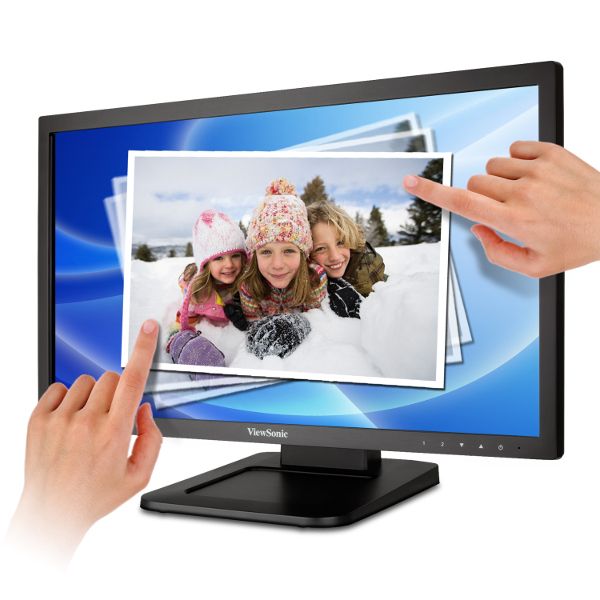

  • Full HD LED with Dual Point Optical Touch
  • Windows 7 compatible with a scratch resistant surface
Related Products
Technical Specifications



Display Size (in.)

22

Resolution

1920 x 1080

Static Contrast Ratio

1000:1

Response Time (GTG)

5ms

















Video Input
SYNC
Separate Sync
Display
TYPE
TN
STATIC CONTRAST RATIO
1000:1
VIEWING ANGLES
170º horizontal, 160º vertical
RESOLUTION
1920 x 1080
VIEWABLE AREA (IN.)
21.5
DYNAMIC CONTRAST RATIO
20,000,000:1
BACKLIGHT LIFE (HOURS)
40,000
RESPONSE TIME (GTG)
5ms
LIGHT SOURCE
LED
BRIGHTNESS
200 cd/m2
PANEL SURFACE
8H Scratch Resistant Surface Hardness
DISPLAY SIZE (IN.)
22
Compatibility
PC OPERATING SYSTEM
Windows® 7
Connector
USB 2.0 TYPE A
2
3.5MM AUDIO IN
1
VGA
1
DVI-D
1
Audio
INTERNAL SPEAKERS
2-watt (x2)
Power
ECO MODE (CONSERVE)
18W
ECO MODE (OPTIMIZED)
21W
CONSUMPTION (TYPICAL)
26W
CONSUMPTION (MAX)
43W
VOLTAGE
AC 100-240V (universal), 50-60Hz
Additional Hardware
KENSINGTON LOCK SLOT
1
Controls
PHYSICAL CONTROLS
1, 2, Down, Up, Power
ON SCREEN DISPLAY
Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB,DVI-D), Audio Adjust (Volume, Mute), Color Adjust (sRGB,Bluish, Cool, Native, Warm, User Color [R,G,B]), Information,Manual Image Adjust (H/V Position, Horizontal Size, FineTune, Sharpness, D
Operating Conditions
TEMPERATURE
32-104º F (0–40º C)
HUMIDITY (NON-CONDENSING)
20-90%
Mount
VESA COMPATIBLE
100 x 100 mm
Video Signal
FREQUENCY HORIZONTAL
24~83kHz
FREQUENCY VERTICAL
50~76Hz
Ergonomics
TILT
5º / 20º
Weight (metric)
GROSS (KG)
6.45
NET (KG)
4.92
NET WITHOUT STAND (KG)
3.96
Weight (imperial)
NET (LBS)
10.85
NET WITHOUT STAND (LBS)
8.73
GROSS (LBS)
14.22
Dimensions (metric) (wxhxd)
PACKAGING (MM)
570 x 427 x 214
PHYSICAL (MM)
511 x 635 x 240
PHYSICAL WITHOUT STAND (MM)
511 x 310 x 66
Dimensions (imperial) (wxhxd)
PACKAGING (IN.)
22.44 x 16.81 x 8.43
PHYSICAL (IN.)
20.11 x 14.37 x 9.45
PHYSICAL WITHOUT STAND (IN.)
20.11 x 12.22 x 2.61



































 Warranty: 3 year limited warranty on parts, labor and backlight
