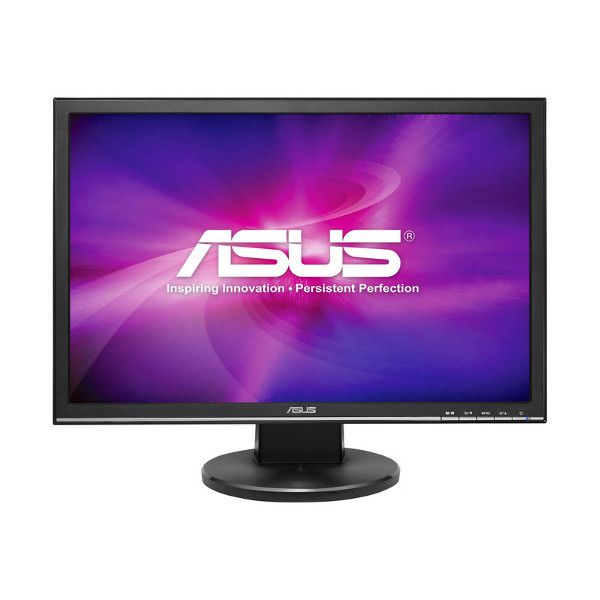

SL-LCD-22-VW22AT

22" LED Wide Screen Monitor - 16:9, 1680x1050, 250nits - Speakers Included

  • Panel Size : Wide Screen 22.0"(55.9cm) Square
  • True Resolution : 1680x1050
  • Pixel Pitch : 0.282mm
  • Brightness(Max) : 250 cd/?
  • ASUS Smart Contrast Ratio (ASCR) : 50000000:1
  • Viewing Angle (CR?10) : 170°(H)/160°(V)
  • Response Time : 5ms
  • Display Colors : 16.7M

Display

  • Panel Size : Wide Screen 22.0"(55.9cm) Square
  • True Resolution : 1680x1050
  • Pixel Pitch : 0.282mm
  • Brightness(Max) : 250 cd/?
  • ASUS Smart Contrast Ratio (ASCR) : 50000000:1
  • Viewing Angle (CR?10) : 170°(H)/160°(V)
  • Response Time : 5ms
  • Display Colors : 16.7M

Video Feature

  • SPLENDID Video Intelligence Technology
  • SPLENDID Video Preset Modes : 6 Modes
  • Skin-Tone Selection : 3 Modes
  • Color Temperature Selection : 4 Modes
  • QuickFit (modes) : Yes ( Modes)
  • HDCP support

Audio Features

  • Stereo Speakers : 1W x 2 Stereo RMS

Convenient Hotkey

  • SPLENDID Video Preset Mode Selection
  • Auto. Adjustment
  • Brightness Adjustment
  • Volume Adjustment
  • QuickFit

I/O Ports

  • Signal Input : D-Sub, DVI-D
  • PC Audio Input : 3.5mm Mini-Jack

Signal Frequency

  • Analog Signal Frequency : 31~83 KHz(H)/ 56~76 Hz(V)
  • Digital Signal Frequency : 31~83 KHz(H)/ 56~76 Hz(V)

Power Consumption

  • Power Consumption(Typical):<33W
  • Power Saving Mode:<0.5W
  • Power Off Mode: <0.3W
  • Voltage:100-240V,50/60Hz

Mechanical Design

  • Chassis Colors : Black
  • Tilt : +20°~-5°
  • VESA Wall Mounting : 100x100mm

Security

  • Kensington lock

Dimensions

  • Phys. Dimension with Stand(WxHxD):513.95 x 406.23 x 210.32mm
  • Phys. Dimension without Stand(WxHxD):513.95 x 340.79 x 63.34mm(For VESA Wall Mount)
  • Box Dimension (WxHxD):588 x462x146mm

Weight

  • Net Weight (Esti.):3.9kg
  • Gross Weight (Esti.):6.0kg

Regulation Approval

  • Energy Star®, BSMI, CB, CCC, CE, C-Tick, ErP, FCC, Gost-R, J-MOSS, RoHS, TCO5.2, TUV-Ergo, TUV-GS, UL/cUL, VCCI, WEEE, WHQL (Windows 8, Windows 7)
