SL-LCD-10A-RTOUCH-SUN-1

10" LCD Resistive Touch Panel - 800x600, 1000nits, IP65/NEMA4, Black - Ultra-Bright

10

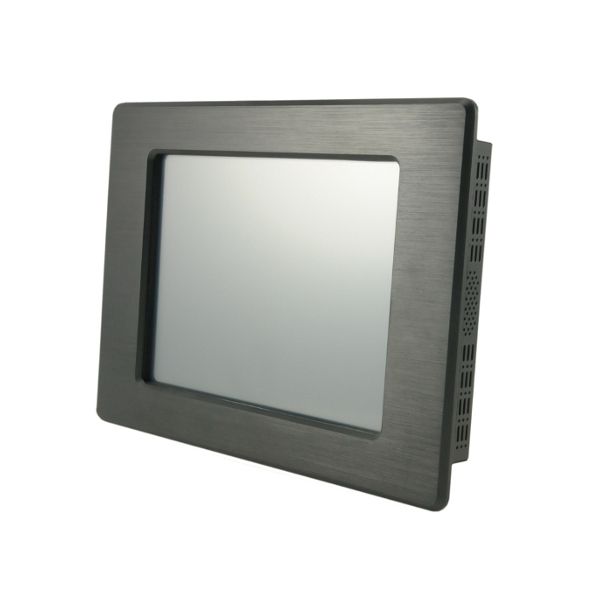

  • Front Angle

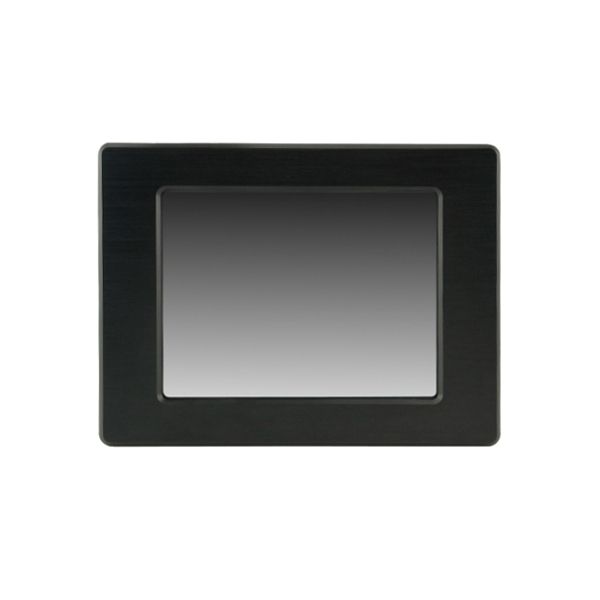

  • Front

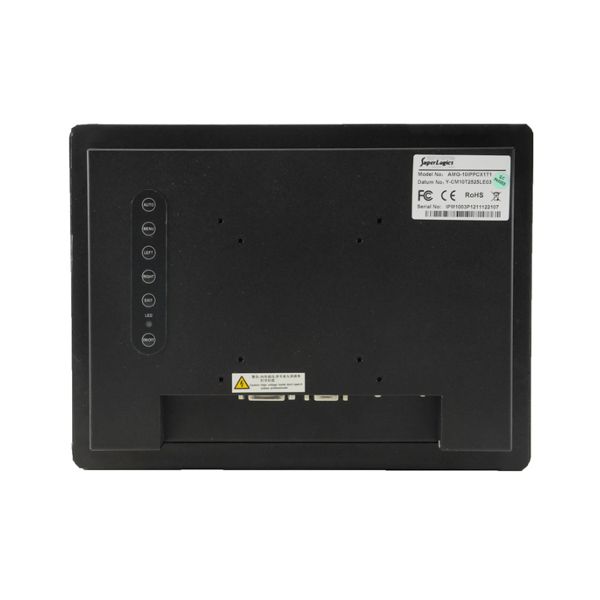

  • Back

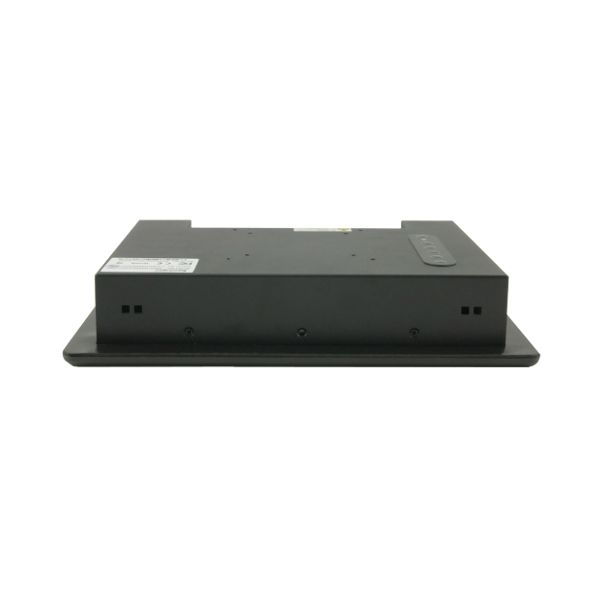

  • Top

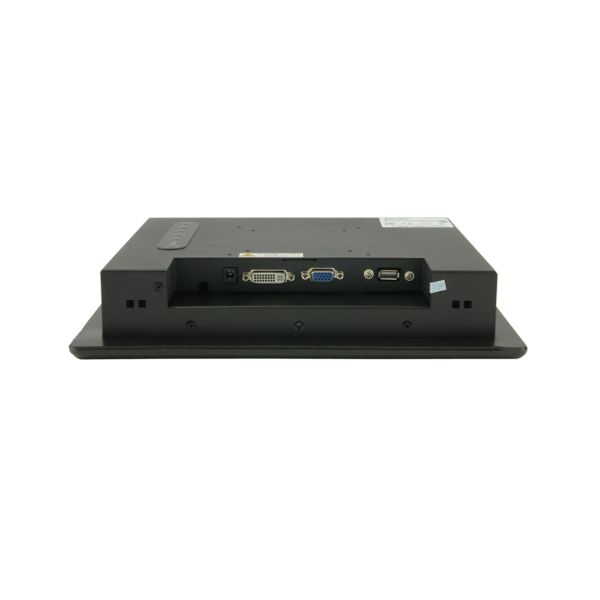

  • Bottom

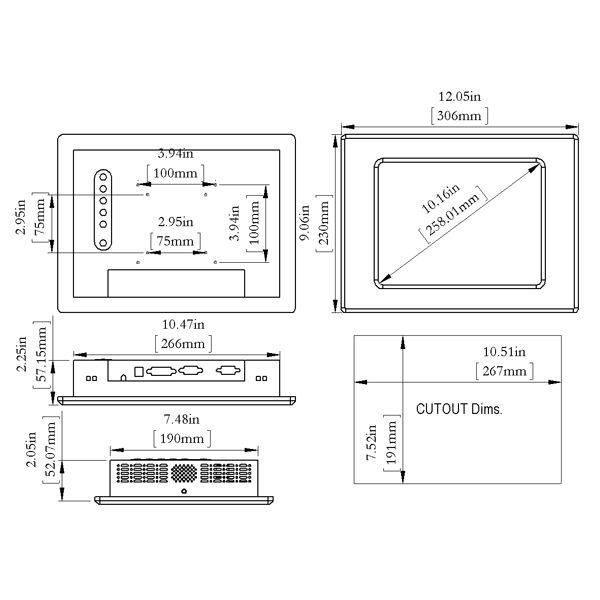

  • Dimensions
  • Included Accessories

Industrial Display

  • Screen Size: 10"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Native Display Resolution: 800 x 600
  • Brightness (nits): 1000
Related Products
Technical Specifications
Available Downloads

Display Specifications

  • Display
  • Screen Size: 10"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 800 x 600
  • Brightness (nits): 1000
  • Display Area (H): 211mm
  • Display Area (V): 158mm
  • Aspect Ratio: 4 : 3
  • DisplayColors: 256 K
  • Contrast Ratio: 500:1
  • Backlight: LED
  • Viewing Angle(U) : 60
  • Viewing Angle(D) : 60
  • Viewing Angle(L) : 50
  • Viewing Angle(R) : 50
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Mounting Options
  • Bezel Mounting Hardware Included
  • Suitable for Mounting in Cut-Out
  • Suggested Cut-Out Dimension (Width): 268mm
  • Suggested Cut-Out Dimension (Height): 191mm
  • Physical
  • Width: 12.10"
  • Height: 9.20"
  • Depth: 2.26"
  • Depth (Inches): 2.26
  • Shipping Weight: 25lbs
  • Environmental
  • MTBF: 30000hours
  • Operating Temperature: 0ºC to 70ºC (32ºF to 158ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temperature: -20ºC to 70ºC (-4ºF to 158ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 8.3Watts
  • Compliance
  • CE
  • RoHS
  • FCC
  • Other Features
  • Warranty: 1 year
