SL-LCD-10AW-RTOUCH-2

10" LCD (Wide 16:9 Format) Resistive Touch Panel - 1280X800, 400nits, VGA/DVI/HDMI Inputs, IP65/NEMA4, Black

10

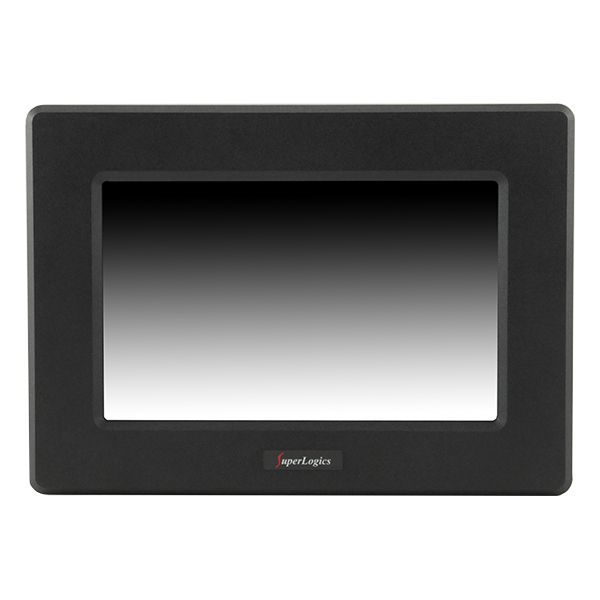

  • Front

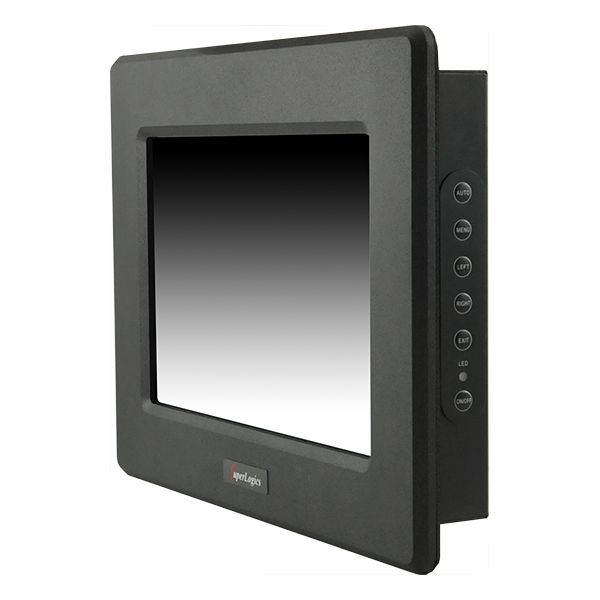

  • Side View

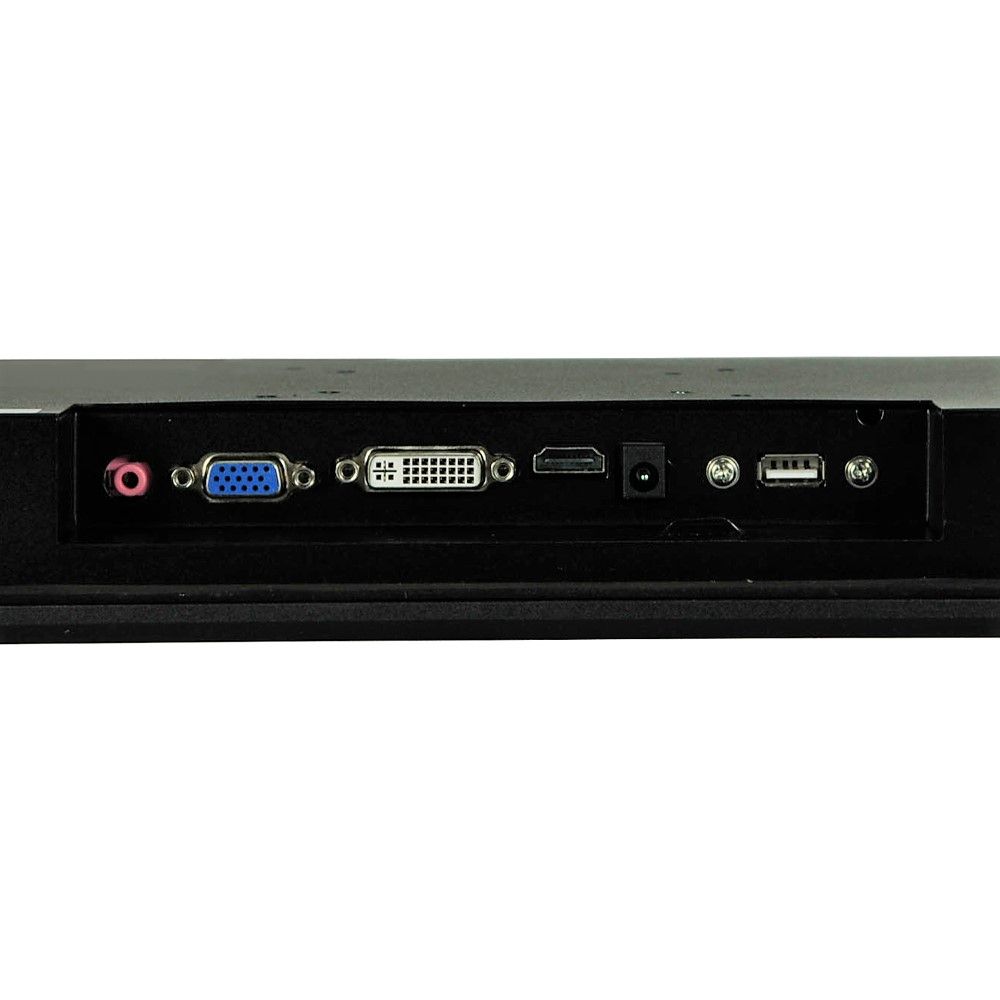

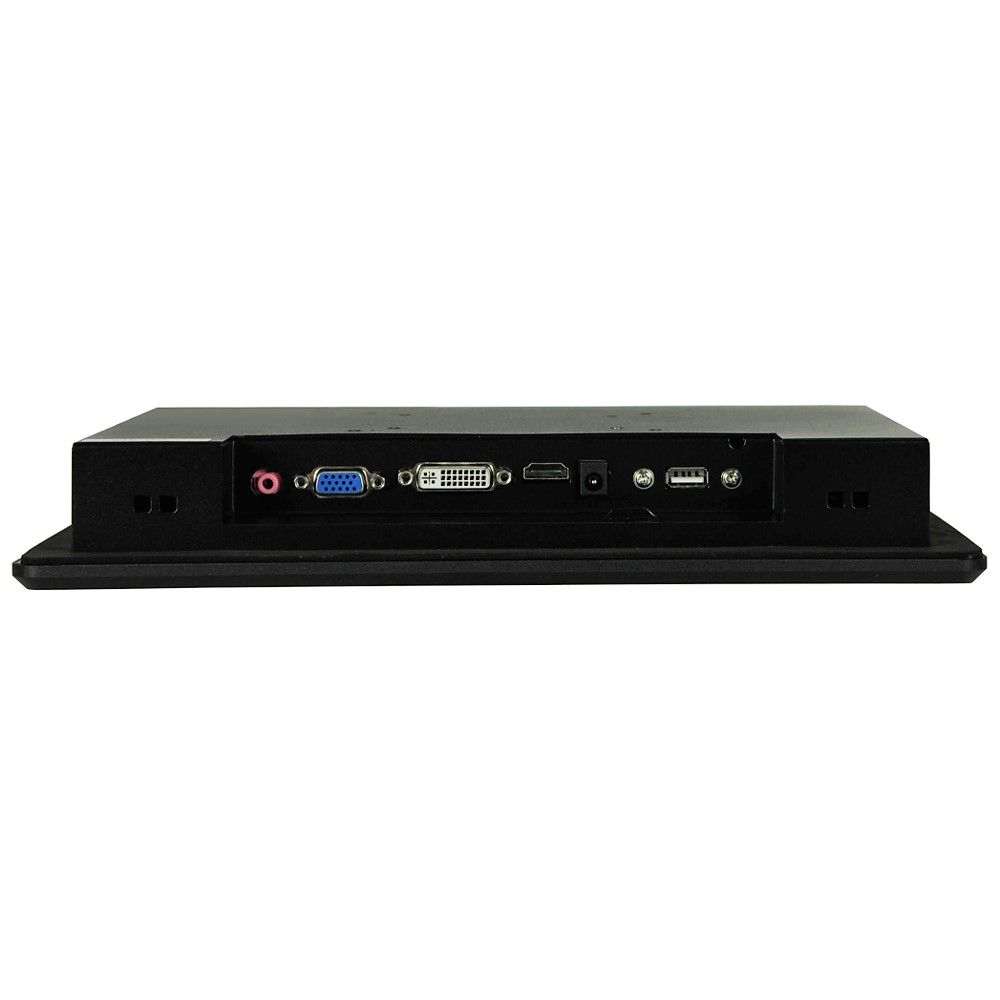

  • Bottom

ETA mid-June 2018

Industrial Display

  • Screen Size: 10"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Native Display Resolution: 1280 x 800
  • Brightness (nits): 300
Related Products
Technical Specifications
Available Downloads

Display Specifications

  • Display
  • Screen Size: 10"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 1280 x 800
  • Brightness (nits): 300
  • Display Area (H): 216mm
  • Display Area (V): 135mm
  • Aspect Ratio: 4 : 3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 800:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • HDMI In: 1
  • Mounting Options
  • Bezel Mounting Hardware Included
  • Suitable for Mounting in Cut-Out
  • Suggested Cut-Out Dimension (Width): 280"
  • Suggested Cut-Out Dimension (Height): 195"
  • Physical
  • Width: 306mm
  • Height: 219mm
  • Depth: 45mm
  • Depth (Inches): 1.75
  • Shipping Weight: 25lbs
  • Environmental
  • MTBF: 30000hours
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): <12Watts
  • Compliance
  • CE
  • RoHS
  • FCC
  • Other Features
  • Warranty: 1 year
