SL-LCD-10AXGA-NT

10" LED Monitor 1024 x 768 Resolution, 350 NITS Brightness, IP65 Front Panel, Black

10

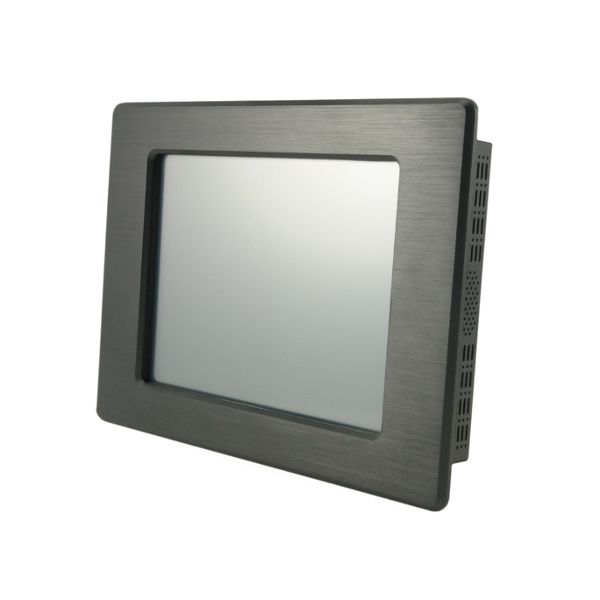

  • Front Angle
  • Front

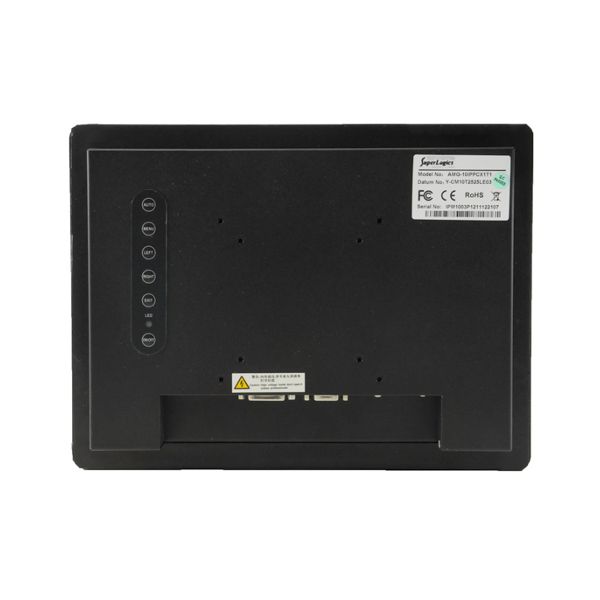

  • Back Straight

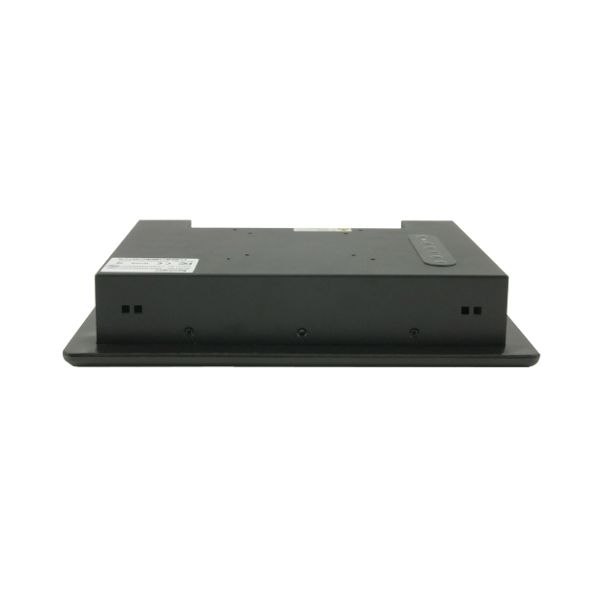

  • Back Top

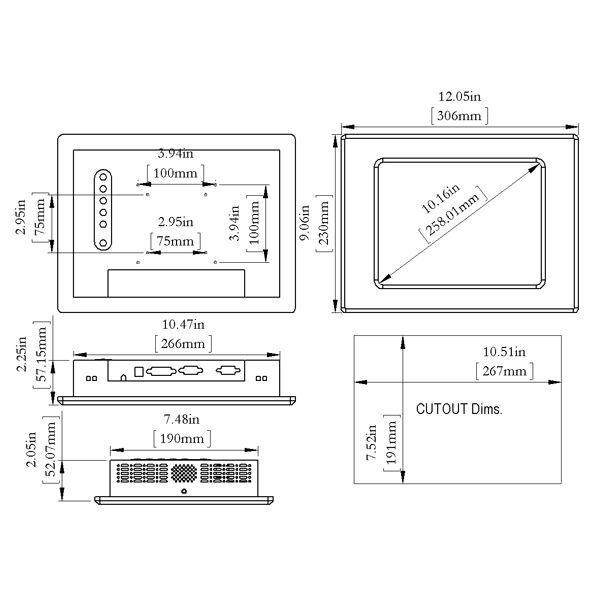

  • Diagram
  • Installation

Industrial Display

  • Screen Size (inches): 10"
  • Front Panel Rating: IP65
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 350
  • Ports: VGA Port In, DVI-I In
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
Related Products
Technical Specifications
Available Downloads
  • Display
  • Screen Size (inches): 10
  • Front Panel Rating: IP65
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 350
  • Display Area (H): 211.2mm
  • Display Area (V): 158.4mm
  • Aspect Ratio: 4 : 3
  • DisplayColors: 256 K
  • Contrast Ratio: 1200:1
  • Backlight: LED
  • Viewing Angle(U) : 50
  • Viewing Angle(D) : 50
  • Viewing Angle(L) : 60
  • Viewing Angle(R) : 60
  • Connectivity
  • VGA Port In: 0
  • DVI-I In: 2
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): 271mm
  • Suggested Cut-Out Dimension (Height): 195mm
  • Width: 306mm
  • Height: 230mm
  • Depth: 57.15mm
  • Depth (Inches): 2.26
  • Unboxed Weight: 5.27lbs
  • Shipping Weight: 20lbs
  • MTBF: 30000hours
  • Maximum Operating Temperature: 70C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 70C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Environmental
  • Power Consumption (on): 8.3Watts
  • Warranty
  • Warranty: 1 year
  • Other
  • Features: NOTE: This item is a special order and requires a 6-8 week lead time.
