SL-LCD-10AXGA-RTOUCH-1

10" LED Monitor with 5-Wire Resistive Touch Screen - 1024 x 768 Resolution, 400 NITS Brightness, IP65 Front Panel, Black

10

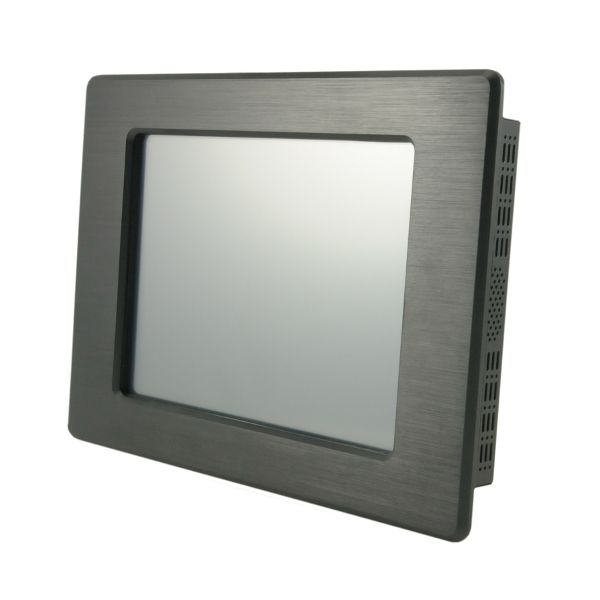

  • Front Angle

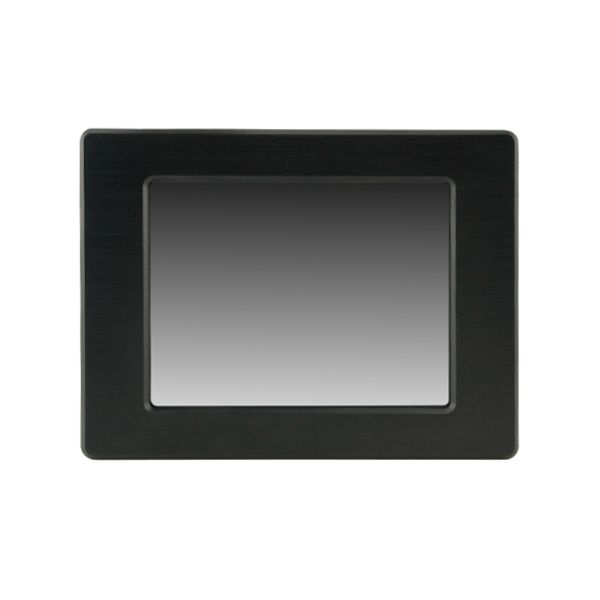

  • Front

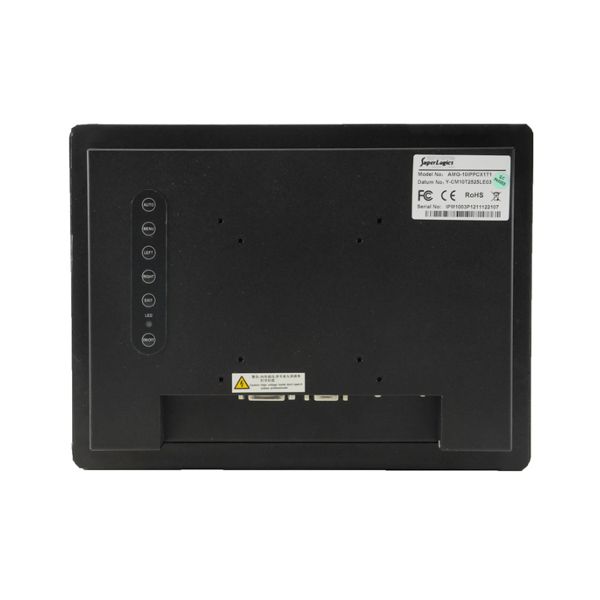

  • Back

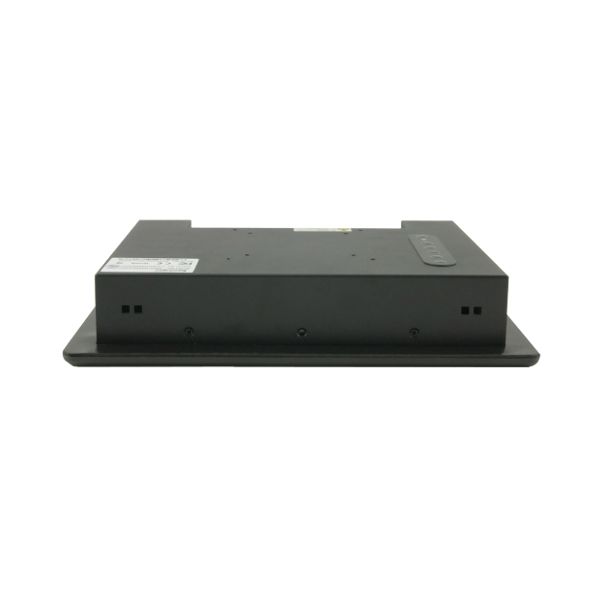

  • Top

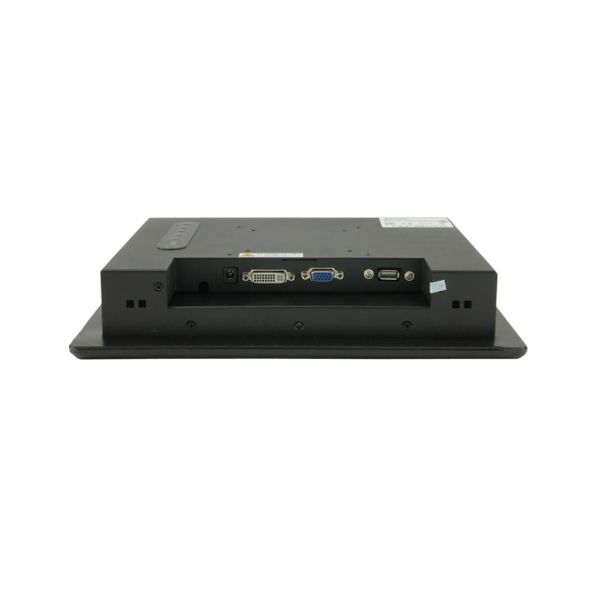

  • Bottom

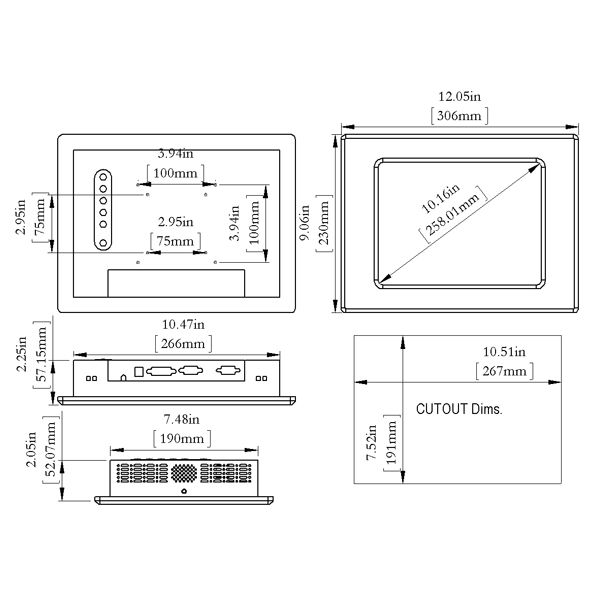

  • Dimensions

Industrial Display

  • Screen Size (inches): 10"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65
  • Aspect Ratio: 4:3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 400
  • Ports: VGA Port In, DVI-I In
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
Related Products
Technical Specifications
Available Downloads
  • Display
  • Screen Size (inches): 10
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65
  • Aspect Ratio: 4:3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 400
  • Display Area (H): 211.2mm
  • Display Area (V): 158.4mm
  • Aspect Ratio: 4:3
  • DisplayColors: 256 K
  • Contrast Ratio: 1200:1
  • Backlight: LED
  • Viewing Angle(U) : 60
  • Viewing Angle(D) : 60
  • Viewing Angle(L) : 50
  • Viewing Angle(R) : 50
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Mounting Options
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): 268mm
  • Suggested Cut-Out Dimension (Height): 191mm
  • Width: 12.1inches
  • Height: 9.2inches
  • Depth: 2.26inches
  • Depth (Inches): 2.26
  • Unboxed Weight: 6lbs
  • Shipping Weight: 25lbs
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 70C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Environmental
  • Power Consumption (on): 8.3Watts
  • Warranty
  • Warranty: 1 year
  • Other
  • Built-in Chassis Power Supply: 60W AC/DC Power Adapter Included
  • Features:

    Industrial Display

    • Screen Size: 10"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1280 x 800
    • Brightness (nits): 300
