SL-LCD-12A-NT-1

12" LCD Non-Touch Panel - 800x600, 400nits, IP65/NEMA4, Black

12

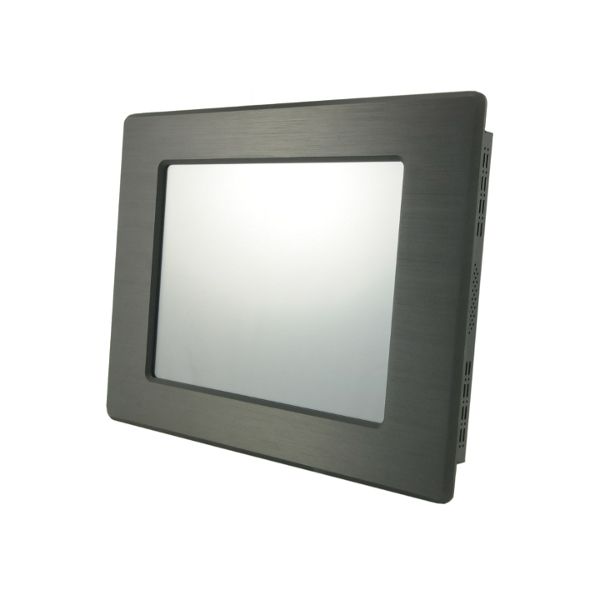

  • Front Angle

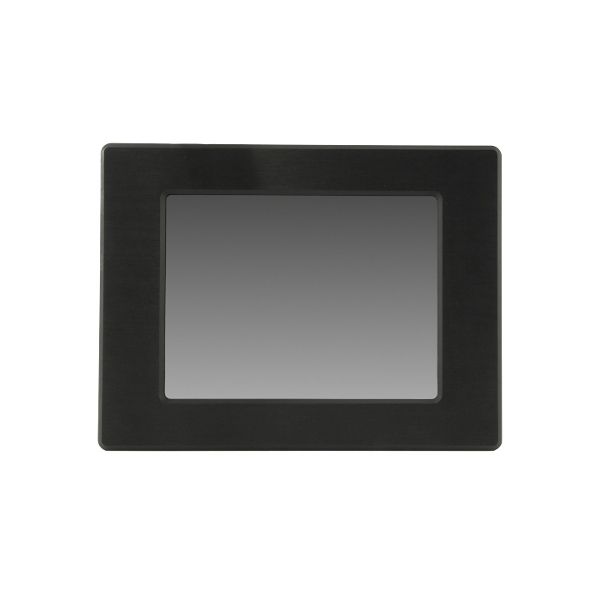

  • Front

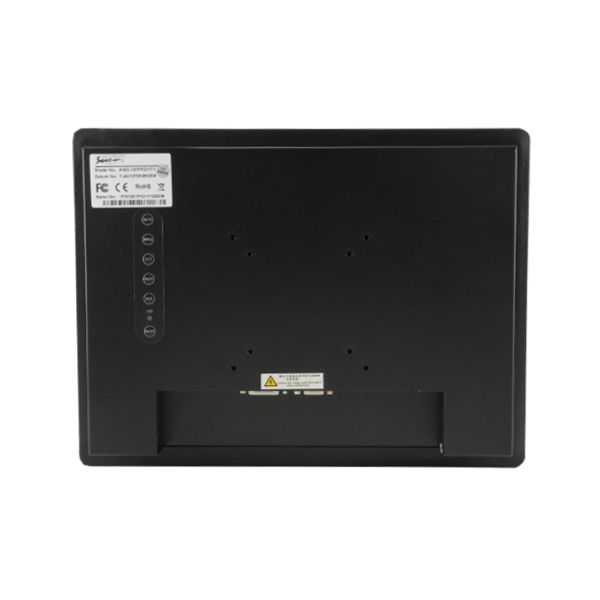

  • Back

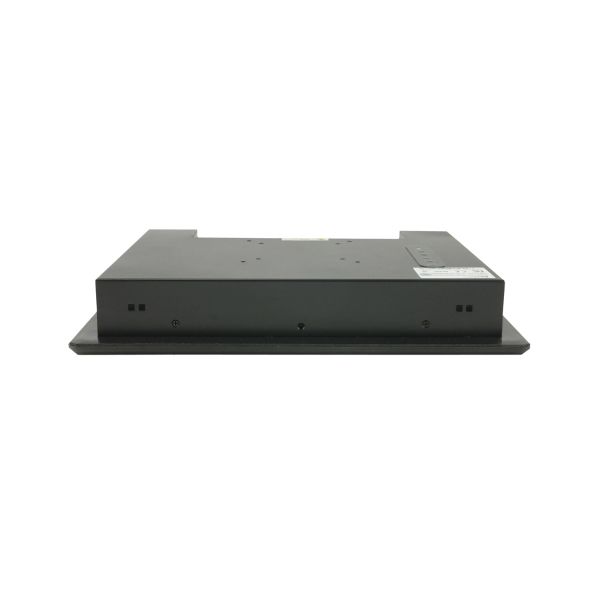

  • Top

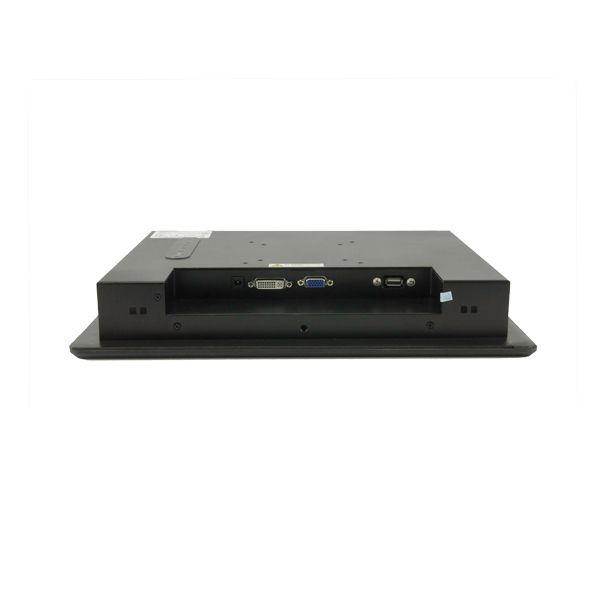

  • Bottom

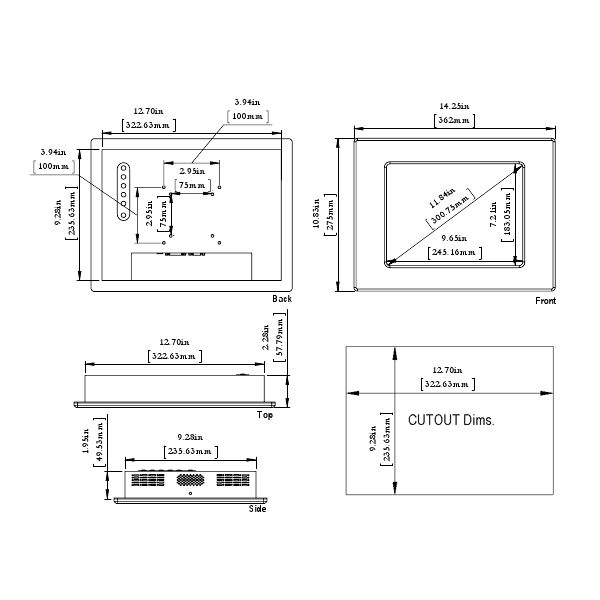

  • Dimensions

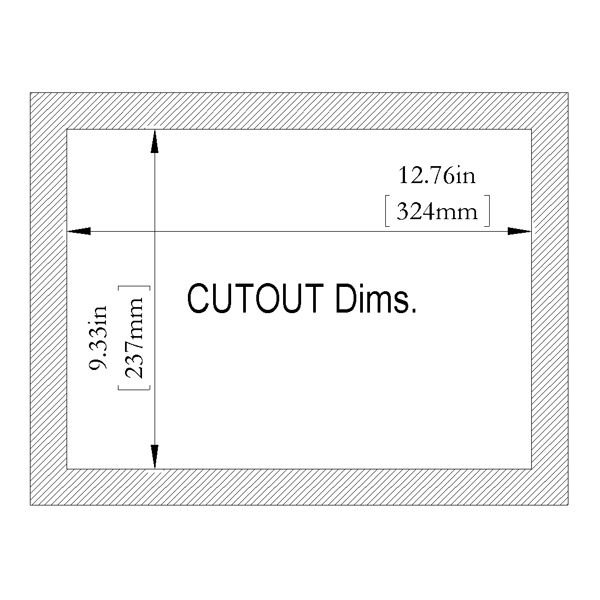

  • Cutout Dimensions
  • Included Accessories
  • Wallmount Instructions

Industrial Display

  • Screen Size: 12"
  • Touch Type: None
  • Front Panel Rating: IP65 / NEMA4
  • Native Display Resolution: 800 x 600
  • Brightness (nits): 400
Related Products
Technical Specifications
Available Downloads
  • Display
  • Screen Size: 12"
  • Touch Type: None
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 800 x 600
  • Brightness (nits): 400
  • Display Area (H): 246mm
  • Display Area (V): 184mm
  • Aspect Ratio: 4 : 3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 600:1
  • Backlight: LED
  • Viewing Angle(U) : 70
  • Viewing Angle(D) : 70
  • Viewing Angle(L) : 55
  • Viewing Angle(R) : 55
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Mounting Options
  • Bezel Mounting Hardware Included
  • Suitable for Mounting in Cut-Out
  • Suggested Cut-Out Dimension (Width): 323mm
  • Suggested Cut-Out Dimension (Height): 237mm
  • Physical
  • Width: 351mm
  • Height: 265mm
  • Depth: 56mm
  • Depth (Inches): 2.2
  • Shipping Weight: 25lbs
  • Environmental
  • MTBF: 50000hours
  • Operating Temperature: 0ºC to 80ºC (32ºF to 176ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temperature: -30ºC to 80ºC (-22ºF to 176ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 9Watts
  • Compliance
  • CE
  • RoHS
  • FCC
  • Other Features
  • Warranty: 1 year
