SL-LCD-12AXGA-NT-1

12" LED Monitor 1024 x 768 Resolution, 500 NITS Brightness, IP65 Front Panel, Black

12

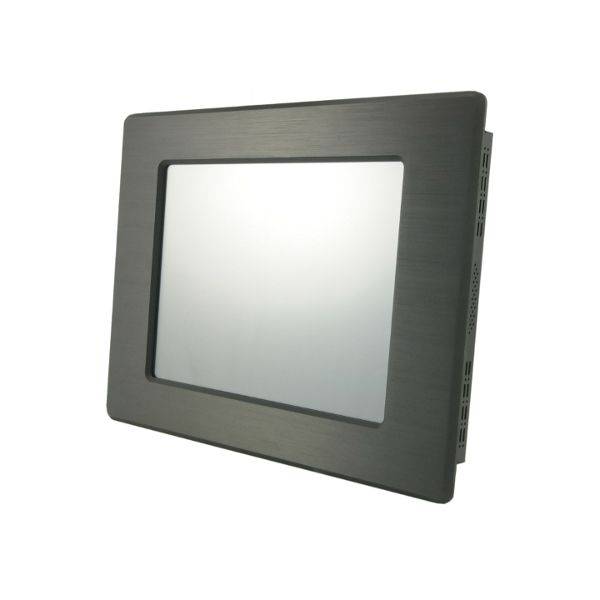

  • Front Angle

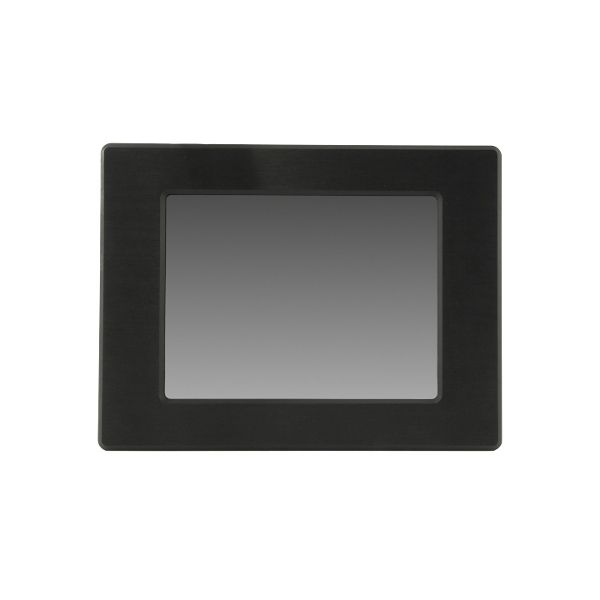

  • Front

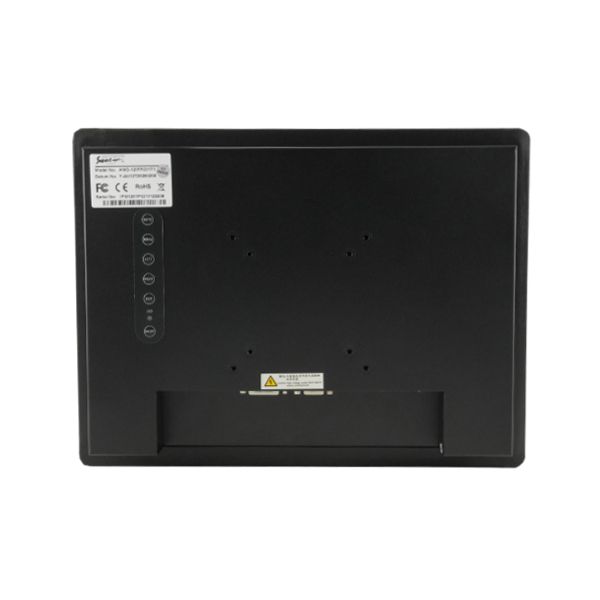

  • Back

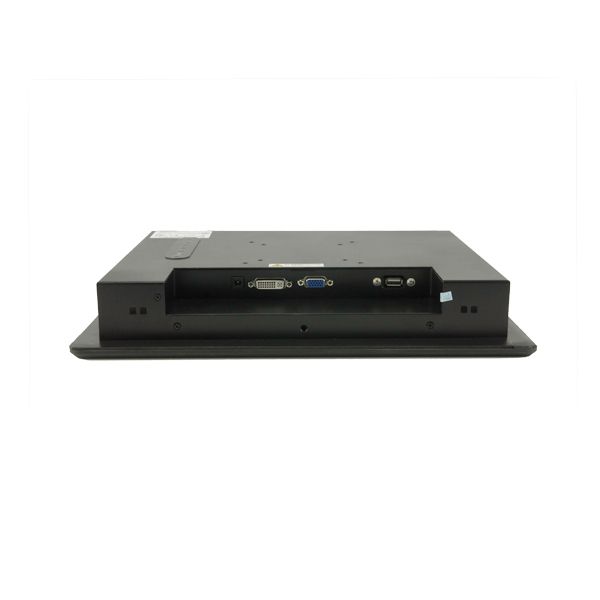

  • Bottom

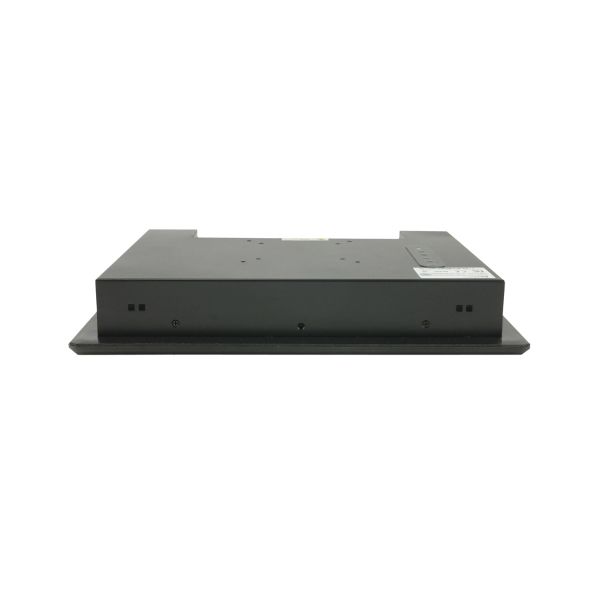

  • Top

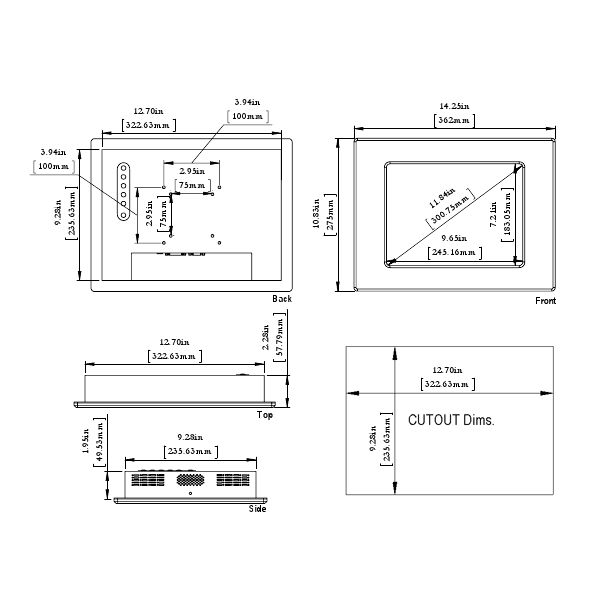

  • Dimension

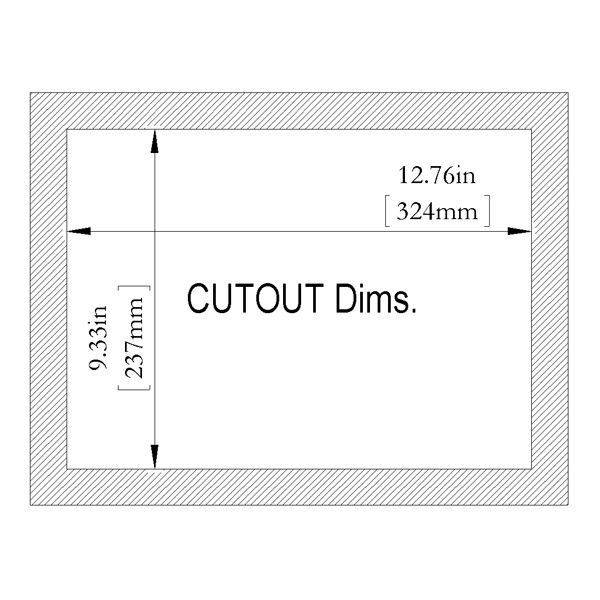

  • Cut out dimension
  • Included Accessories

Industrial Display

  • Screen Size (inches): 12"
  • Front Panel Rating: IP65
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 500
  • Ports: VGA Port In, DVI-I In
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
Related Products
Technical Specifications
Available Downloads
  • Display
  • Screen Size (inches): 12
  • Front Panel Rating: IP65
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 500
  • Display Area (H): 246mm
  • Display Area (V): 184.5mm
  • Aspect Ratio: 4 : 3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 500:1
  • Backlight: LED
  • Viewing Angle(U) : 70
  • Viewing Angle(D) : 70
  • Viewing Angle(L) : 55
  • Viewing Angle(R) : 55
  • Connectivity
  • VGA Port In: 0
  • DVI-I In: 2
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): 326mm
  • Suggested Cut-Out Dimension (Height): 239mm
  • Width: 351mm
  • Height: 265mm
  • Depth: 56mm
  • Depth (Inches): 2.2
  • Unboxed Weight: 9lbs
  • Shipping Weight: 25lbs
  • MTBF: 50000hours
  • Maximum Operating Temperature: 80C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 80C
  • Storage Temp (Low): -30C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Environmental
  • Power Consumption (on): 12Watts
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Display Specifications

    • Display
    • Screen Size: 12"
    • Touch Type: None
    • Front Panel Rating: IP65
    • Color: Black
    • Native Display Resolution: 1024 x 768
    • Brightness (nits): 500
    • Display Area (H): 246mm
    • Display Area (V): 184mm
    • Aspect Ratio: 4 : 3
    • DisplayColors: 16.2 M
    • Contrast Ratio: 500:1
    • Backlight: LED
    • Connectivity
    • VGA Port In: 1
    • DVI-I In: 1
