SL-LCD-12AXGA-RTOUCH-1 This item is no longer available.
12" LED Monitor with 5-Wire Resistive Touch Screen - 1024 x 768 Resolution, 500 NITS Brightness, IP65 / NEMA4 Front Panel, Black
Industrial Display
- Screen Size (inches): 12"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 4 : 3
- Native Display Resolution: 1024 x 768
- Brightness (nits): 500
- Ports: VGA Port In, DVI-I In
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
- Display
- Screen Size (inches): 12
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 4 : 3
- Native Display Resolution: 1024 x 768
- Brightness (nits): 500
- Display Area (H): 246mm
- Display Area (V): 184.50mm
- Aspect Ratio: 4 : 3
- DisplayColors: 16.2 M
- Contrast Ratio: 500:1
- Backlight: LED
- Viewing Angle(U) : 70
- Viewing Angle(D) : 70
- Viewing Angle(L) : 55
- Viewing Angle(R) : 55
- Connectivity
- VGA Port In: 1
- DVI-I In: 1
- Mounting Options
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

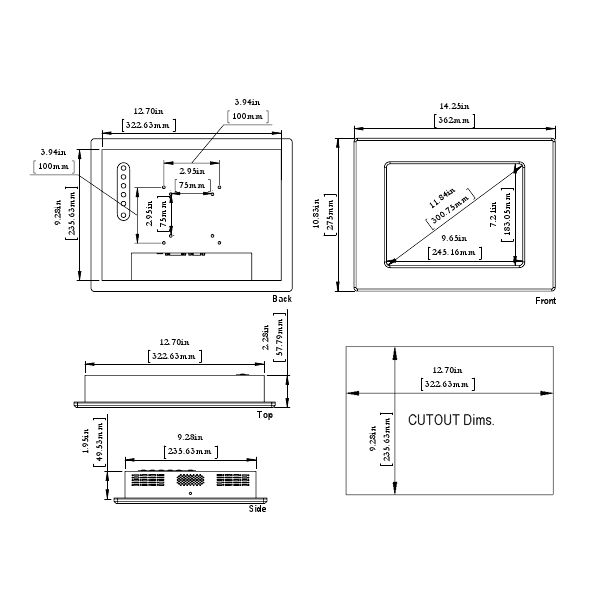

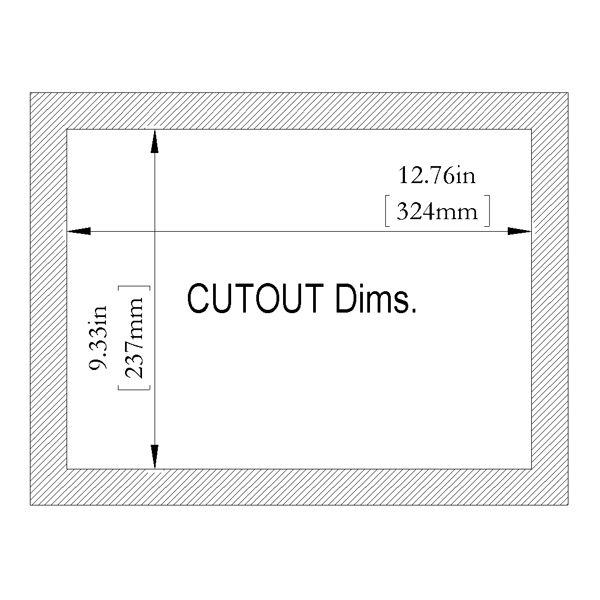

- Suggested Cut-Out Dimension (Width): 326mm
- Suggested Cut-Out Dimension (Height): 239mm
- Physical
- Width: 351mm
- Height: 265mm
- Depth: 56mm
- Depth (Inches): 2.2
- Unboxed Weight: 9lbs
- Shipping Weight: 25lbs
- Environmental
- MTBF: 50000hours
- Maximum Operating Temperature: 80C
- High Humidity: 90%
- Low Humidity: 8%
- Storage Temp (High): 80C
- Storage Temp (Low): -30C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 8%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 12Watts
- Compliance of Component
- CE
- RoHS
- FCC
- Warranty
- Warranty: 1 year
- Other
- Features:
Industrial Display
- Screen Size: 12"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 1024 x 768
- Brightness (nits): 500
Windows 10 Windows 8.1 Windows 8 Windows Embedded 8 Embedded 8.1 Industry Embedded 8.1 Pro Embedded 8 Standard Windows 7 Windows Embedded 7 Embedded Enterprise 7 Embedded Standard 7 Embedded POSReady 7 Windows XP Windows Embedded POSReady 2009 Windows 2000
