SL-LCD-15-CTOUCH-LCD This item is no longer available.

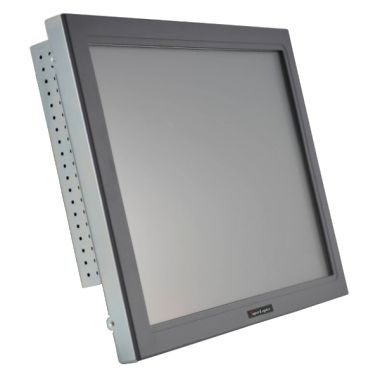

15" TFT, Active Matrix (CCFL) Monitor with Capacitive Touch Screen - 1024 x 768 Resolution, 250 NITS Brightness, NEMA 1 Front Panel, Black

Industrial Display

  • Screen Size (inches): 15"
  • Touch Type: Capacitive
  • Front Panel Rating: NEMA 1
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 250
  • Ports: VGA Port In
  • Mounting Options: VESA 75mm x 75mm, Other options sold separately
  • Display
  • Screen Size (inches): 15
  • Touch Type: Capacitive
  • Front Panel Rating: NEMA 1
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 250
  • Display Area (H): 304.10mm
  • Display Area (V): 228.10mm
  • Aspect Ratio: 4 : 3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 500:1
  • Backlight: TFT, Active Matrix (CCFL)
  • Viewing Angle(U) : 75
  • Viewing Angle(D) : 75
  • Viewing Angle(L) : 75
  • Viewing Angle(R) : 75
  • Connectivity
  • VGA Port In: 1
  • Mounting Options
  • Mounting Options: VESA 75mm x 75mm, Other options sold separately
  • Suggested Cut-Out Dimension (Width): 354mm
  • Suggested Cut-Out Dimension (Height): 280mm
  • Physical
  • Width: 13.80"
  • Height: 11"
  • Depth: 2"
  • Depth (Inches): 2
  • Unboxed Weight: 9.2lbs
  • Shipping Weight: 16lbs
  • Environmental
  • MTBF: 50,000hours
  • Maximum Operating Temperature: 40C
  • High Humidity: 90%
  • Low Humidity: 5%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 5%
  • Power
  • Power Supply: Accepts 110/220V AC Power directly or 12VDC
  • Power Consumption (on): 28Watts
  • Compliance of Component
  • UL
  • CE
  • FCC
  • Warranty
  • Warranty: 3 years
  • Other
  • Features:
    • Screen Size: 15"
    • Touch Type: Capacitive
    • Front Panel Rating: Not Rated
    • Native Display Resolution: 1024 x 768
    • Brightness (nits): 250
    • NEMA 1
