SL-LCD-15-RTouch-SSB-DC

15" TFT, Active Matrix (CCFL) Monitor with 5-Wire Resistive Touch Screen - 1024 x 768 Resolution, 400 NITS Brightness, IP66 Front Panel, Stainless Steel

Hazardous Location: UL Listed for Class I, II, III, Division 2, Groups A, B, C, D, F, G; T-Code T4A

Industrial Display

  • Screen Size (inches): 15"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP66
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 400
  • Ports: VGA Port In, DVI-D In
  • Mounting Options: VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
  • Display
  • Screen Size (inches): 15
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP66
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 400
  • Display Area (H): 304mm
  • Display Area (V): 228mm
  • Aspect Ratio: 4 : 3
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1500:1
  • Backlight: TFT, Active Matrix (CCFL)
  • Viewing Angle(U) : 170°
  • Viewing Angle(D) : 170°
  • Viewing Angle(L) : 170°
  • Viewing Angle(R) : 170°
  • Connectivity
  • VGA Port In: 1
  • DVI-D In: 1
  • Mounting Options
  • Mounting Options: VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately

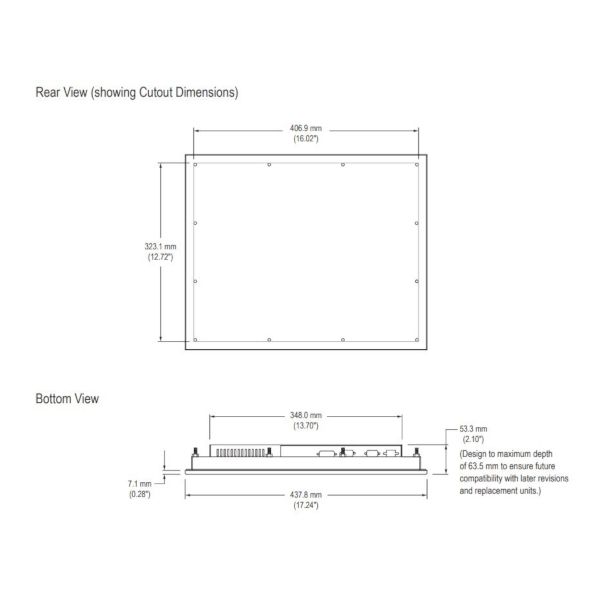

  • Suggested Cut-Out Dimension (Width): 406.90mm
  • Suggested Cut-Out Dimension (Height): 323.10mm
  • Physical

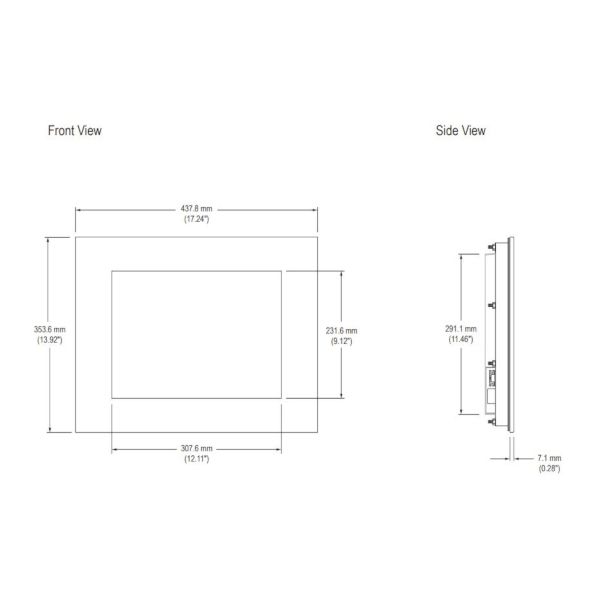

  • Width: 437.80mm
  • Height: 353.60mm
  • Depth: 54.10mm
  • Depth (Inches): 2.15
  • Unboxed Weight: 14lbs
  • Shipping Weight: 35lbs
  • Environmental
  • MTBF: 60000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 20%
  • Storage Temp (High): 80C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 20%
  • Power
  • Power Supply: 9.6 to 36.6 VDC, 2.5 to 0.65 A, Class 2 or SELV/LPS
  • Power Consumption (on): 17Watts
  • Compliance of Component
  • CE
  • FCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Industrial Display

    • Screen Size: 15"
    • Touch Type: 5-wire single-touch resistive system with mouse emulation
    • Front Panel Rating: IP66
    • Bezel Material: Stainless Steel
    • Native Display Resolution: 1024 x 768
    • Brightness (nits): 400
    • Hazardous Location: UL Listed for Class I, II, III, Division 2, Groups A, B, C, D, F, G; T-Code T4A
