SL-LCD-15A-NT-1

15" LED Monitor 1024 x 768 Resolution, 400 NITS Brightness, IP65 / NEMA4 Front Panel, Black

15'' LCD Non-Touch Panel - 1024x768, 350nits, IP65/NEMA4, Black Powder Coat Bezel

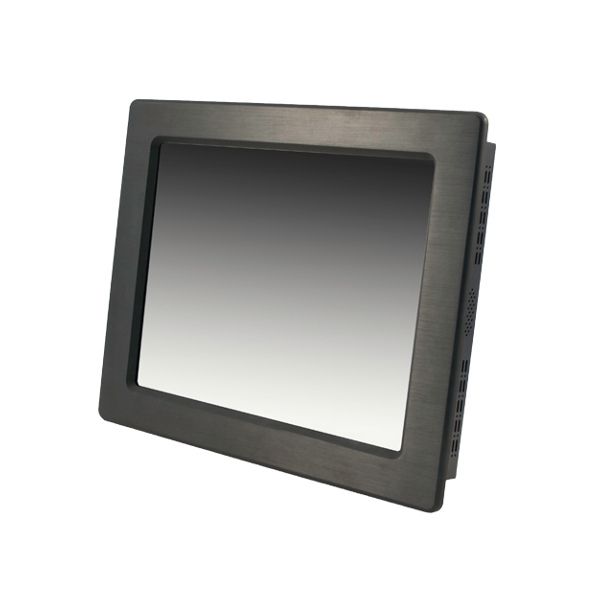

  • Front Angle

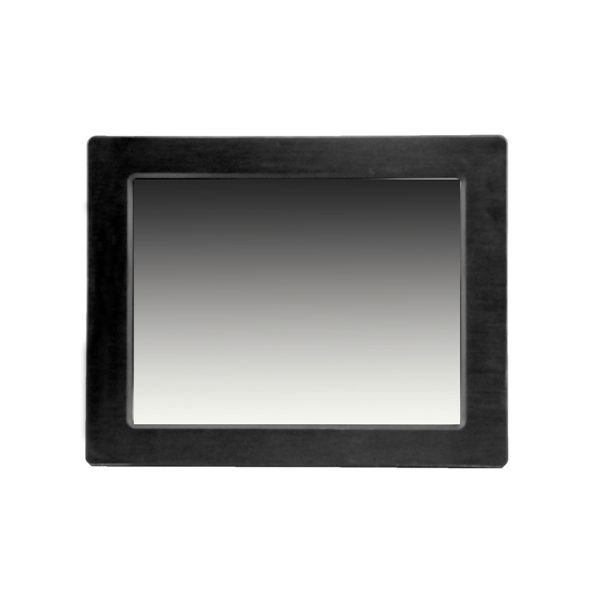

  • Front
  • Back

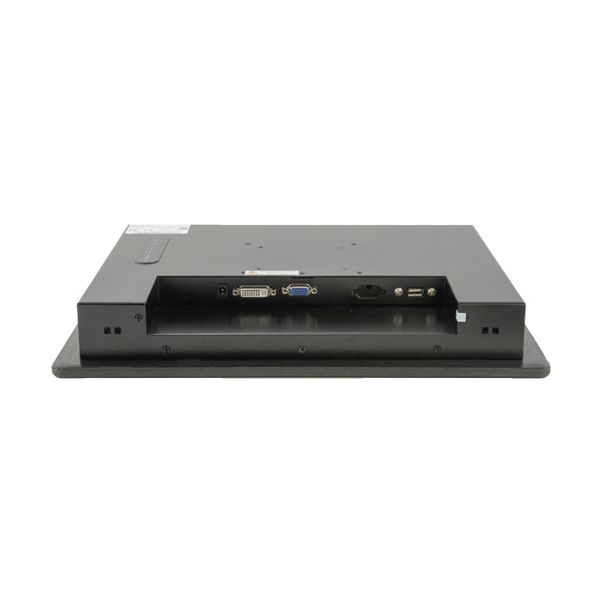

  • Bottom

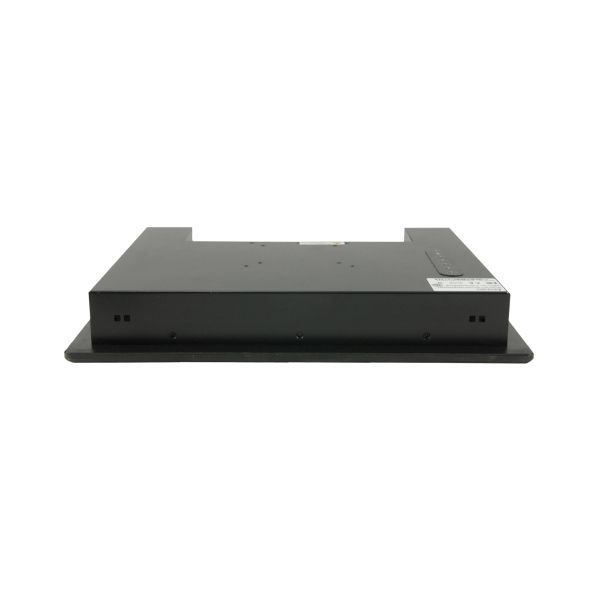

  • Top

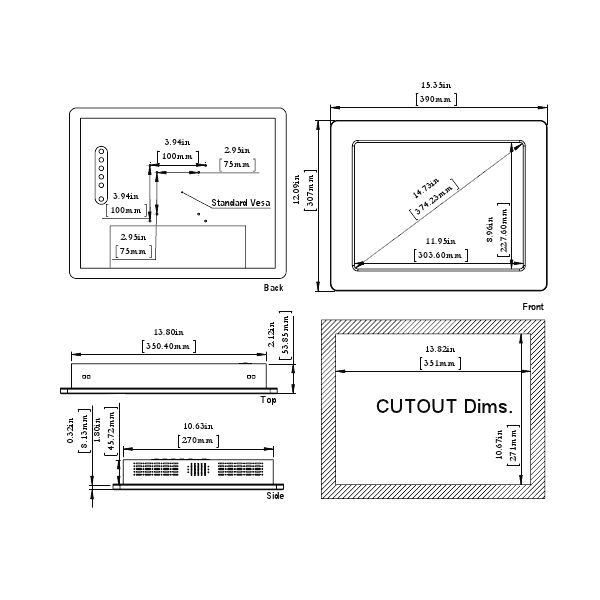

  • Dimensions

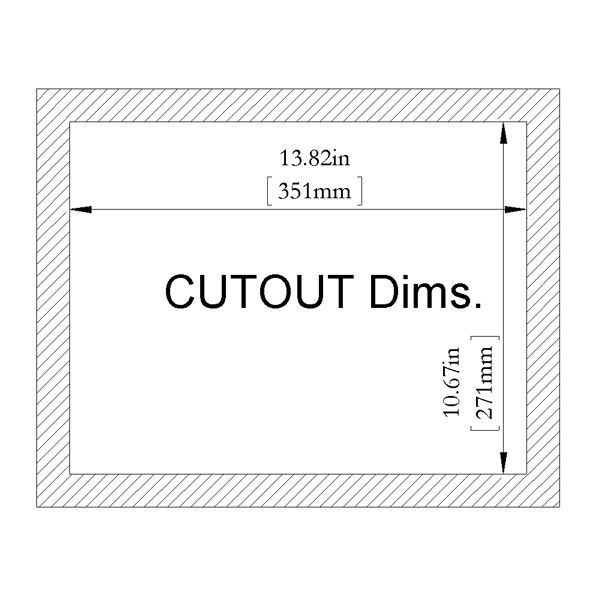

  • Cutout Dimensions
  • Included Accessories

Industrial Display

  • Screen Size (inches): 15"
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 400
  • Ports: VGA Port In, DVI-I In
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
Related Products
Technical Specifications
Available Downloads
  • Display
  • Screen Size (inches): 15
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 400
  • Display Area (H): 304.128mm
  • Display Area (V): 228.096mm
  • Aspect Ratio: 4 : 3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 700:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 70
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 0
  • DVI-I In: 2
  • Mounting Options
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): 350.4mm
  • Suggested Cut-Out Dimension (Height): 267.4mm
  • Width: 378.4mm
  • Height: 295.4mm
  • Depth: 56mm
  • Depth (Inches): 2.2
  • Unboxed Weight: 10lbs
  • Shipping Weight: 30lbs
  • MTBF: 50000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 80C
  • Storage Temp (Low): -30C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Environmental
  • Power Consumption (on): 12Watts
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Industrial Display

    • Screen Size: 15"
    • Touch Type: None
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1024 x 768
    • Brightness (nits): 450
