SL-LCD-15A-PCAPTOUCH-SUN-1

15'' LCD PCAP Touch Panel - 1024x768, 1000nits, IP65/NEMA4, Black - Ultra-Bright

15'' LCD PCAP Touch Panel - 1024x768, 1000nits, IP65/NEMA4, Black - Ultra-Bright

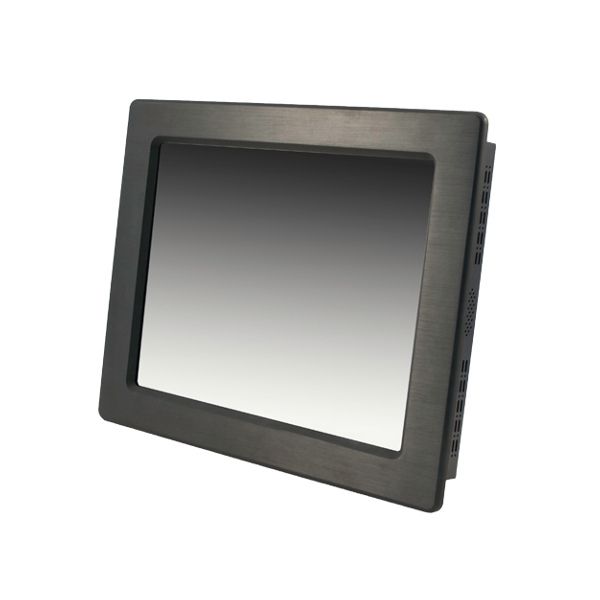

  • Front Angle

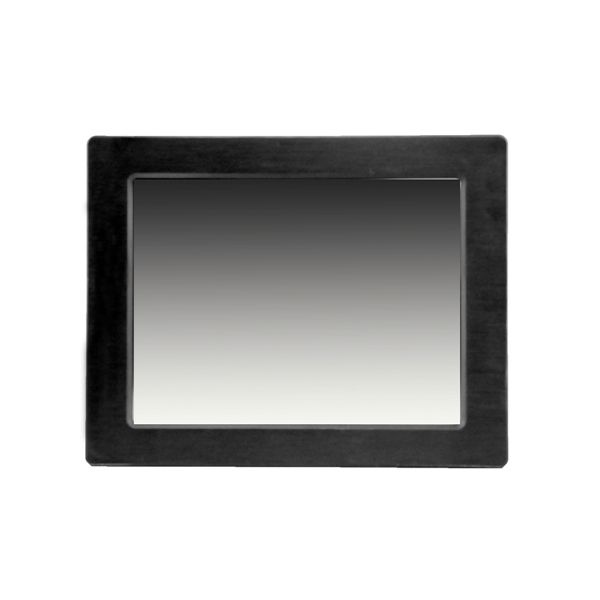

  • Front

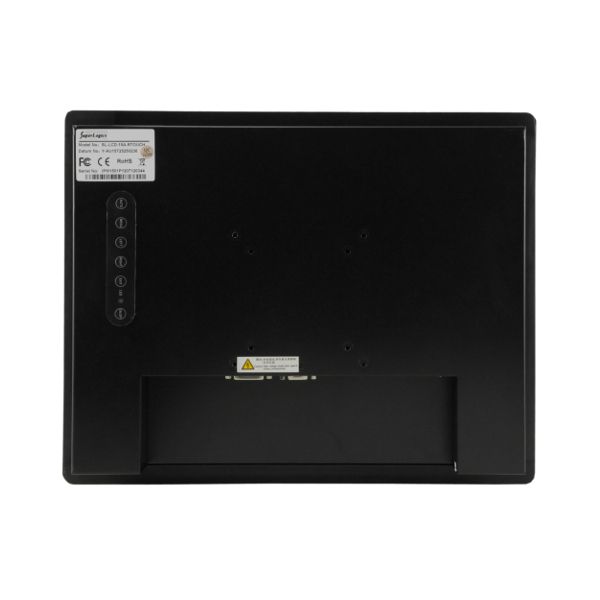

  • Back

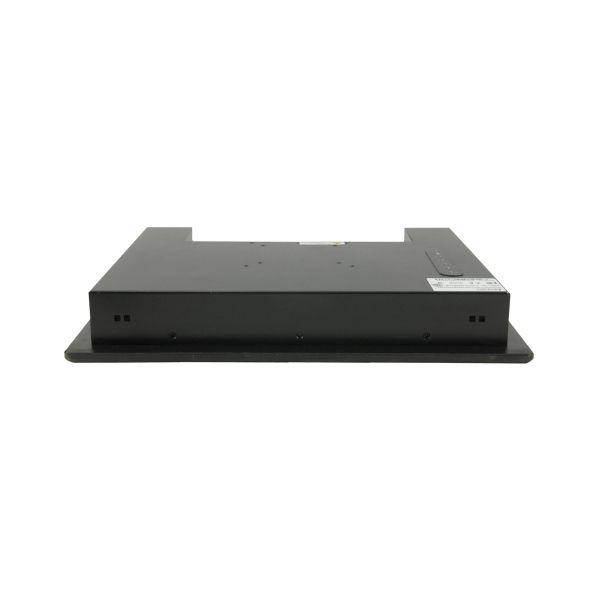

  • Top

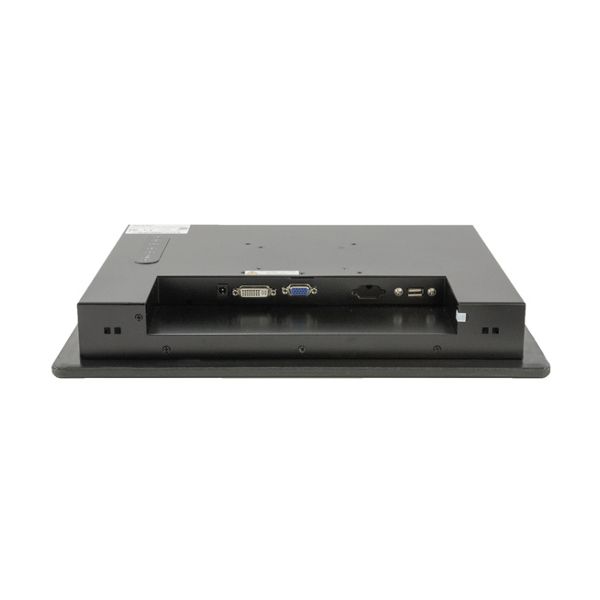

  • Bottom

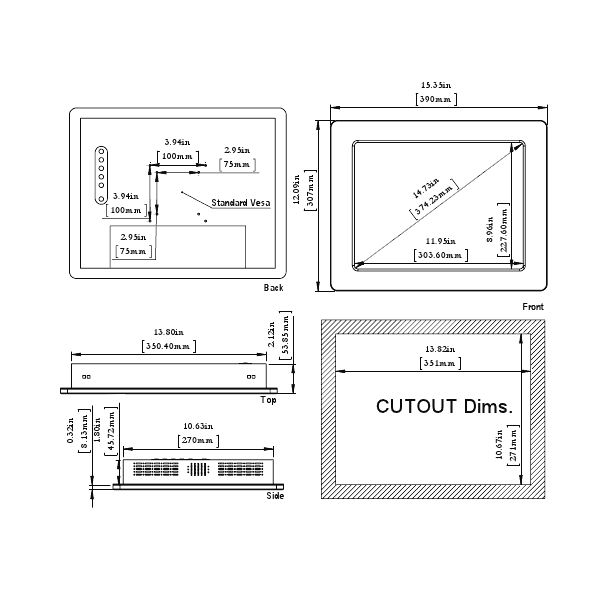

  • Dimension

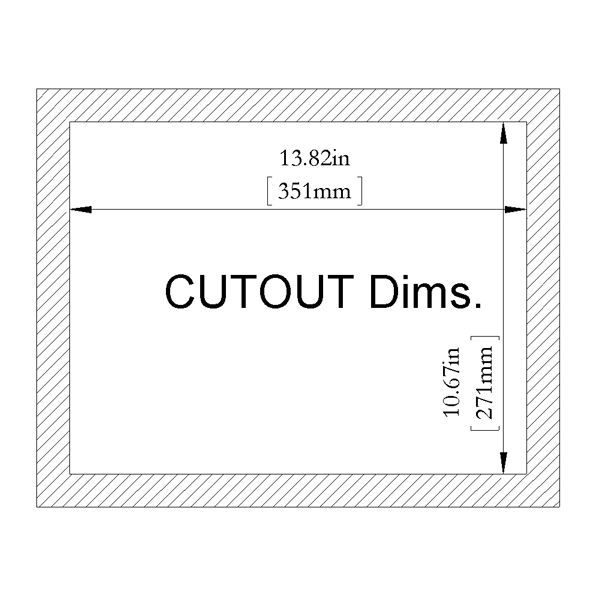

  • Cut out Dimension

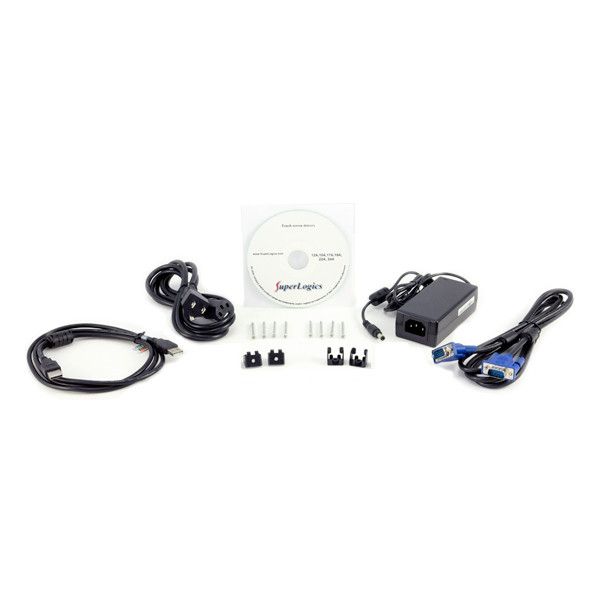

  • Accessories

Industrial Display



  • Display
  • Screen Size: 15"
  • Touch Type: Multi-Touch Projected Capacitive
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 1000



Related Products
Technical Specifications
Available Downloads
  • Display
  • Screen Size: 15"
  • Touch Type: Multi-Touch Projected Capacitive
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 1000
  • Display Area (H): 304mm
  • Display Area (V): 228mm
  • Aspect Ratio: 4 : 3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 700:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Mounting Options
  • Bezel Mounting Hardware Included
  • Suitable for Mounting in Cut-Out
  • Suggested Cut-Out Dimension (Width): 350.40"
  • Suggested Cut-Out Dimension (Height): 267.40"
  • Physical
  • Width: 14.90"
  • Height: 11.60"
  • Depth: 2.20"
  • Depth (Inches): 2.2
  • Shipping Weight: 30lbs
  • Environmental
  • MTBF: 50000hours
  • Operating Temperature: -25ºC to 80ºC (-13ºF to 176ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temperature: -30ºC to 80ºC (-22ºF to 176ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 18Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
