SL-LCD-15A-RTOUCH-2

15" LED Monitor with 5-Wire Resistive Touch Screen - 1024 x 768 Resolution, 450 NITS Brightness, IP65 / NEMA4 Front Panel, Black

15'' LCD Resistive Touch Panel - 1024x768, 350nits, IP65/NEMA4,  VGA/DVI/HDMI Inputs, Black Powder Coat Bezel
  • Front Angle

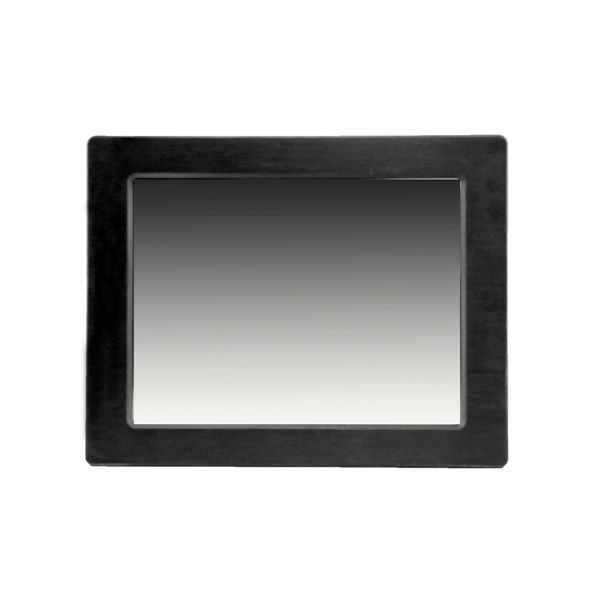

  • Front
  • Top

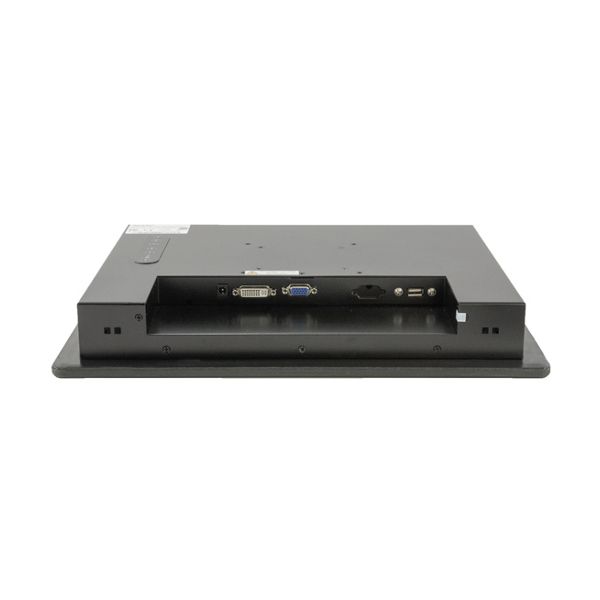

  • Bottom
  • Back

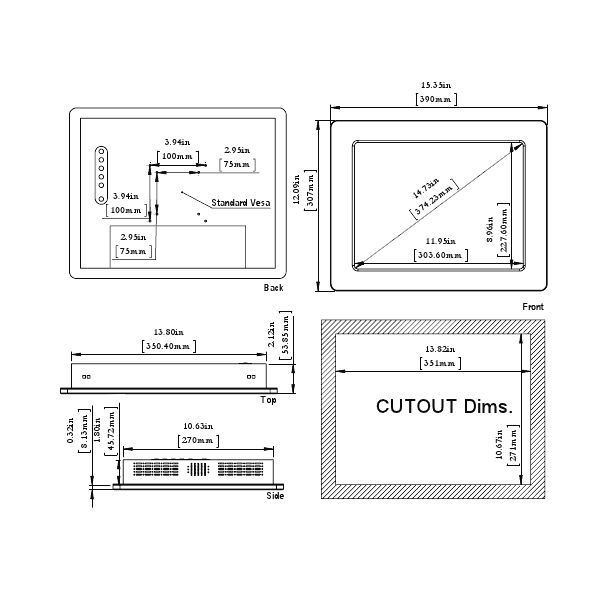

  • Dimensions
  • Included Accessories

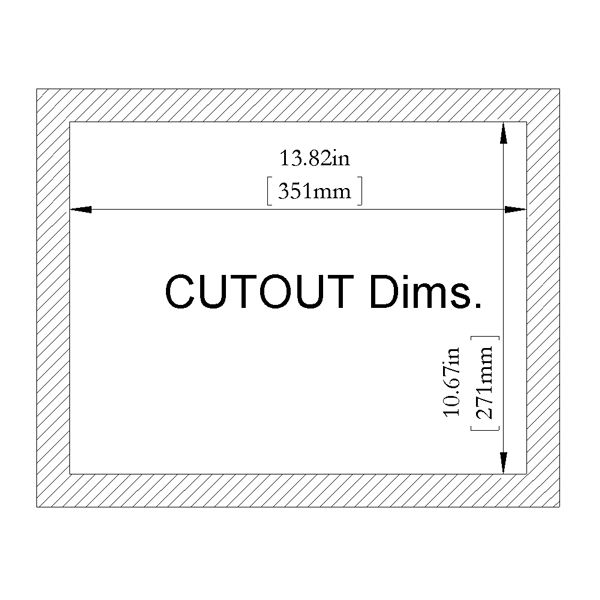

  • Cutout Dimensions
  • Wallmount Instructions

Industrial Display

  • Screen Size (inches): 15"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 4:3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 450
  • Ports: VGA Port In, DVI-I In, HDMI In
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
Related Products
Technical Specifications
Available Downloads
  • Display
  • Screen Size (inches): 15
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 4:3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 450
  • Display Area (H): 304.128mm
  • Display Area (V): 228.096mm
  • Aspect Ratio: 4:3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 800:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • HDMI In: 1
  • Mounting Options
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): 354mm
  • Suggested Cut-Out Dimension (Height): 270mm
  • Width: 15.35inches
  • Height: 12.09inches
  • Depth: 2.2inches
  • Depth (Inches): 2.2
  • Unboxed Weight: 11lbs
  • Shipping Weight: 30lbs
  • MTBF: 70000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 85C
  • Storage Temp (Low): -30C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Environmental
  • Power Consumption (on): 12Watts
  • Warranty
  • Warranty: 1 year
  • Other
