SL-LCD-15A-RTOUCH-SUN-1
15" LED Monitor with 5-Wire Resistive Touch Screen - 1024 x 768 Resolution, 1000 NITS Brightness, IP65 Front Panel, Black
Special Order Item, Delivery approximately 16 weeks.
10-12 Week Lead Time
Industrial Display
- Screen Size (inches): 15"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65
- Aspect Ratio: 4 : 3
- Native Display Resolution: 1024 x 768
- Brightness (nits): 1000
- Ports: VGA Port In, DVI-I In
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
- Display
- Screen Size (inches): 15
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65
- Aspect Ratio: 4 : 3
- Native Display Resolution: 1024 x 768
- Brightness (nits): 1000
- Screen Refresh Rate: 60Hz
- Display Area (H): 228.10mm
- Display Area (V): 304.13mm
- Aspect Ratio: 4 : 3
- DisplayColors: 16.2 M
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle(U) : 60
- Viewing Angle(D) : 60
- Viewing Angle(L) : 70
- Viewing Angle(R) : 70
- Connectivity
- VGA Port In: 1
- DVI-I In: 1
- Touchscreen Interface USB Port: 1
- Mounting Options
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

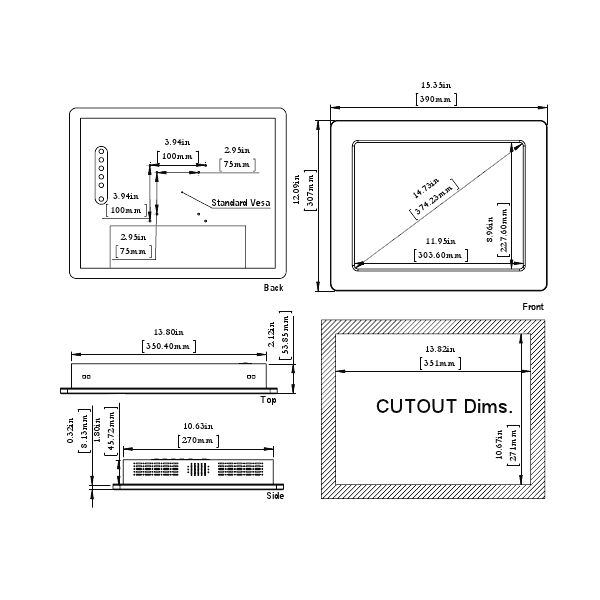

- Suggested Cut-Out Dimension (Width): Click Available Downloads Tab > Mechanical Drawings
- Suggested Cut-Out Dimension (Height): Click Available Downloads Tab > Mechanical Drawings
- Physical
- Width: Click Available Downloads Tab > Mechanical Drawings
- Height: Click Available Downloads Tab > Mechanical Drawings
- Depth: Click Available Downloads Tab > Mechanical Drawings
- Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
- Unboxed Weight: 11lbs
- Shipping Weight: 30lbs
- Environmental
- MTBF: 50000hours
- Maximum Operating Temperature: 50C
- Low Operating Temp: 00
- High Humidity: 90%
- Low Humidity: 8%
- Storage Temp (High): 60C
- Storage Temp (Low): 00
- Storage Humidity (High): 90%
- Storage Humidity (Low): 8%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 18Watts
- Compliance of Component
- CE
- RoHS
- FCC
- CB
- TCO
- CCC
- Warranty
- Warranty: 1 year
- Other
- Features:
Industrial Display
- Screen Size: 15"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65
- Color: Black
- Native Display Resolution: 1024 x 768
- Brightness (nits): 1000
