SL-LCD-15AW-RTOUCH-1 This item is no longer available.

Name: SL-LCD-15AW-RTOUCH-1
SKU: SL-LCD-15AW-RTOUCH-1
Price: 490.00 USD

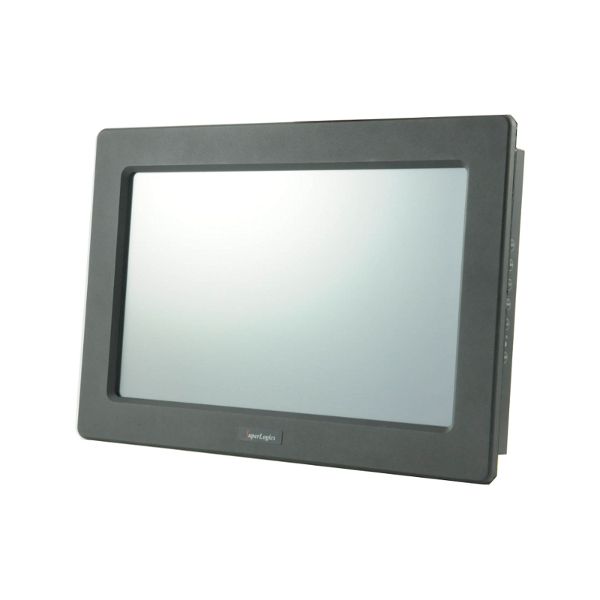

15.6" TFT, Active Matrix (CCFL) Monitor with 5-Wire Resistive Touch Screen - 1366 x 768 Resolution, 300 NITS Brightness, IP65 / NEMA4 Front Panel, Black

A newer version of this item is available: SL-LCD-15AWHD-RTOUCH-2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Industrial Display

Screen Size (inches): 15.6"
Touch Type: 5-Wire Resistive
Front Panel Rating: IP65 / NEMA4
Aspect Ratio: 16:9
Native Display Resolution: 1366 x 768
Brightness (nits): 300

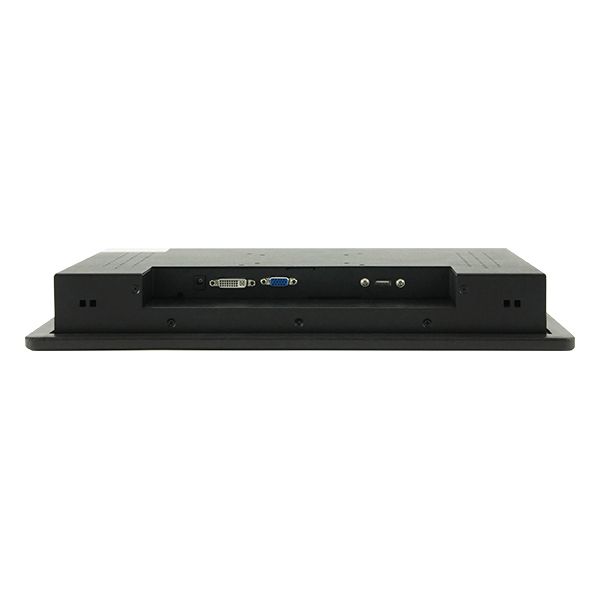

Ports: VGA Port In, DVI-I In
Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

Related Products

Technical Specifications

Display
Screen Size (inches): 15.6
Touch Type: 5-Wire Resistive
Front Panel Rating: IP65 / NEMA4
Aspect Ratio: 16:9
Native Display Resolution: 1366 x 768
Brightness (nits): 300
Display Area (H): 344.16mm
Display Area (V): 193.59mm
Aspect Ratio: 16:9
DisplayColors: 16.2 M
Contrast Ratio: 400:1
Backlight: TFT, Active Matrix (CCFL)
Viewing Angle(U) : 70
Viewing Angle(D) : 70
Viewing Angle(L) : 60
Viewing Angle(R) : 60
Connectivity
VGA Port In: 1
DVI-I In: 1
Mounting Options
Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
Suggested Cut-Out Dimension (Width): 382mm
Suggested Cut-Out Dimension (Height): 231mm
Physical
Width: 271.70mm
Height: 422.40mm
Depth: 56.70mm
Depth (Inches): 2.2
Unboxed Weight: 10lbs
Shipping Weight: 30lbs
Environmental
MTBF: 30000hours
Maximum Operating Temperature: 50C
High Humidity: 90%
Low Humidity: 8%
Storage Temp (High): 60C
Storage Humidity (High): 90%
Storage Humidity (Low): 8%
Power
Power Supply: AC 100~240V/12V DC
Power Consumption (on): 16Watts
Compliance of Component
CE
RoHS
FCC
Warranty
Warranty: 1 year
Other
Features:
Industrial Display
- Screen Size: 15.6"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 1366 x 768
- Brightness (nits): 300

Available Downloads

Resistive / Infrared Touchscreen Driver for Windows

Windows 10 Windows 8.1 Windows 8 Windows Embedded 8 Embedded 8.1 Industry Embedded 8.1 Pro Embedded 8 Standard Windows 7 Windows Embedded 7 Embedded Enterprise 7 Embedded Standard 7 Embedded POSReady 7 Windows XP Windows Embedded POSReady 2009 Windows 2000

SuperLogics LCD-15AW 3D Drawing - MONITOR ONLY (File Type: STEP)
