SL-LCD-15AWHD-RTOUCH-1

15.6" LCD (Wide 16:9 HD 1920 x 1080 Format) Resistive Touch Panel - 270nits, IP65/NEMA4, Black

15.6

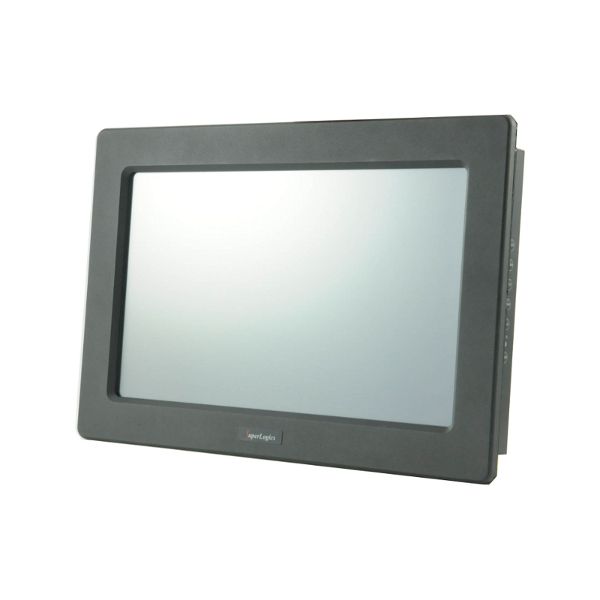

  • Front Angle

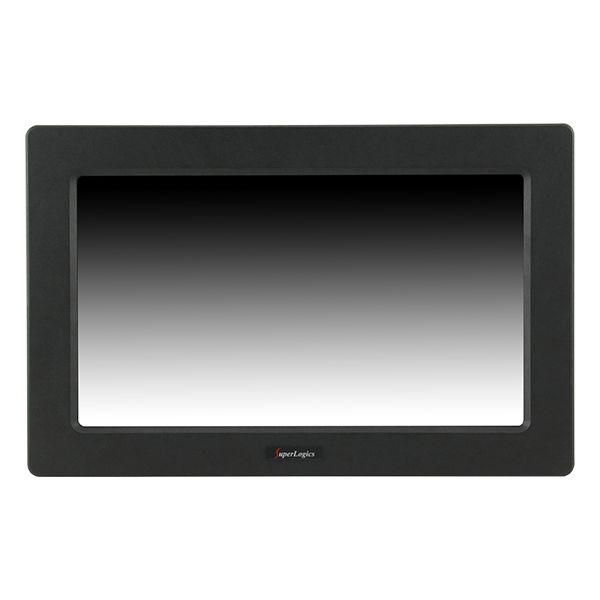

  • Front

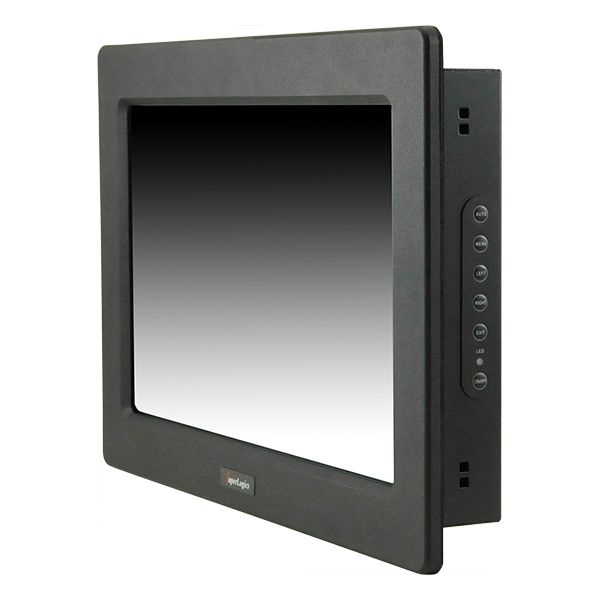

  • Side

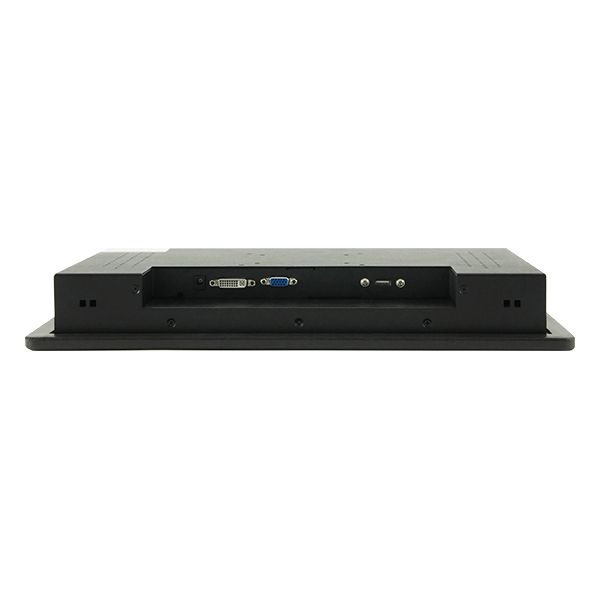

  • Bottom

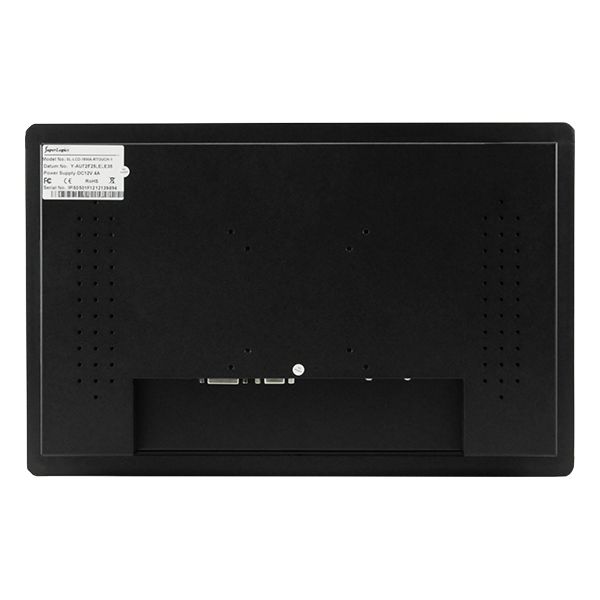

  • Back
  • Included Accessories
  • Dimensions
  • Wallmount Instructions

Industrial Display

  • Screen Size: 15.6"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 250
Related Products
Technical Specifications
  • Display
  • Screen Size: 15.6"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 250
  • Display Area (H): 344mm
  • Display Area (V): 193mm
  • Aspect Ratio: 16:9
  • DisplayColors: 16.2 M
  • Contrast Ratio: 400:1
  • Backlight: LED
  • Viewing Angle(U) : 70
  • Viewing Angle(D) : 70
  • Viewing Angle(L) : 60
  • Viewing Angle(R) : 60
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Mounting Options
  • Bezel Mounting Hardware Included
  • Suitable for Mounting in Cut-Out
  • Suggested Cut-Out Dimension (Width): 382mm
  • Suggested Cut-Out Dimension (Height): 231mm
  • Physical
  • Width: 271mm
  • Height: 422mm
  • Depth: 56mm
  • Depth (Inches): 2.2
  • Shipping Weight: 30lbs
  • Environmental
  • MTBF: 30000hours
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temperature: 0ºC to 60ºC (32ºF to 140ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 13Watts
  • Compliance
  • CE
  • RoHS
  • FCC
  • Other Features
  • Warranty: 1 year
