SL-LCD-15N-RTOUCH-KIT

15" TFT, Active Matrix (CCFL) Monitor with 5-Wire Resistive Touch Screen - 1024 x 768 Resolution, 200 NITS Brightness, Black

15

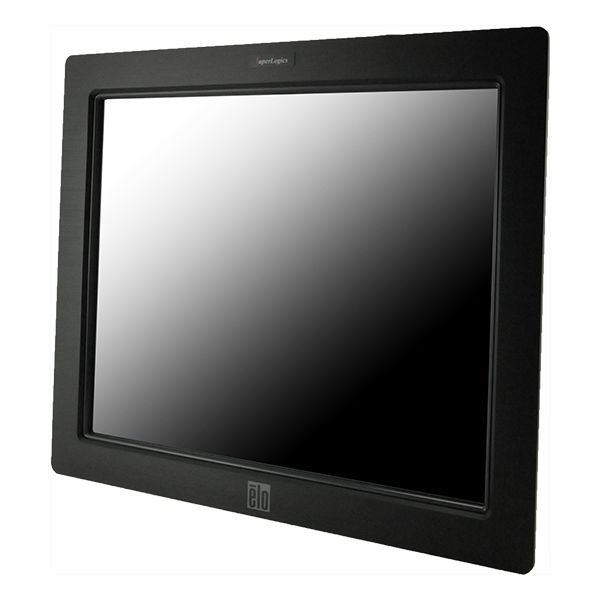

  • Front Angle

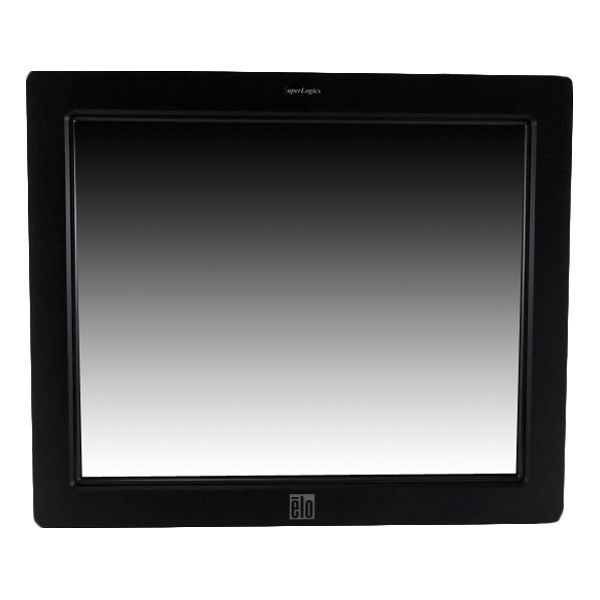

  • Front

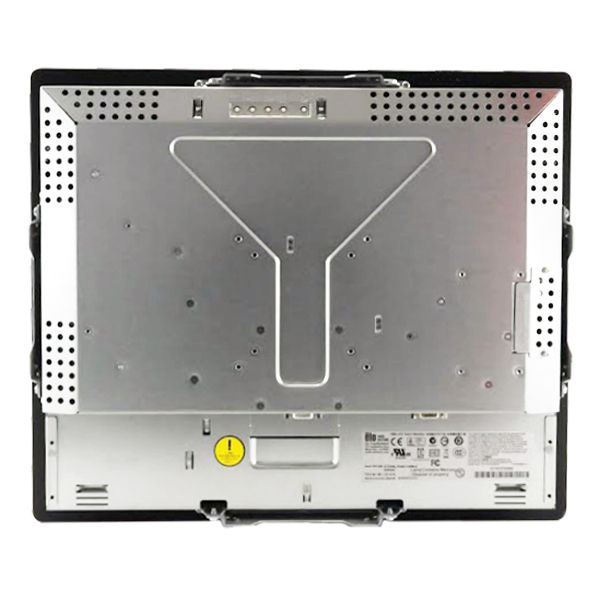

  • Back
  • I/O

Industrial Display

  • Screen Size (inches): 15"
  • Touch Type: 5-Wire Resistive
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 200
  • Ports: VGA Port In
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Other options sold separately
Related Products
Technical Specifications
  • Display
  • Screen Size (inches): 15
  • Touch Type: 5-Wire Resistive
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 200
  • Display Area (H): 12inches
  • Display Area (V): 9inches
  • Aspect Ratio: 4 : 3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 500:1
  • Backlight: TFT, Active Matrix (CCFL)
  • Viewing Angle(U) : 55
  • Viewing Angle(D) : 55
  • Viewing Angle(L) : 70
  • Viewing Angle(R) : 70
  • Connectivity
  • VGA Port In: 0
  • Mounting Options
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Other options sold separately
  • Suggested Cut-Out Dimension (Width): 12.4inches
  • Suggested Cut-Out Dimension (Height): 9.41inches
  • Width: 13.2inches
  • Height: 10.4inches
  • Depth: 1.6inches
  • Depth (Inches): 1.6
  • Unboxed Weight: 6.6lbs
  • Shipping Weight: 13lbs
  • MTBF: 30000hours
  • Maximum Operating Temperature: 40C
  • High Humidity: 80%
  • Low Humidity: 20%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 10%
  • Power
  • Power Supply: Accepts 12VDC, 100-240VAC/12VDC 5A 60W External Power Adapter included
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Environmental
  • Power Consumption (on): 30Watts
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:
    • Screen Size: 15" Open Frame
    • Touch Type: 5-wire Resistive
    • Native Display Resolution: 1024 x 768
    • Brightness (nits): 230
    • Connection: USB/Serial
    • Power Supply Sold Separately (See Related Product)
