SL-LCD-15N-RTOUCH-OF

15" LCD Resistive Touch Panel - ELO 1024x768, 200nits, Black - Open Frame

15

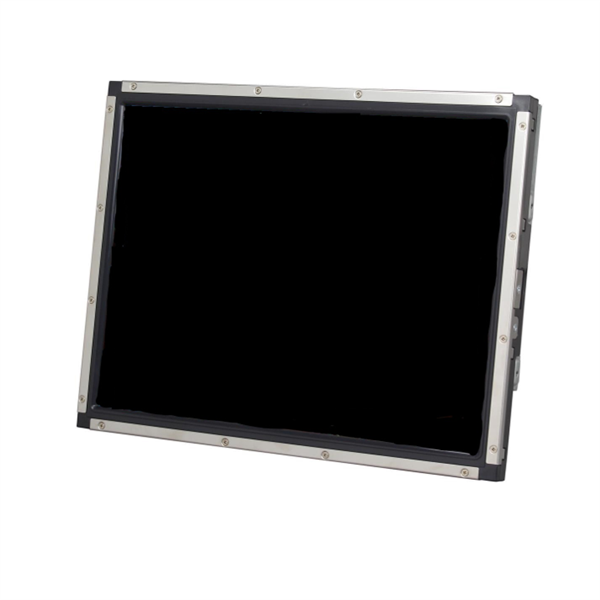

  • Front Angle

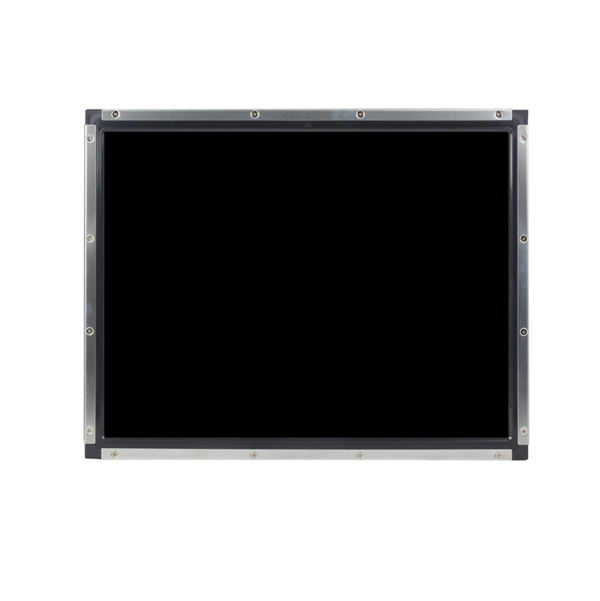

  • Front

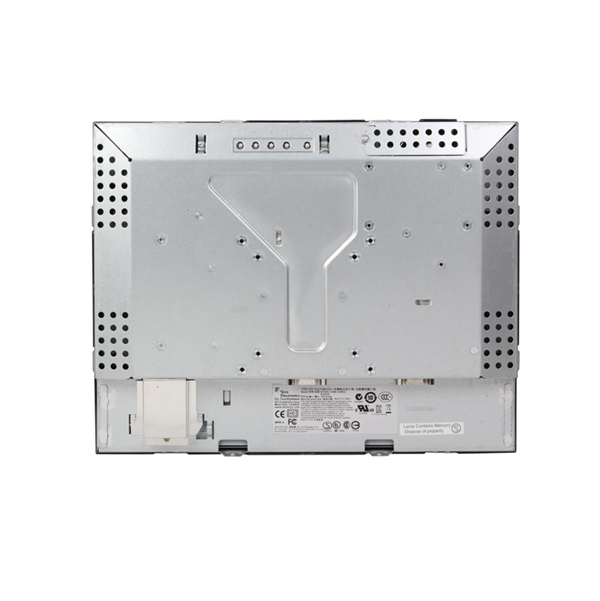

  • Back

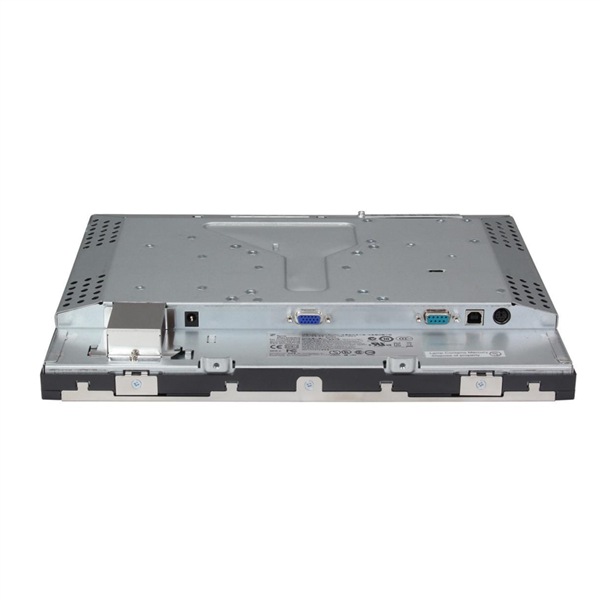

  • I/O

Industrial Display

  • Screen Size: 15" Open Frame
  • Touch Type: 5-wire Resistive
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 230
  • Connection: USB/Serial
  • Power Supply Included

Related Products
Technical Specifications

Display Specifications

  • Display
  • Screen Size: 15"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: Not Rated
  • Color: Black
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 200
  • Display Area (H): 12"
  • Display Area (V): 9"
  • Aspect Ratio: 4 : 3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 500:1
  • Backlight: TFT, Active Matrix (CCFL)
  • Viewing Angle(U) : 55
  • Viewing Angle(D) : 55
  • Viewing Angle(L) : 70
  • Viewing Angle(R) : 70
  • Connectivity
  • VGA Port In: 1
  • Mounting Options
  • VESA 75mm x 75mm
  • VESA 100mm x 100mm
  • Suitable for Mounting in Cut-Out: yes with optional hardware
  • Suggested Cut-Out Dimension (Width): 12.40"
  • Suggested Cut-Out Dimension (Height): 9.41"
  • Physical
  • Width: 13.20"
  • Height: 10.40"
  • Depth: 1.60"
  • Depth (Inches): 1.6
  • Shipping Weight: 13lbs
  • Environmental
  • MTBF: 30000hours
  • Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)
  • High Humidity: 80%
  • Low Humidity: 20%
  • Storage Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 10%
  • Power
  • Power Supply: Accepts 12VDC, 100-240VAC/12VDC 5A 60W External Power Adapter included
  • Power Consumption (on): 30Watts
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
