SL-LCD-17-CTOUCH This item is no longer available.

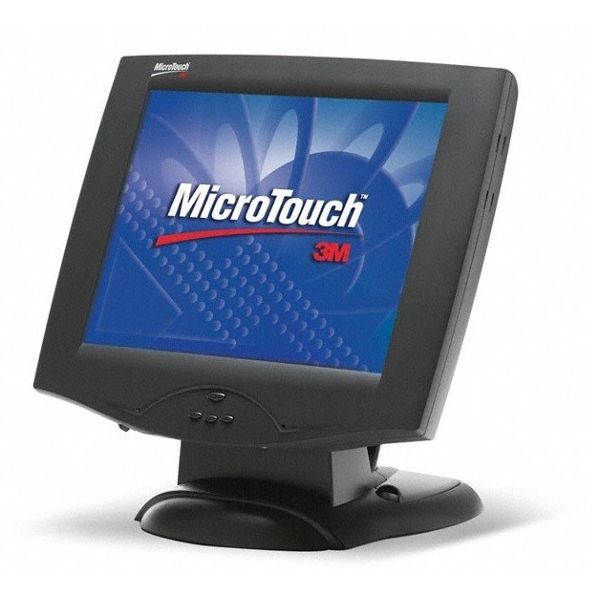

17" TFT, Active Matrix (CCFL) Monitor with Capacitive Touch Screen - 1280 x 1024 Resolution, 215 NITS Brightness, Black

Industrial Display

  • Screen Size (inches): 17"
  • Touch Type: Capacitive
  • Aspect Ratio: 5 : 3
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 215
  • Ports: VGA Port In
  • Mounting Options: VESA 75mm x 75mm, Other options sold separately
  • Display
  • Screen Size (inches): 17
  • Touch Type: Capacitive
  • Aspect Ratio: 5 : 3
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 215
  • Display Area (H):
  • Display Area (V):
  • Aspect Ratio: 5 : 3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 800:1
  • Backlight: TFT, Active Matrix (CCFL)
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • Mounting Options
  • Mounting Options: VESA 75mm x 75mm, Other options sold separately
  • Suggested Cut-Out Dimension (Width):
  • Suggested Cut-Out Dimension (Height):
  • Physical
  • Width: 16.10"
  • Height: 15.70"
  • Depth: 10.20"
  • Unboxed Weight: 16.31lbs
  • Shipping Weight: 25lbs
  • Environmental
  • MTBF: 40000hours
  • Maximum Operating Temperature: 104F
  • Low Operating Temp: 32F
  • High Humidity: 80%
  • Low Humidity: 00
  • Storage Temp (High): 104F
  • Storage Temp (Low): 32F
  • Storage Humidity (High): 80%
  • Storage Humidity (Low): 00
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 40Watts
  • Compliance of Component
  • UL
  • RoHS
  • FCC
  • CCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    GENERAL

    17" Touch Monitor

    Dimensions (WxDxH) 15.9 in x 9.7 in x 16.3 in

    Display Type LCD monitor / TFT active matrix

    Native Resolution 1280 x 1024 at 60 Hz

    Contrast Ratio 800:1

    Color Support 16.2 million colors

    Controls & Adjustments Brightness, contrast, H/V position, color balance, phase, clock

    Horizontal Viewing Angle +80 / -80 Vertical Viewing Angle +80 / -80 Pixel Pitch 0.264 mm

    Brightness 270 cd/m²
