SL-LCD-17-RTouch-SSB

17" TFT, Active Matrix (CCFL) Monitor with 5-Wire Resistive Touch Screen - 1280 x 1024 Resolution, 250 NITS Brightness, IP66 Front Panel, Stainless Steel

Hazardous Location: UL Listed for Class I, II, III, Division 2, Groups A, B, C, D, F, G; T-Code T4

Industrial Display

  • Screen Size (inches): 17"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP66
  • Aspect Ratio: 5 : 4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 250
  • Ports: VGA Port In, DVI-D In
  • Mounting Options: VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
  • Display
  • Screen Size (inches): 17
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP66
  • Aspect Ratio: 5 : 4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 250
  • Display Area (H): 338mm
  • Display Area (V): 270mm
  • Aspect Ratio: 5 : 4
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: TFT, Active Matrix (CCFL)
  • Viewing Angle(U) : 160°
  • Viewing Angle(D) : 160°
  • Viewing Angle(L) : 170°
  • Viewing Angle(R) : 170°
  • Connectivity
  • VGA Port In: 1
  • DVI-D In: 1
  • Mounting Options
  • Mounting Options: VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately

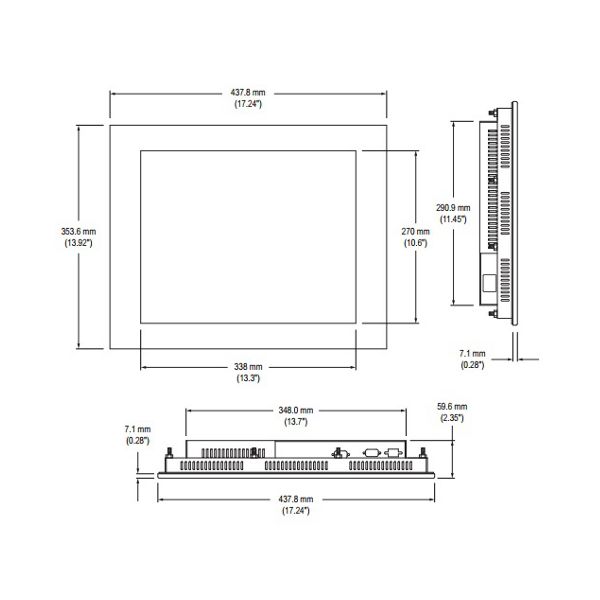

  • Suggested Cut-Out Dimension (Width): 406.90mm
  • Suggested Cut-Out Dimension (Height): 323.10mm
  • Physical
  • Width: 437.80mm
  • Height: 353.60mm
  • Depth: 54.10mm
  • Depth (Inches): 2.15
  • Unboxed Weight: 14lbs
  • Shipping Weight: 35lbs
  • Environmental
  • MTBF: 60000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 20%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 20%
  • Power
  • Power Supply: Accepts 100-240 VAC, 50/60 Hz directly
  • Power Consumption (on): 21Watts
  • Compliance of Component
  • CE
  • FCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Industrial Display

    • Screen Size: 17"
    • Touch Type: 5-wire single-touch resistive system with mouse emulation
    • Front Panel Rating: IP66
    • Bezel Material: Stainless Steel
    • Native Display Resolution: 1280 x 1024
    • Brightness (nits): 250
    • Hazardous Location: UL Listed for Class I, II, III, Division 2, Groups A, B, C, D, F, G; T-Code T4
