SL-LCD-17A-NT-1

17'' LCD Non-Touch Panel - 1280x1024, 300nits, IP65, Black

17'' LCD Non-Touch Panel - 1280x1024, 300nits, IP65, Black

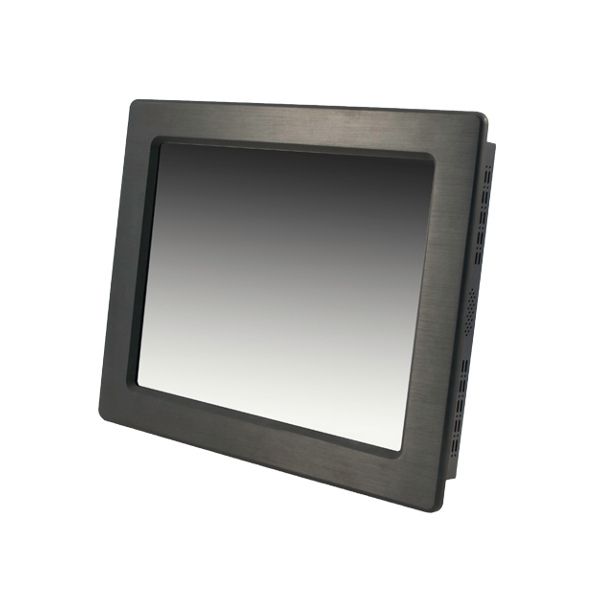

  • Front Angle

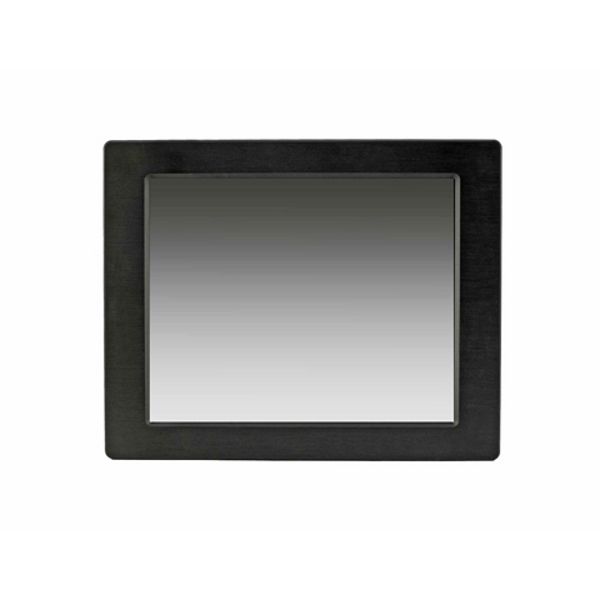

  • Front

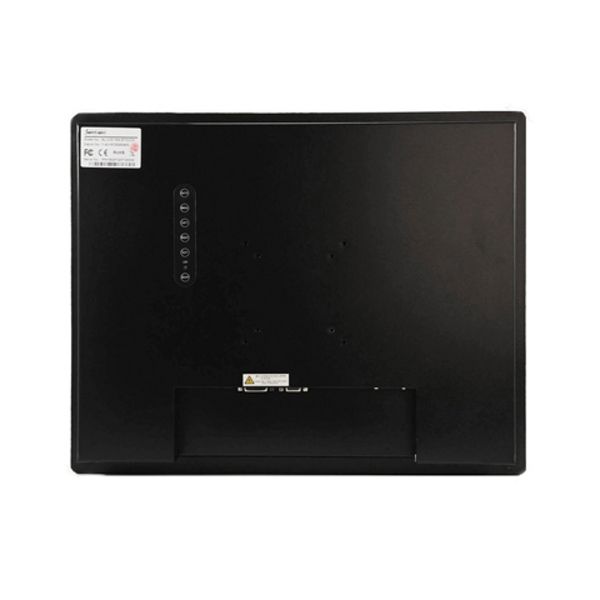

  • Back

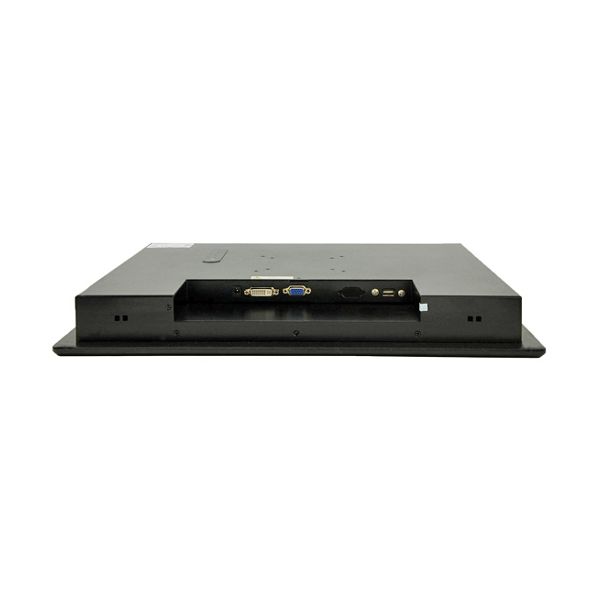

  • Bottom

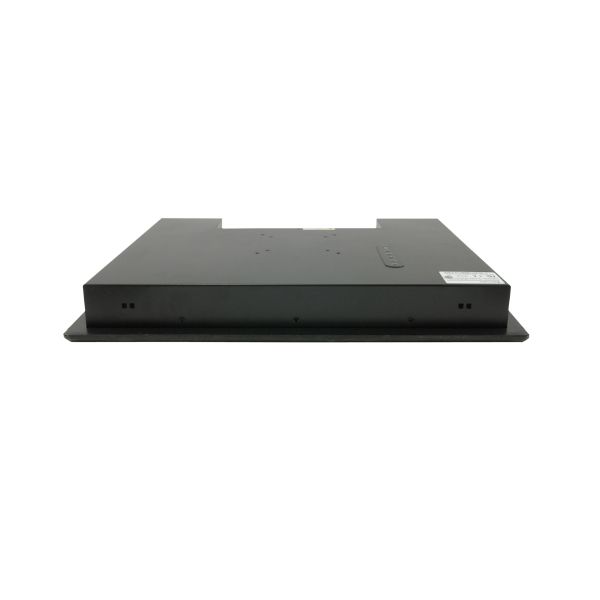

  • Top

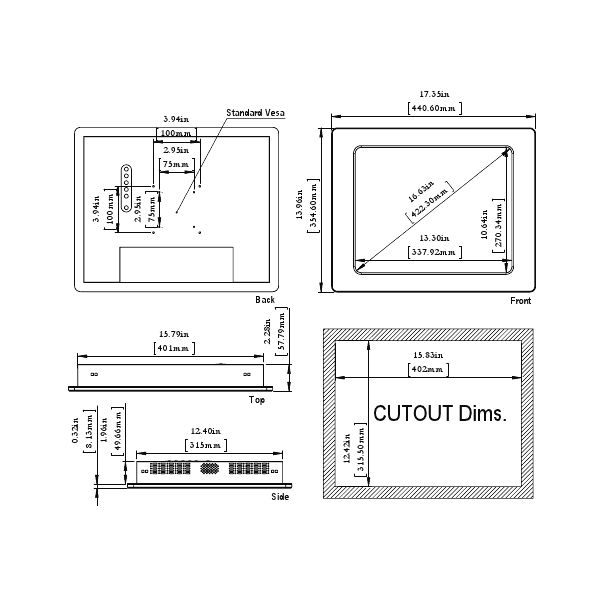

  • Dimension

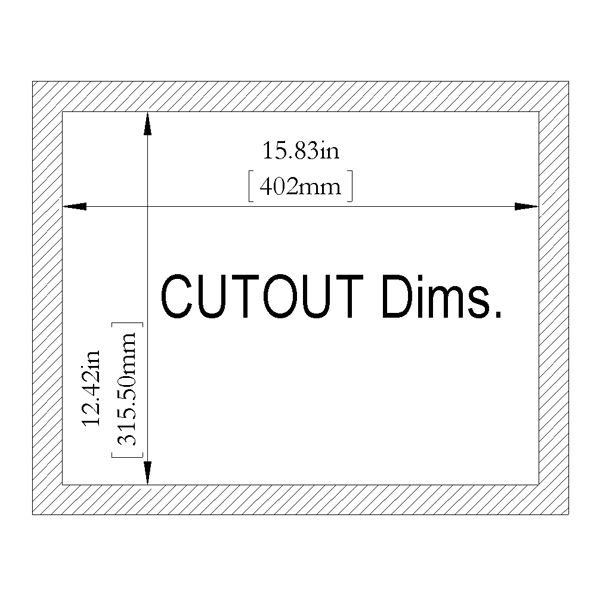

  • Cut out dimension
  • Included Accessories
  • Display
  • Screen Size: 17"
  • Touch Type: Multi-Touch Projected Capacitive
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 300
Related Products
Technical Specifications
Available Downloads
  • Display
  • Screen Size: 17"
  • Touch Type: None
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 250
  • Display Area (H): 270mm
  • Display Area (V): 337mm
  • Aspect Ratio: 5 : 4
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Mounting Options
  • Bezel Mounting Hardware Included
  • Suitable for Mounting in Cut-Out
  • Suggested Cut-Out Dimension (Width): 401mm
  • Suggested Cut-Out Dimension (Height): 315mm
  • Physical
  • Width: 440mm
  • Height: 354mm
  • Depth: 56mm
  • Depth (Inches): 2.24
  • Shipping Weight: 35lbs
  • Environmental
  • MTBF: 30000hours
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temperature: 0ºC to 60ºC (32ºF to 140ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 13Watts
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Warranty: 1 year
