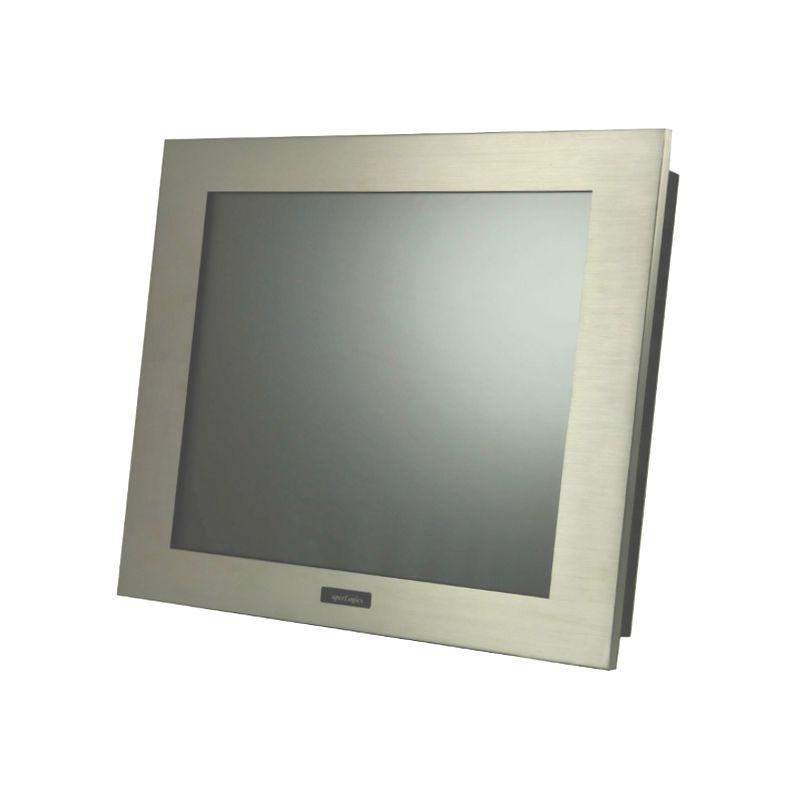

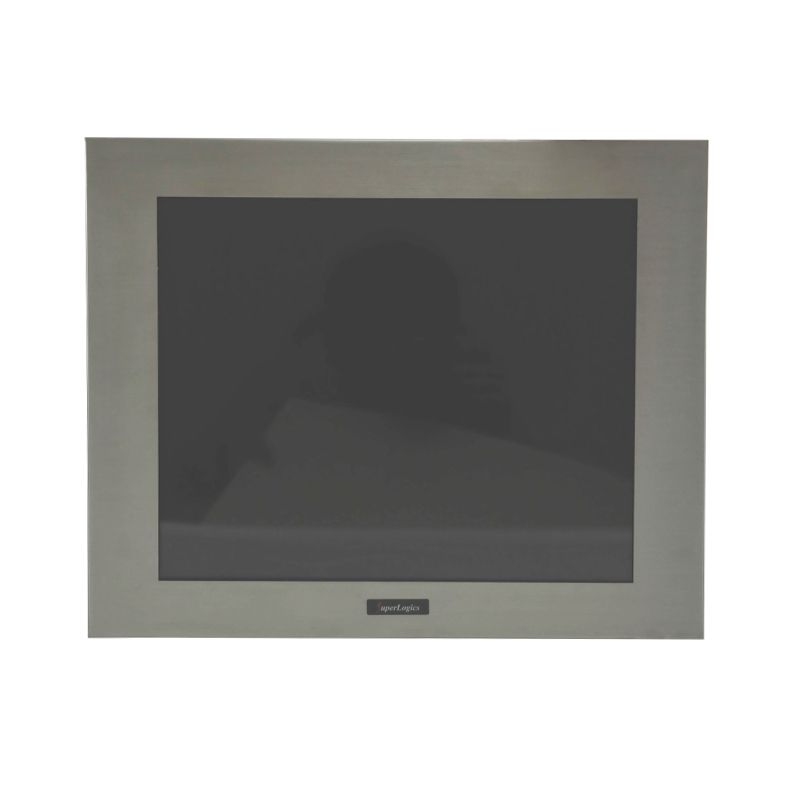

SL-LCD-17A-PCAPTOUCH-SSB-2

17" LED Monitor with Multi-Touch Projected Capacitive Touch Screen - 1280 x 1024 Resolution, 250 NITS Brightness, NEMA 4X / IP66 Front Panel, Stainless Steel

Industrial Display

  • Screen Size (inches): 17"
  • Touch Type: Multi-Touch Projected Capacitive
  • Front Panel Rating: NEMA 4X / IP66
  • Aspect Ratio: 5 : 4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 250
  • Ports: VGA Port In, DVI-I In, HDMI In
  • Display
  • Screen Size (inches): 17
  • Touch Type: Multi-Touch Projected Capacitive
  • Front Panel Rating: NEMA 4X / IP66
  • Aspect Ratio: 5 : 4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 250
  • Screen Refresh Rate: 60Hz
  • Display Area (H): 337.92mm
  • Display Area (V): 270.33mm
  • Aspect Ratio: 5 : 4
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • HDMI In: 1
  • Mounting Options
  • Suggested Cut-Out Dimension (Width): Click Technical Specifications Tab > Mechanical Drawings.
  • Suggested Cut-Out Dimension (Height): Click Technical Specifications Tab > Mechanical Drawings.
  • Physical
  • Width: Click Technical Specifications Tab > Mechanical Drawings.
  • Height: Click Technical Specifications Tab > Mechanical Drawings.
  • Depth: Click Technical Specifications Tab > Mechanical Drawings.
  • Depth (Inches): Click Technical Specifications Tab > Mechanical Drawings.
  • Unboxed Weight: 13lbs
  • Shipping Weight: 28lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 13Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • CCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Expected Availability May 28

    • Display
    • Screen Size: 17"
    • Touch Type: Multi-Touch Projected Capacitive
    • Front Panel Rating: NEMA 4X / IP66
    • Color: Stainless Steel
    • Native Display Resolution: 1280 x 1024
    • Brightness (nits): 250
