SL-LCD-17A-PCTTOUCH-SUN-1-WV

17" TFT, Active Matrix (CCFL) Monitor with Multi-Touch Projected Capacitive Touch Screen - 1280 x 1024 Resolution, 1150 NITS Brightness, IP65 / NEMA4 Front Panel, Black

A similar version of this item is available with better faster lead time: SL-LCD-17A-PCTTOUCH-SUN-1
Part Delay: ETA September 1, 2022

Industrial Display

  • Screen Size (inches): 17"
  • Touch Type: Multi-Touch Projected Capacitive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 5 : 4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 1150

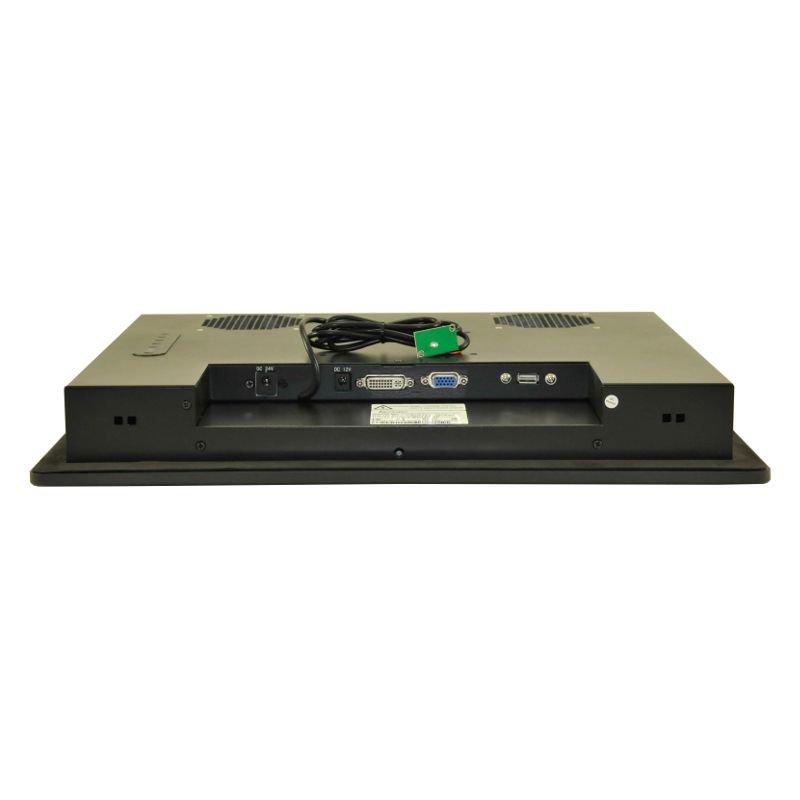

  • Ports: VGA Port In, DVI-I In
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Display
  • Screen Size (inches): 17
  • Touch Type: Multi-Touch Projected Capacitive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 5 : 4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 1150
  • Screen Refresh Rate: 60Hz
  • Display Area (H): 337.90mm
  • Display Area (V): 270.30mm
  • Aspect Ratio: 5 : 4
  • DisplayColors: 16.7 M
  • Contrast Ratio: 800:1
  • Backlight: TFT, Active Matrix (CCFL)
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Touchscreen Interface USB Port: 1
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

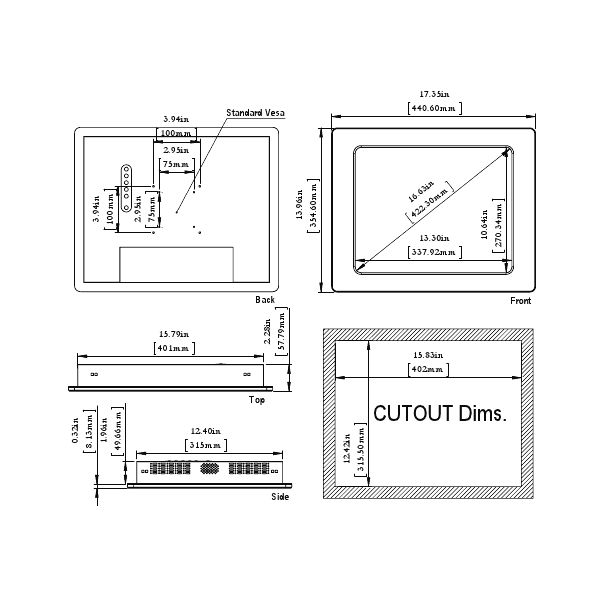

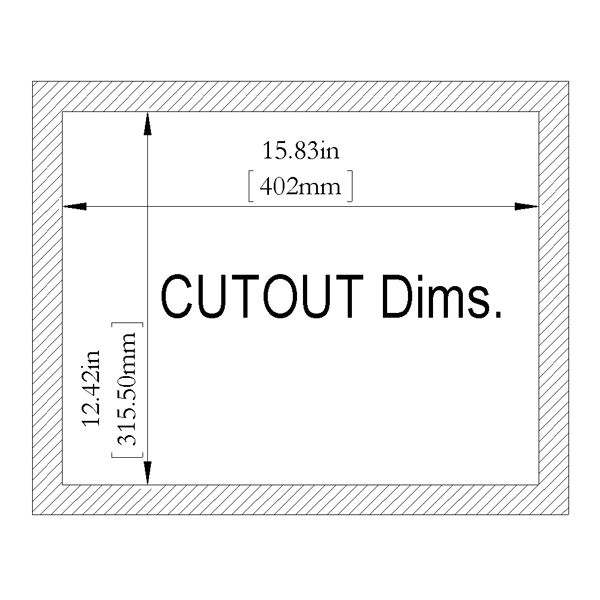

  • Suggested Cut-Out Dimension (Width): Click Available Downloads Tab > Mechanical Drawings
  • Suggested Cut-Out Dimension (Height): Click Available Downloads Tab > Mechanical Drawings
  • Physical
  • Width: Click Available Downloads Tab > Mechanical Drawings
  • Height: Click Available Downloads Tab > Mechanical Drawings
  • Depth: Click Available Downloads Tab > Mechanical Drawings
  • Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
  • Unboxed Weight: 12lbs
  • Shipping Weight: 35lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • Low Operating Temp: 00
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Temp (Low): 00
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: 9~36V DC
  • Power Consumption (on): 20Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • CCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Industrial Display

    • Screen Size: 17"
    • Touch Type: Multi-Touch Projected Capacitive
    • Front Panel Rating: IP65 / NEMA4
    • Color: Black
    • Native Display Resolution: 1280 x 1024
    • Brightness (nits): 1150 (Ultra Bright)

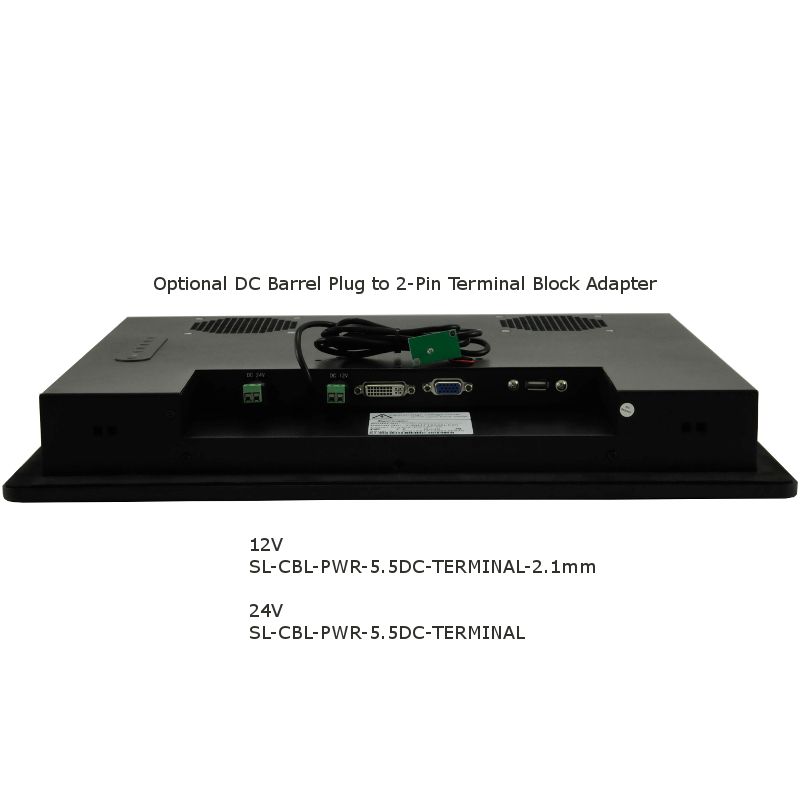

    • Wide Voltage Input: 12 - 36VDC, 12VDC power adapter included
