SL-LCD-17A-RTOUCH-SUN This item is no longer available.

17" LCD Resistive Touch Panel - 1280x1024, 1000nits, IP65/NEMA4, Black - Ultra-Bright

A newer version of this item is available: SL-LCD-17A-PCTTOUCH-SUN-1
17

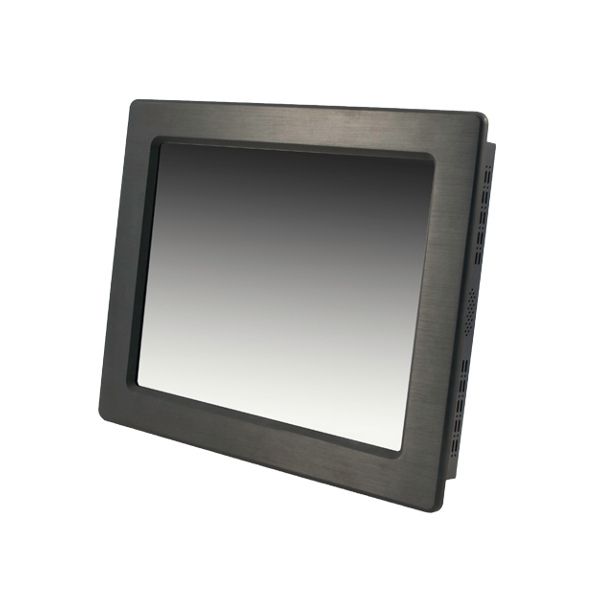

  • Front Angle

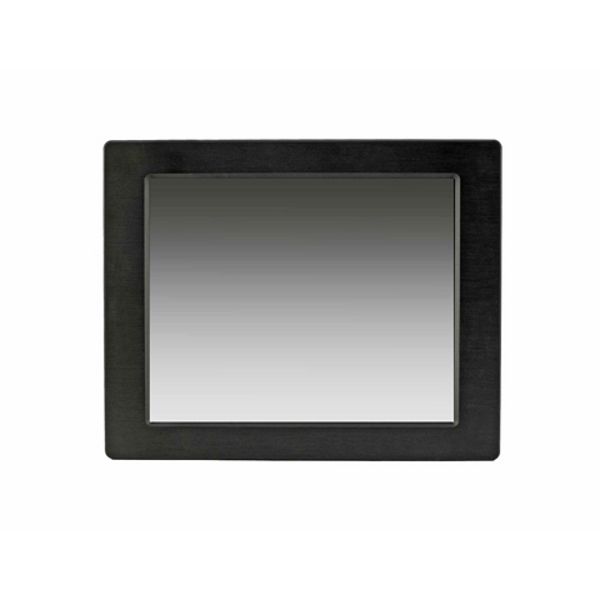

  • Front

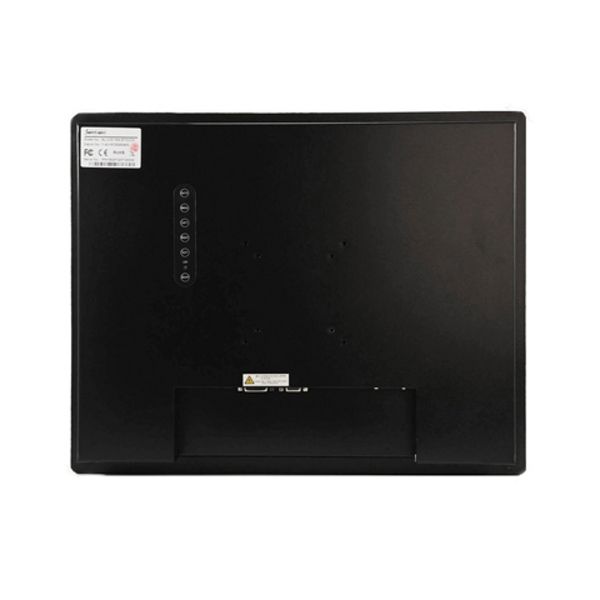

  • Back Straight

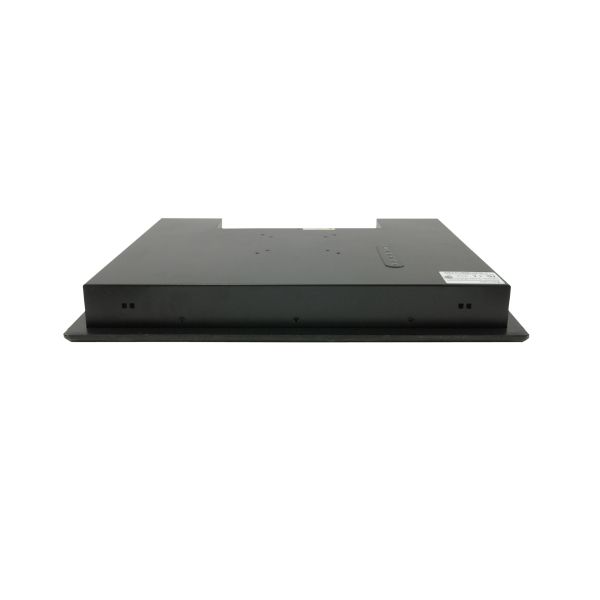

  • Back Top

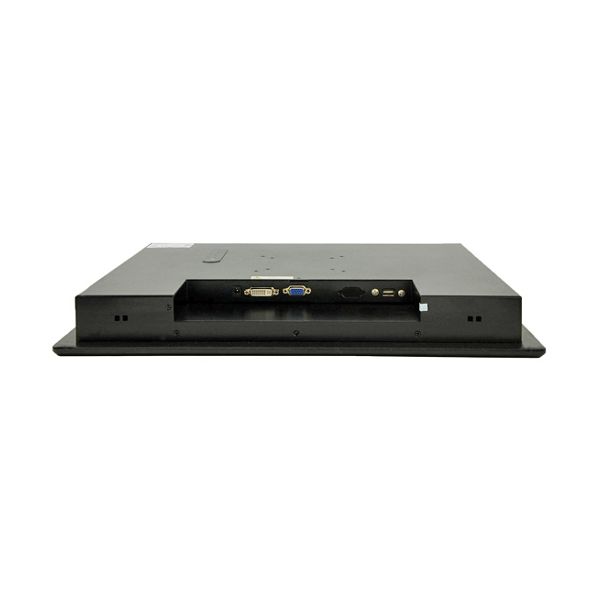

  • Back I/O

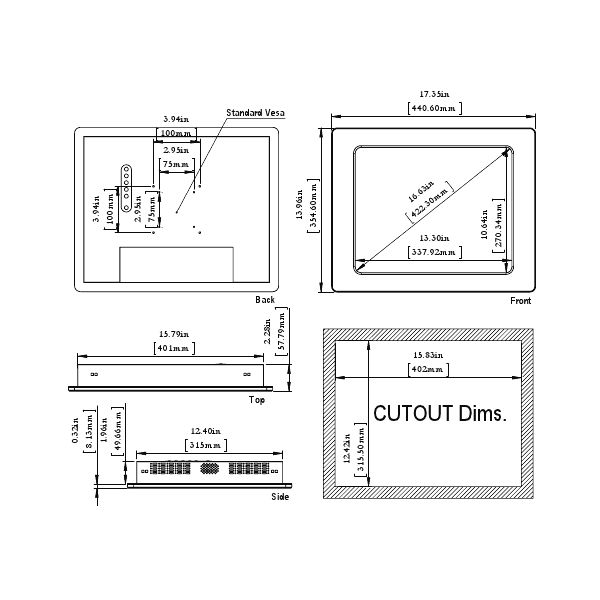

  • Dimensions
  • Wallmount Instructions

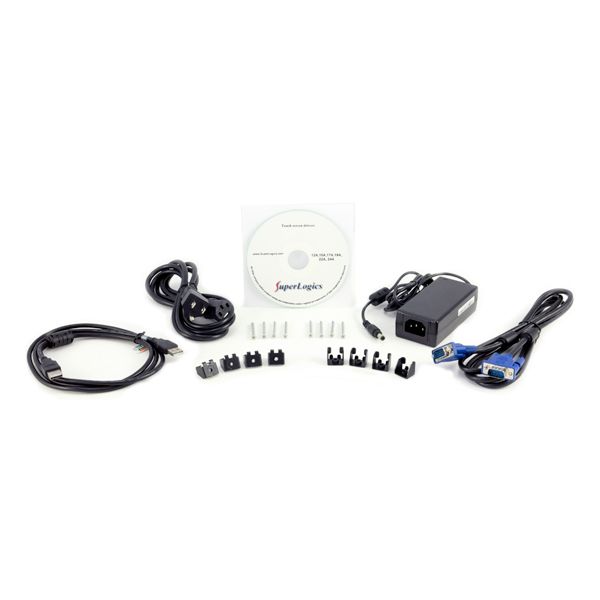

  • Included Accessories

Industrial Display

  • Screen Size: 17"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 800
Technical Specifications
Available Downloads
  • Display
  • Screen Size: 17"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 800
  • Display Area (H): 337mm
  • Display Area (V): 270mm
  • Aspect Ratio: 5 : 4
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Mounting Options
  • Bezel Mounting Hardware Included
  • Suitable for Mounting in Cut-Out
  • Suggested Cut-Out Dimension (Width): 401mm
  • Suggested Cut-Out Dimension (Height): 315mm
  • Physical
  • Width: 17.30"
  • Height: 14"
  • Depth: 2.20"
  • Depth (Inches): 2.2
  • Shipping Weight: 35lbs
  • Environmental
  • MTBF: 30000hours
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temperature: 0ºC to 60ºC (32ºF to 140ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 16Watts
  • Compliance
  • CE
  • RoHS
  • FCC
  • Other Features
  • Warranty: 1 year
