SL-LCD-17A-SAWTOUCH-SUN-1 This item is no longer available.

17" LED Monitor with Surface Acoustic Wave Touch Screen - 1280 x 1024 Resolution, 1200 NITS Brightness, IP65 / NEMA4 Front Panel, Black

A newer version of this item is available: SL-LCD-17A-PCTTOUCH-SUN-1

Industrial Display

  • Screen Size (inches): 17"
  • Touch Type: Surface Acoustic Wave
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 5 : 4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 1200

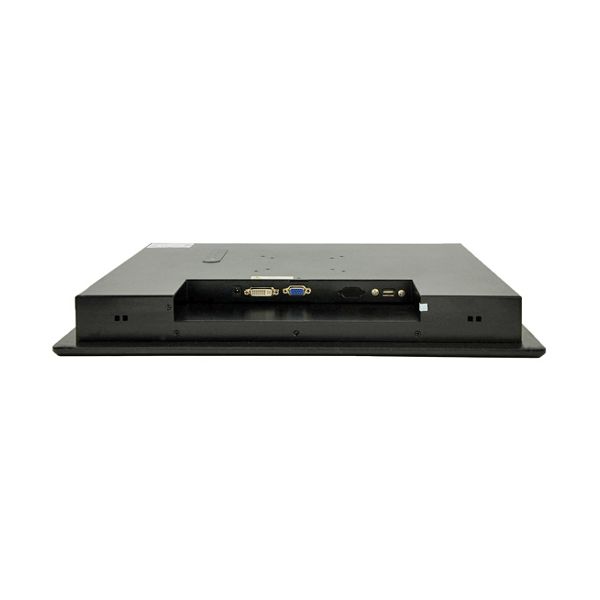

  • Ports: VGA Port In, DVI-I In
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Display
  • Screen Size (inches): 17
  • Touch Type: Surface Acoustic Wave
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 5 : 4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 1200
  • Display Area (H): 337.29mm
  • Display Area (V): 270.34mm
  • Aspect Ratio: 5 : 4
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

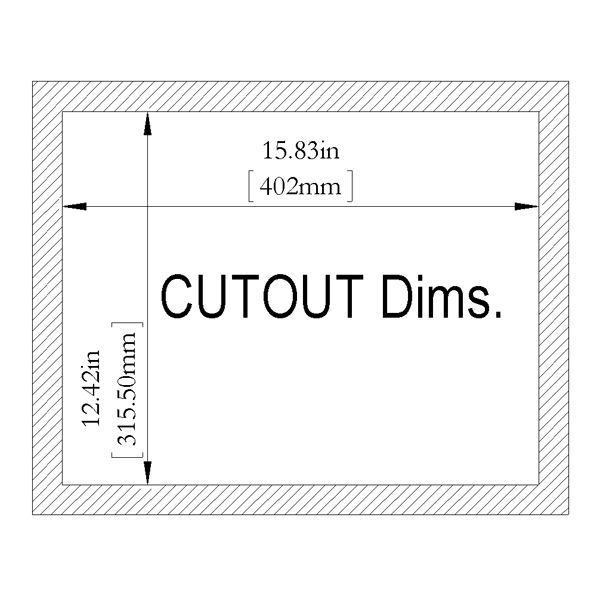

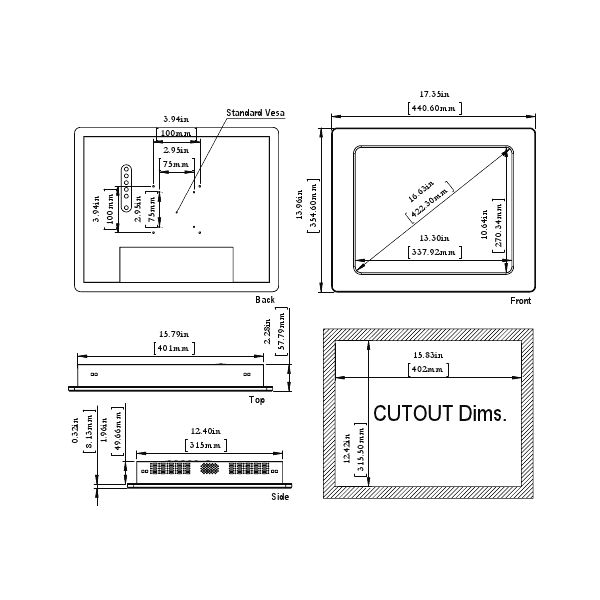

  • Suggested Cut-Out Dimension (Width): 401mm
  • Suggested Cut-Out Dimension (Height): 315mm
  • Physical
  • Width: 17.30"
  • Height: 14"
  • Depth: 2.20"
  • Unboxed Weight: 12lbs
  • Shipping Weight: 35lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 20Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Warranty
  • Warranty: 1 year
