SL-LCD-17N-RTOUCH-E177920-RACK This item is no longer available.

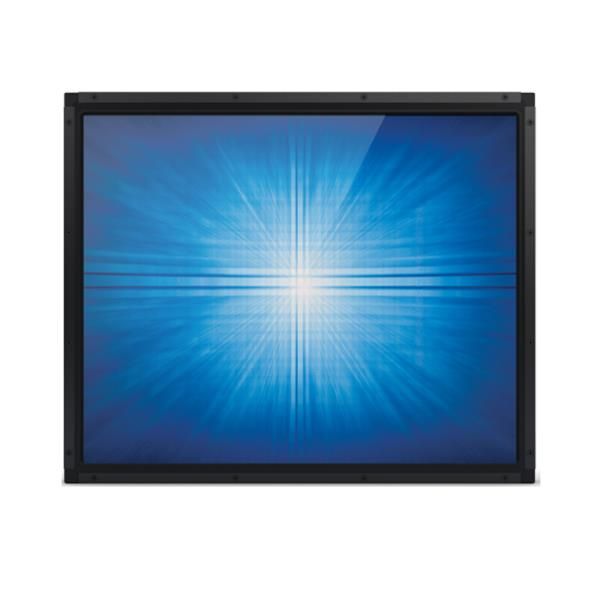

17" TFT, Active Matrix (CCFL) Monitor with 5-Wire Resistive Touch Screen - 1280 x 1024 Resolution, 200 NITS Brightness, Black
Industrial Display
- Screen Size (inches): 17"
- Touch Type: 5-Wire Resistive
- Aspect Ratio: 5 :4
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 200
- Ports: VGA Port In

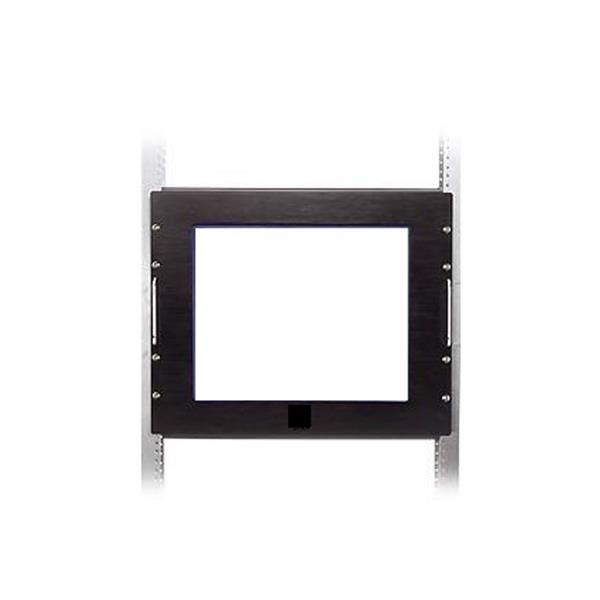

- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
Related Products
Check items to add to the cart or
- Display
- Screen Size (inches): 17
- Touch Type: 5-Wire Resistive
- Aspect Ratio: 5 :4
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 200
- Display Area (H): 13.30"
- Display Area (V): 10.60"
- Aspect Ratio: 5 :4
- DisplayColors: 16.7 M
- Contrast Ratio: 800:1
- Backlight: TFT, Active Matrix (CCFL)
- Viewing Angle(U) : 80
- Viewing Angle(D) : 80
- Viewing Angle(L) : 80
- Viewing Angle(R) : 80
- Connectivity
- VGA Port In: 1
- Mounting Options
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
- Suggested Cut-Out Dimension (Width): 372mm
- Suggested Cut-Out Dimension (Height): 310mm
- Physical
- Width: 14.50"
- Height: 12"
- Depth: 2.20"
- Depth (Inches): 2.2
- Unboxed Weight: 8.8lbs
- Shipping Weight: 45lbs
- Environmental
- MTBF: 50,000hours
- Maximum Operating Temperature: 40C
- High Humidity: 80%
- Low Humidity: 20%
- Storage Temp (High): 60C
- Storage Temp (Low): -20C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 10%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 40Watts
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Warranty
- Warranty: 1 year
