SL-LCD-17N-RTOUCH-E326347-KIT

17" TFT, Active Matrix (CCFL) Monitor with 5-Wire Resistive Touch Screen - 1280 x 1024 Resolution, 200 NITS Brightness, Black

Industrial Display

  • Screen Size (inches): 17"
  • Touch Type: 5-Wire Resistive
  • Aspect Ratio: 5 :4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 200
  • Ports: VGA Port In, HDMI In
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Display
  • Screen Size (inches): 17
  • Touch Type: 5-Wire Resistive
  • Aspect Ratio: 5 :4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 200
  • Display Area (H): 13.30"
  • Display Area (V): 10.60"
  • Aspect Ratio: 5 :4
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: TFT, Active Matrix (CCFL)
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • HDMI In: 1
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): 372mm
  • Suggested Cut-Out Dimension (Height): 310mm
  • Physical
  • Width: 14.50"
  • Height: 12"
  • Depth: 2.20"
  • Depth (Inches): 2.2
  • Unboxed Weight: 8.8lbs
  • Shipping Weight: 45lbs
  • Environmental
  • MTBF: 50,000hours
  • Maximum Operating Temperature: 40C
  • High Humidity: 80%
  • Low Humidity: 20%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 10%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 40Watts
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

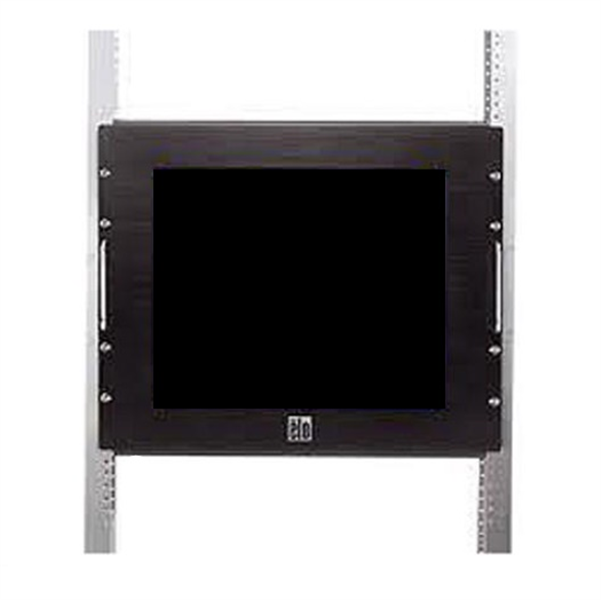

    Rackmount Display

    • Assembly using ELO parts
    • Screen Size: 17"
    • Touch Technology: 5 Wire Resistive
    • Touch Interface: USB
    • Display Resolution (pixels): 1280 x 1024
    • Brightness (CD/m^2): 300 (typ) (ICFL=7.5mA)
