SL-LCD-17N-RTOUCH-E326347-LCD

17" LCD Resistive Touch Panel - 1280x1024, 200nits, Black - Industrial Bezel

17

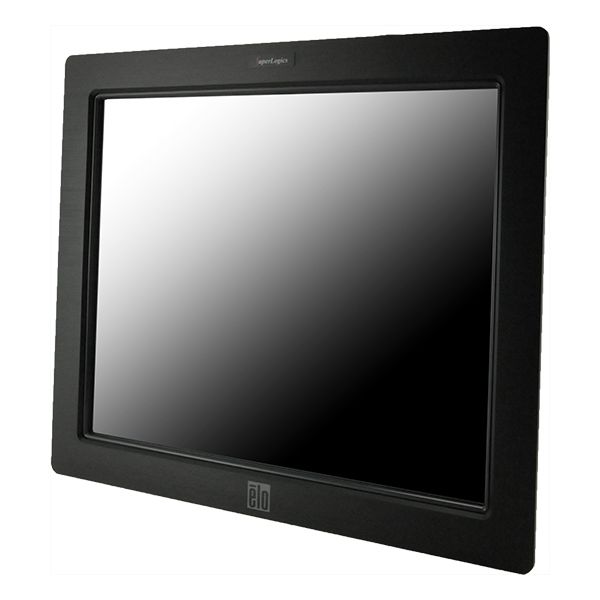

  • Front Angle

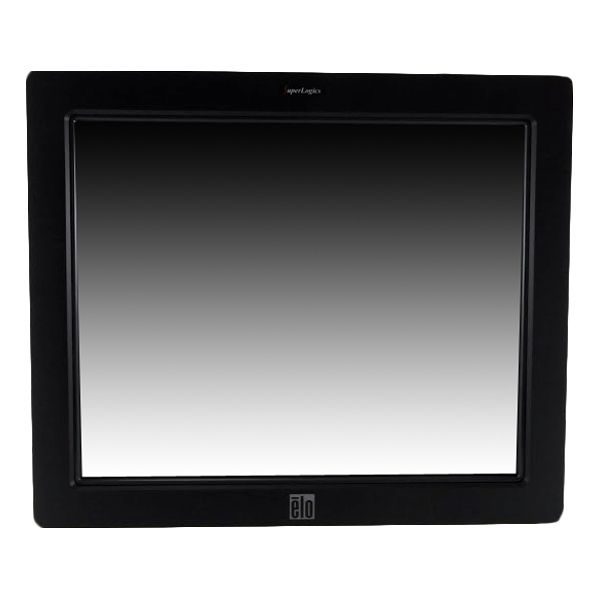

  • Front

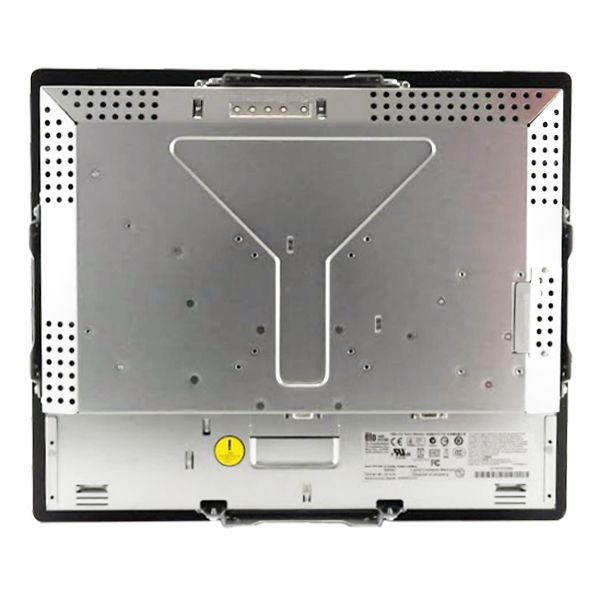

  • Back

Display

  • Assembly using ELO parts
  • Screen Size: 17"
  • Touch Technology: 5 Wire Resistive
  • Touch Interface: USB
  • Display Resolution (pixels): 1280 x 1024
  • Black - Industrial Bezel

Related Products
Technical Specifications
  • Assembly using ELO parts
  • Screen Size: 17"
  • Active Display Area (mm): 337.920 (H) x 270.336 (V)
  • Touch Technology: 5 Wire Resistive
  • Touch Interface: USB
  • Pixel Pitch (mm): 0.264 (H) x 0.264 (V)
  • Display Mode: Normally White
  • Display Resolution (pixels): 1280 x 1024
  • Contrast Ratio: 1000:1 (typ)
  • Display Color: 16.7M
  • Brightness (CD/m^2): 200 (typ) (ICFL=7.5mA)
  • Backlight: 4 x CCFL
  • Viewing Angles (CR >= 10): 160 (H), 160 (V)
  • Synchronization Range (Horizontal/Vertical): 31.5 - 37.5KHz/60 - 75Hz
  • Recommended Resolution: 1280 x 1024, 60Hz/80Hz
  • Signal Connector: 15 pin D-Sub (VGA)/DVI-D
  • Power Consumption: 12VDC/4A
  • Dimensions (W x H x D): 17.3" x 14" x 2.2" (440.6mm x 354.6mm x 56.8mm)
  • Operating Temperature: 0°C to 55°C (32°F to 131°F)
