SL-LCD-19A-PCAPTOUCH-SUN-1

19" LED Monitor with Multi-Touch Projected Capacitive Touch Screen - 1280 x 1024 Resolution, 1150 NITS Brightness, IP65 / NEMA4 Front Panel, Black

19'' LCD PCAP Touch Panel - 1280x1024, 1150nits, IP65/NEMA4, Black - Ultra-Bright

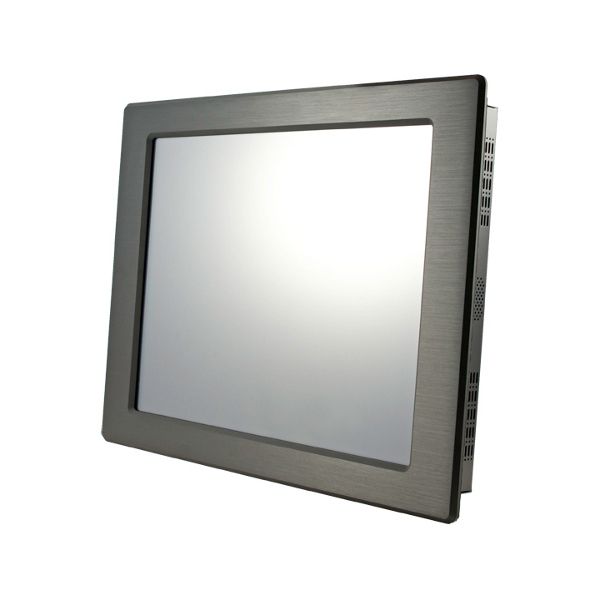

  • Front Angle

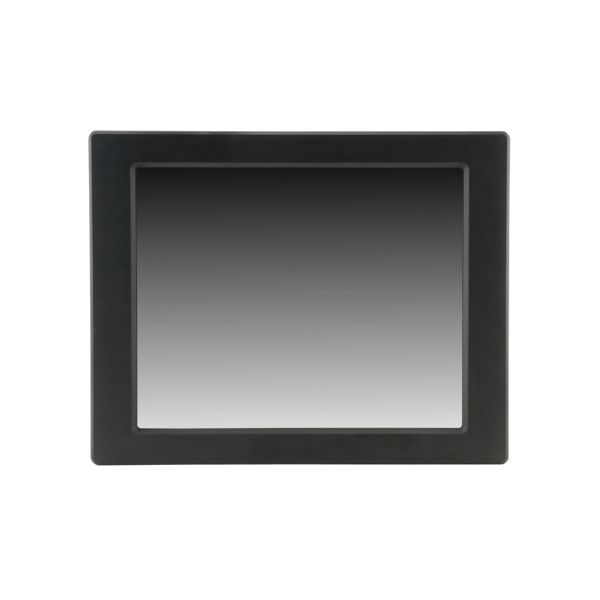

  • Front

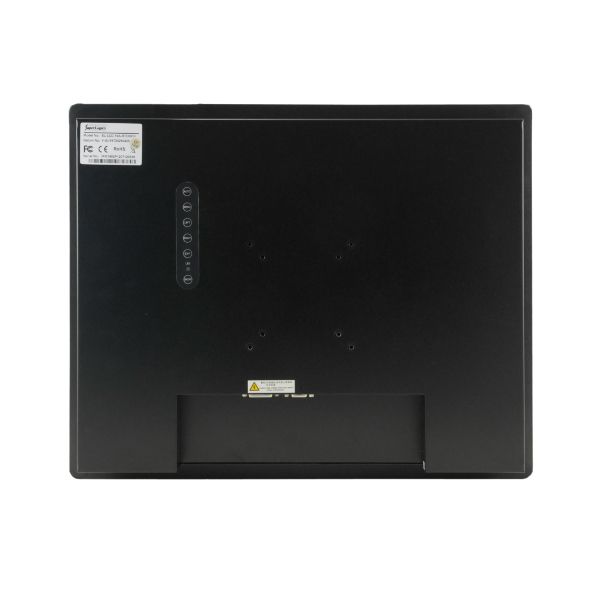

  • Back

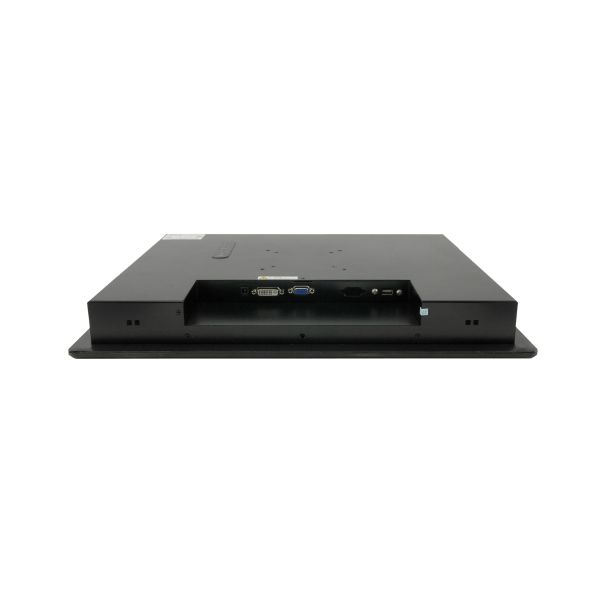

  • Bottom

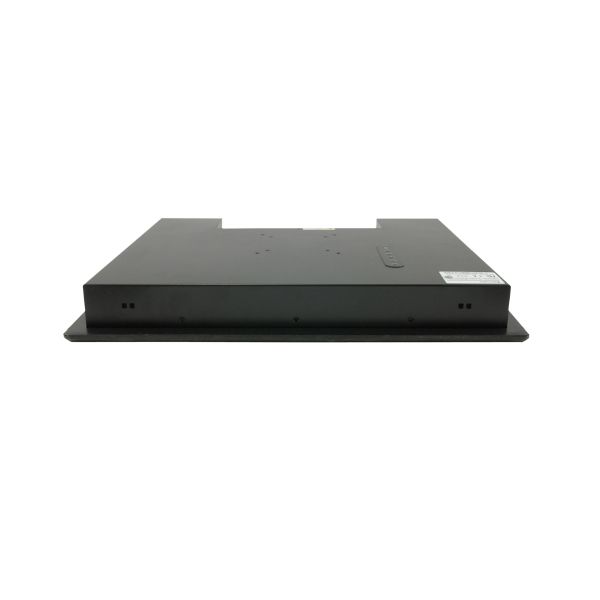

  • Top

Industrial Display

  • Screen Size (inches): 19"
  • Touch Type: Multi-Touch Projected Capacitive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 5 : 4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 1150
  • Ports: VGA Port In, DVI-I In
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
Related Products
Technical Specifications
Available Downloads
  • Display
  • Screen Size (inches): 19
  • Touch Type: Multi-Touch Projected Capacitive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 5 : 4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 1150
  • Display Area (H): 376.32inches
  • Display Area (V): 301.066inches
  • Aspect Ratio: 5 : 4
  • DisplayColors: 16.2 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 0
  • DVI-I In: 2
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): 441mm
  • Suggested Cut-Out Dimension (Height): 343mm
  • Width: 19inches
  • Height: 15.1inches
  • Depth: 2.2inches
  • Depth (Inches): 2.2
  • Unboxed Weight: 14lbs
  • Shipping Weight: 40lbs
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -10C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Environmental
  • Power Consumption (on): 18Watts
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Industrial Display

    • Screen Size: 19"
    • Touch Type: Multi-Touch Projected Capacitive
    • Front Panel Rating: IP65 / NEMA4
    • Color: Black
    • Native Display Resolution: 1280 x 1024
    • Brightness (nits): 1150
