SL-LCD-19AW-RTOUCH-1 This item is no longer available.

19" LED Monitor with 5-Wire Resistive Touch Screen - 1366 x 768 Resolution, 250 NITS Brightness, IP65 / NEMA4 Front Panel, Black

A newer version of this item is available: SL-LCD-19AW-RTOUCH-2
19

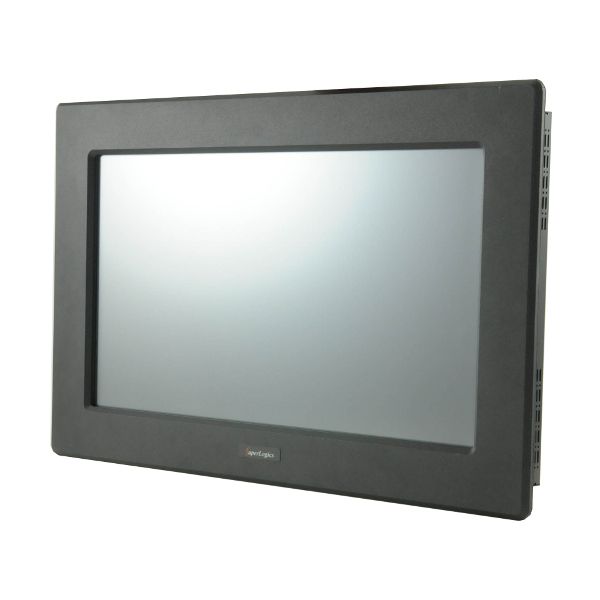

  • Front Angle

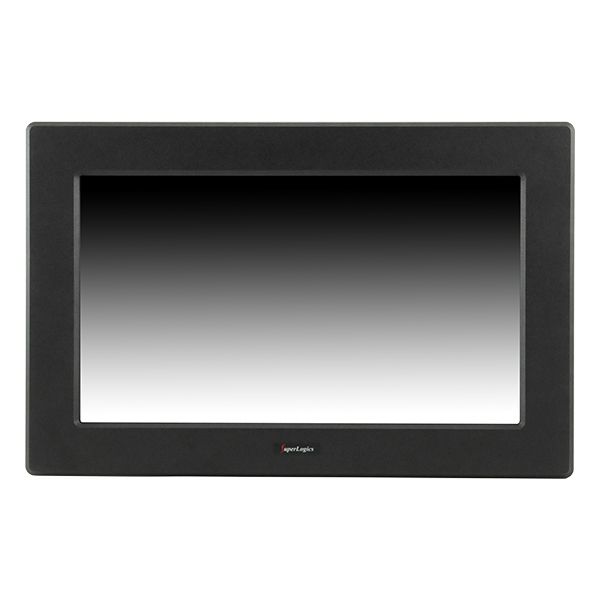

  • Front

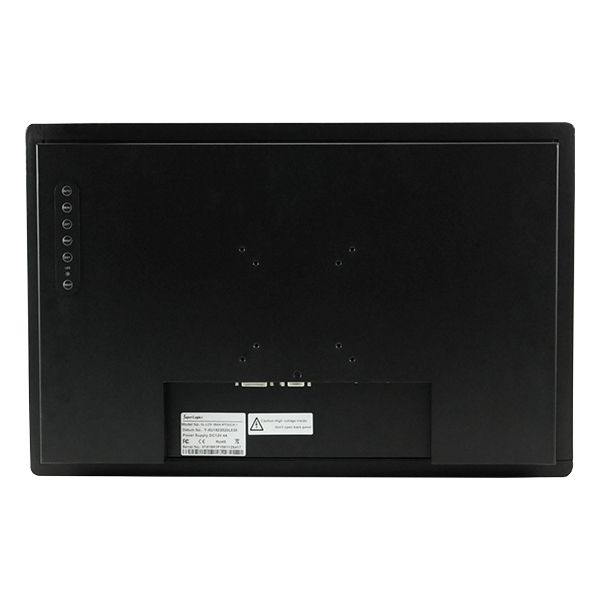

  • Back

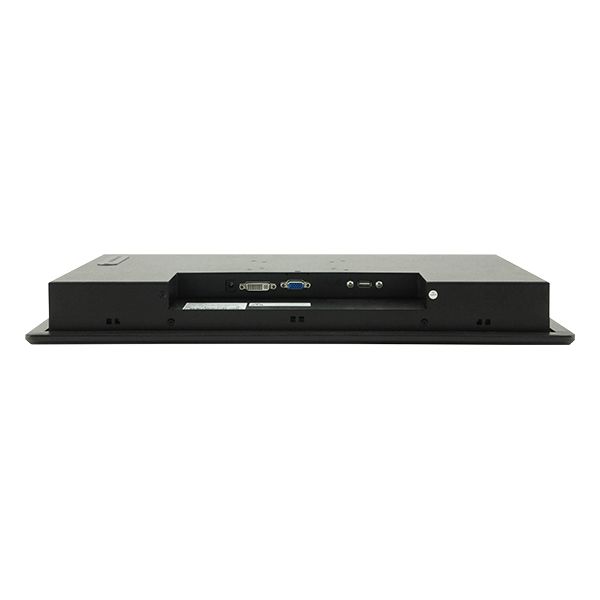

  • Bottom View

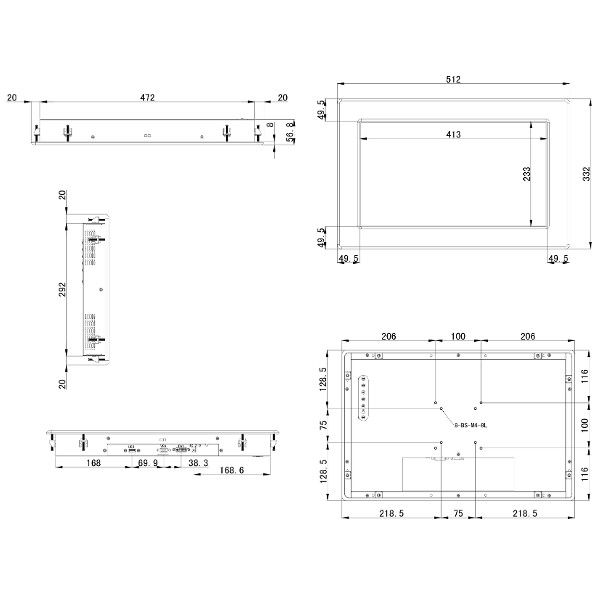

  • Dimensions (LCD Only)
  • Included Accessories
  • Wallmount Instructions

Industrial Display

  • Screen Size (inches): 19"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 16:9
  • Native Display Resolution: 1366 x 768
  • Brightness (nits): 250
  • Ports: VGA Port In, DVI-I In
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
Technical Specifications
Available Downloads
  • Display
  • Screen Size (inches): 19
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 16:9
  • Native Display Resolution: 1366 x 768
  • Brightness (nits): 250
  • Display Area (H): 409.8mm
  • Display Area (V): 230.4mm
  • Aspect Ratio: 16:9
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 85
  • Viewing Angle(R) : 85
  • Connectivity
  • VGA Port In: 0
  • DVI-I In: 2
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): 472mm
  • Suggested Cut-Out Dimension (Height): 292mm
  • Width: 332mm
  • Height: 512mm
  • Depth: 56.8mm
  • Depth (Inches): 2.2
  • Unboxed Weight: 14lbs
  • Shipping Weight: 40lbs
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -10C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Environmental
  • Power Consumption (on): 12Watts
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Industrial Display

    • Screen Size: 18.5"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1366 x 768
    • Brightness (nits): 250
