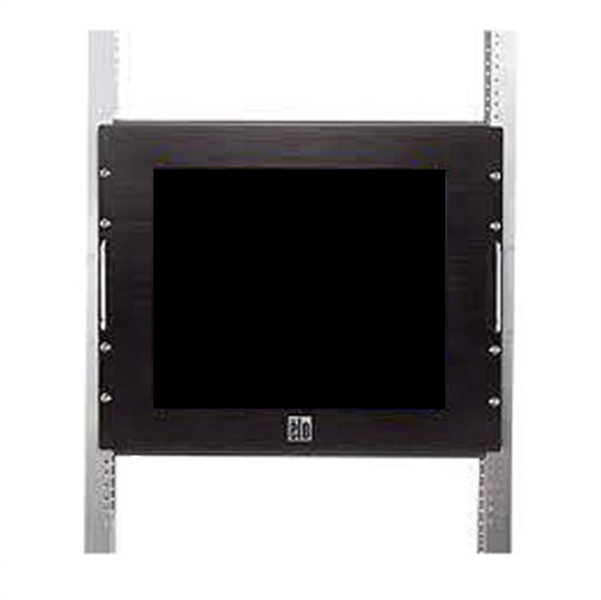

SL-LCD-19N-RTOUCH-LCD-RACK

19" TFT, Active Matrix (CCFL) Monitor with 5-Wire Resistive Touch Screen - 1280 x 1024 Resolution, 250 NITS Brightness, Black

Industrial Display

  • Screen Size (inches): 19"
  • Touch Type: 5-Wire Resistive
  • Aspect Ratio: 5 : 4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 250
  • Ports: VGA Port In
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
  • Display
  • Screen Size (inches): 19
  • Touch Type: 5-Wire Resistive
  • Aspect Ratio: 5 : 4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 250
  • Display Area (H): 14.80"
  • Display Area (V): 11.90"
  • Aspect Ratio: 5 : 4
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: TFT, Active Matrix (CCFL)
  • Viewing Angle(U) : 85
  • Viewing Angle(D) : 85
  • Viewing Angle(L) : 85
  • Viewing Angle(R) : 85
  • Connectivity
  • VGA Port In: 1
  • Mounting Options
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): 419mm
  • Suggested Cut-Out Dimension (Height): 347mm
  • Physical
  • Width: 16.30"
  • Height: 13.50"
  • Depth: 2.20"
  • Depth (Inches): 2.2
  • Unboxed Weight: 11.5lbs
  • Shipping Weight: 16.1lbs
  • Environmental
  • MTBF: 50,000hours
  • Maximum Operating Temperature: 40C
  • High Humidity: 80%
  • Low Humidity: 20%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 10%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 50Watts
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • CB
  • Warranty
  • Warranty: 3 years
  • Other
  • Features:

    Rackmount Display

    • Screen Size: 19"
    • Touch Type: 5-Wire Resistive
    • Native Display Resolution: 1280 x 1024
    • Brightness (nits): 350
