SL-LCD-19N-RTOUCH-OF

19" LCD Five-Wire Resistive Touch Panel - ELO 1280x1024, 250nits, RoHS, Black - Open Frame

19

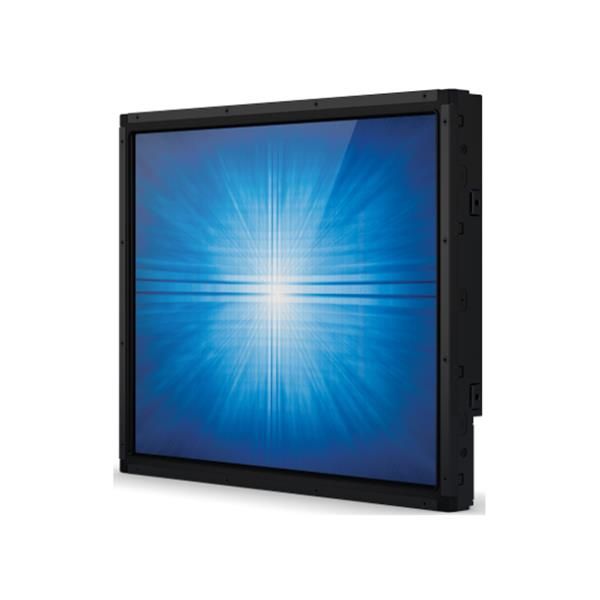

  • Front Angle

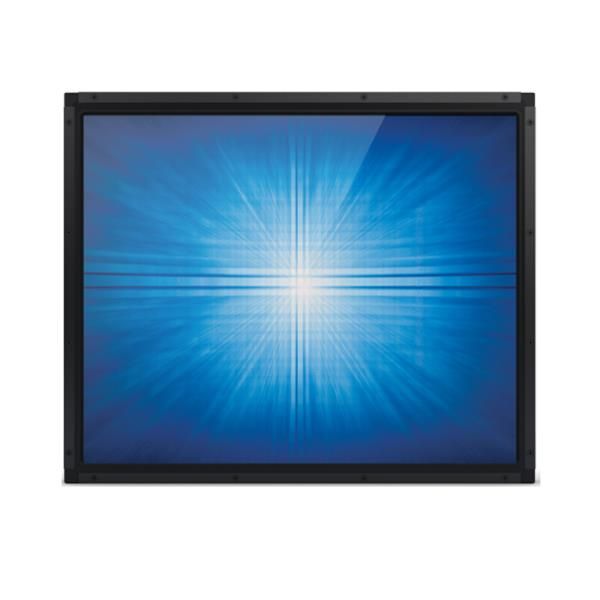

  • Front

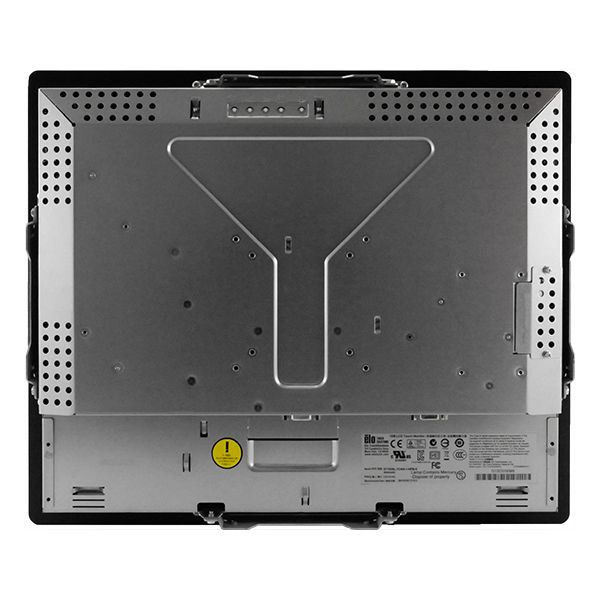

  • Back

Industrial Display

  • Screen Size: 19" Open Frame
  • Touch Type: 5-wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 250
  • Power Supply Included
Related Products
Technical Specifications

Technical Information

  • Horizontal Viewing Angle: 178°
  • Vertical Viewing Angle: 178°
  • Screen Mode: SXGA
  • Screen Size: 19"
  • Aspect Ratio: 5:4
  • Response Time: 25 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • Height: 13.5"
  • Width: 16.3"
  • Depth: 2"
  • Weight (Approximate): 11.50 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Open Frame Touchscreen LCD Monitor
    • Detachable Touch Cable
    • Video Cable

Video

  • Standard Refresh Rate: 60 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 1,300:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: 5-wire Resistive

Power Description

  • Input Voltage: 12 V DC
