SL-LCD-22-RTouch-SSB

22" Panel Mount Industrial Monitor, NEMA 4X, Stainless Steel Bezel, Resistive Touchscreen

22

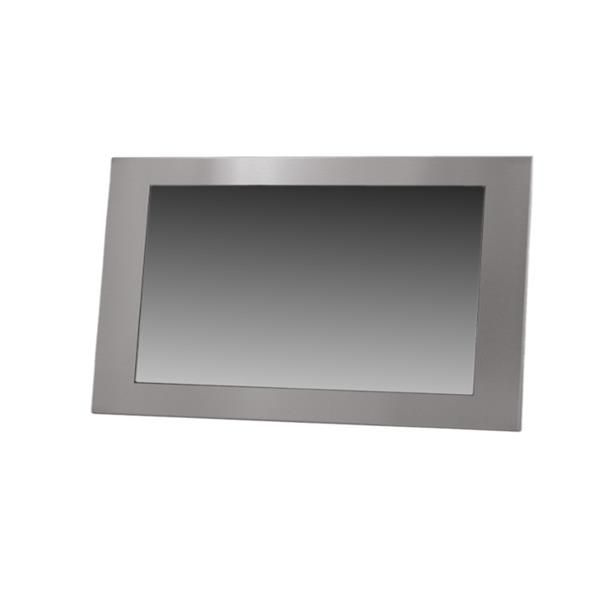

  • Front

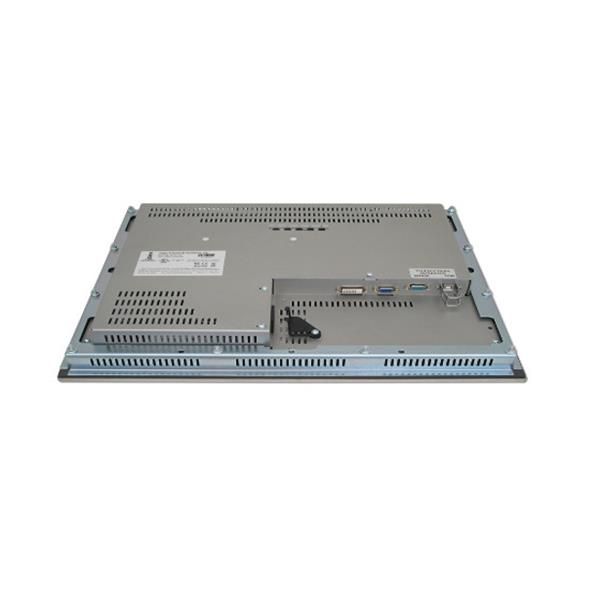

  • Back

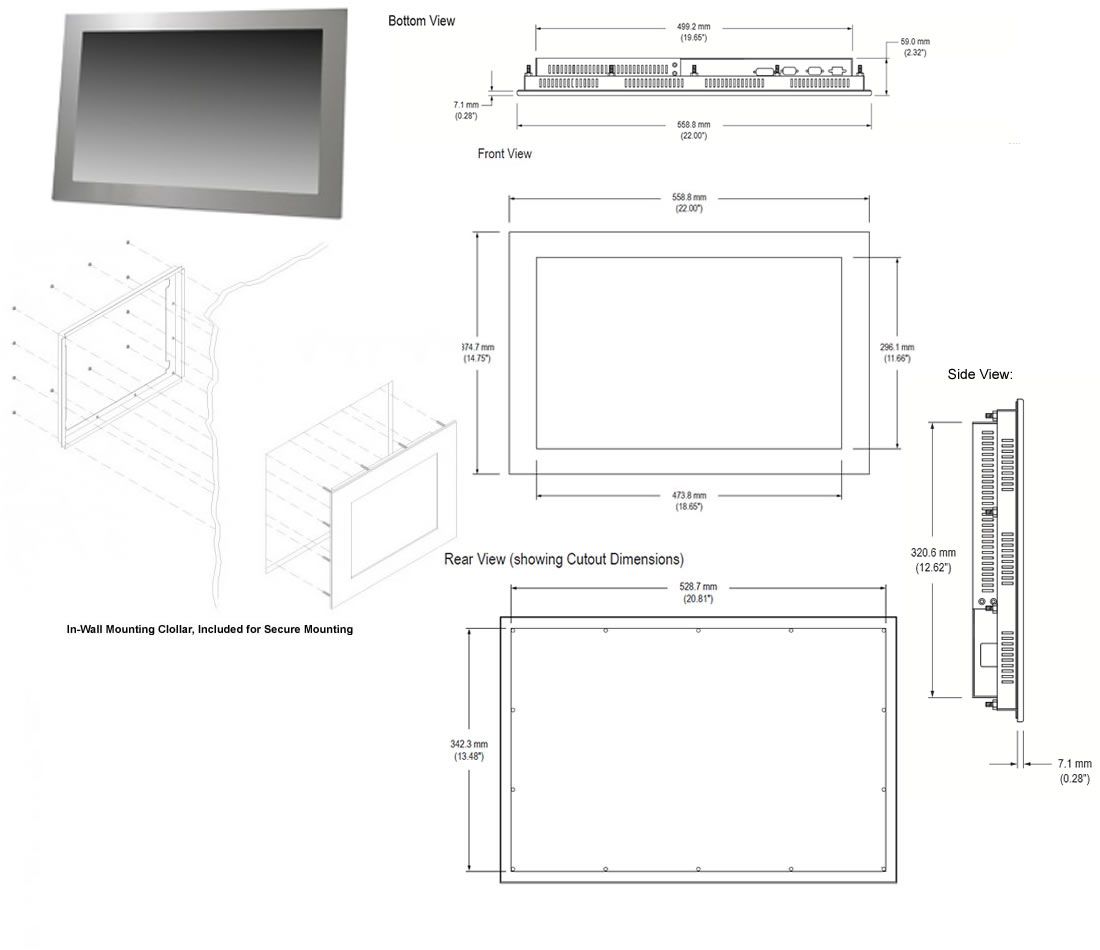

  • Dimensions

Industrial Display

  • Screen Size: 22"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Material: Stainless Steel
  • Native Display Resolution: 1680 x 1050
  • Brightness (nits): 300
Related Products
Technical Specifications
  • Display
    • Thin-film Transistor (TFT) Active Matrix Liquid Crystal
    • Size - 22.0" diagonal (widescreen)
    • Image Size (W x H) - 473.8 mm x 296.1 mm (18.65" x 11.66")
    • Native Resolution - WSXGA+ (1680 x 1050, 16:10 aspect ratio)
    • Plug and Play - DDC1/2B compatible
    • Minimum Resolution - VGA (640 x 480)
    • Pixel Pitch - 0.282 mm x 0.282 mm
    • Number of Colors - 16.7 million
    • Viewing Angle (Hori/Vert), typical - 170° / 160°
    • Brightness - (white) 300 nits (cd/m2) max
    • Contrast Ratio - 1000:1 (static); 100,000:1 (dynamic)
    • Backlight - Four CCFTs (Cold Cathode Fluorescent Tube); 50,000 hour brightness half-life
  • Video
    • Input Connectors
      • HD-15
      • DVI-D
      • Optional BNC input (using HD-15 to 5-wire BNC adapter); see "Input Signal Formats" for a list of compatible video signals
      • Optional DisplayPort input (using DisplayPort to VGA or DisplayPort to DVI adapter); call for details
    • Input Signal Formats
      • RGB Analog video, 0.7/1.0 Vp-p, 75 Ohms; Compatible sync modes: Separate H/V sync
      • DVI
    • Horizontal Scan - 24-82 kHz
    • Vertical Scan - 50-85 Hz
    • Supported Video Standards - WSXGA+ - 1680 x 1050 @ 60 Hz (native); 1440 x 900 @ 60, 75 Hz; 1360 x 768 @ 60 Hz; 1280 x 1024 @ 60, 75 Hz; 1280 x 768 @ 60, 75 Hz; 1024 x 768 @ 60, 75 Hz; 800 x 600 @ 60, 75 Hz; 720 x 400 @ 70 Hz; 640 x 480 @ 60, 75 Hz
    • Response Rate (typical) - 5 ms
  • Electrical
    • Power Input - 100 to 240 VAC, 1.5/0.75 A, 60/50 Hz
    • Power Consumption (typical) - 45 W
    • Power Consumption (standby mode) - < 2 W
  • Enclosure
    • Type - Panel mount; rear collar compresses gasket against panel (5/16" maximum panel thickness); held by 14 M5 studs
    • Panel Rating - NEMA/UL Type 12/4/4X (with proper installation) - built to IP65/IP66 standards.
    • Stainless steel bezel
  • Environmental
    • Temperature - 0° to 50°C (32° to 122°F)
    • Humidity - 20% to 90% non-condensing
    • Operating Shock - 15 g, 6 msec, half-sine
    • Operating Vibration (sine) - 1.0 g, swept sine 9-500 Hz
    • Transport Vibration (random) - 0.1g² / Hz, 10-200 Hz; 0.03g² / Hz, 200-2000 Hz
    • Altitude - Operating: up to 10,000 feet; Non-operating: up to 40,000 feet
  • Functional
    • Panel Controls (rear access) - 1, 2, Power, Down, Up
    • OSD (On Screen Display) Controls - Auto Image Adjust, Contrast / Brightness, Input Select, Color Adjust, Information, Manual Image Adjust, Setup, Memory Recall
  • Physical
    • Depth - 51.8 mm (2.04") behind panel maximum
    • Bezel Options - Stainless steel
    • Front Bezel Outside Dimensions (W x H x D) - 558.8 mm x 374.7 mm x 7.1 mm (22.0" x 14.75" x 0.28") (not including gasket)
    • Cutout Dimensions (W x H) - 528.7 mm x 342.3 mm (20.81" x 13.48"); +/- 0.5 mm (0.020")
    • Net Weight - 19 lbs.
  • Touch Screen
    • 5-wire resistive system
    • Emulates a mouse
    • RS-232 or USB interface to host computer (both connections are present on touch screen monitors)
  • Compliances and Certifications
    • UL 60950 3rd Edition / cUL Recognized Component (File No. E212889)
    • UL 508A Listed (File No. E318630)
    • FCC Class A
    • CE
    • RoHS
    • WEEE (Registration No. WEE/DJ1859ZX for UK only)
    • IEC 60721-3
    • UL 50E (File No. E318630)
