SL-LCD-22A-IRTOUCH-1 This item is no longer available.

22" LCD IR Touch Panel - 1680x1050, IP65, Black Powder Coat Bezel

A newer version of this item is available: SL-LCD-22A-IRTOUCH-2
22

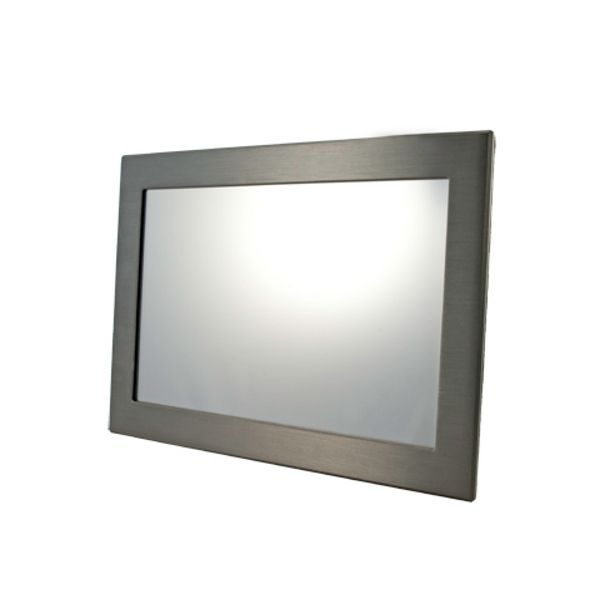

  • Front Angle

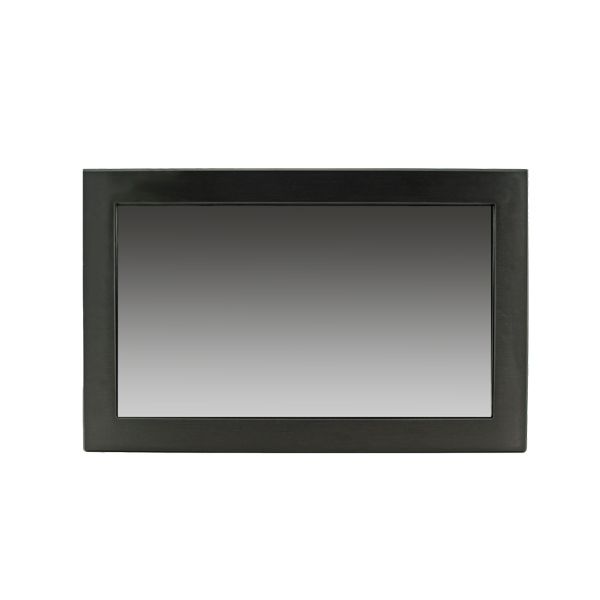

  • Front

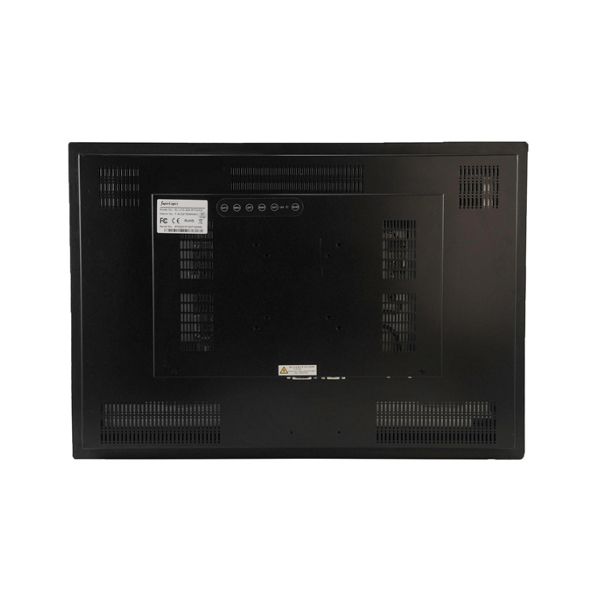

  • Back

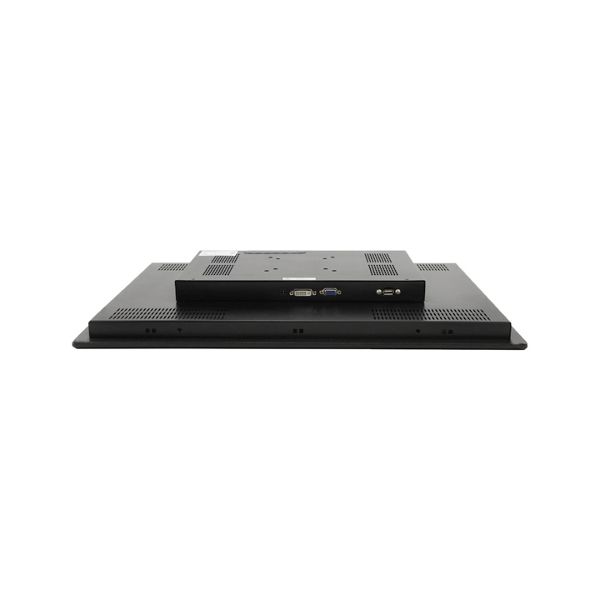

  • Bottom

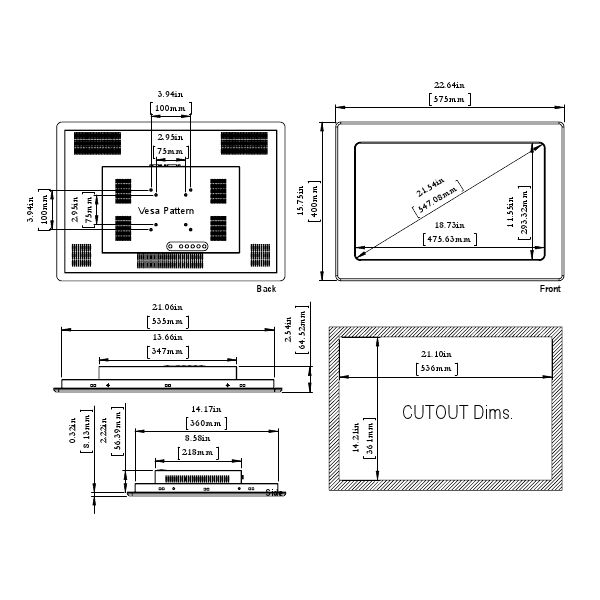

  • Dimensions
  • Cutout Dimensions
  • Wallmount Instructions
  • Included Accessories

Industrial Display

  • Screen Size: 22"
  • Touch Type: InfraRed
  • Front Panel Rating: IP65 / NEMA4
  • Native Display Resolution: 1680 x 1050
  • Brightness (nits): 300
Technical Specifications
Available Downloads
  • Display
  • Screen Size: 22"
  • Touch Type: InfraRed
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 1680 x 1050
  • Brightness (nits): 300
  • Display Area (H): 473mm
  • Display Area (V): 296mm
  • Aspect Ratio: 16 : 10
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 85
  • Viewing Angle(D) : 85
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Mounting Options
  • Bezel Mounting Hardware Included
  • Suitable for Mounting in Cut-Out
  • Suggested Cut-Out Dimension (Width): 539mm
  • Suggested Cut-Out Dimension (Height): 366mm
  • Physical
  • Width: 22.60"
  • Height: 15.75"
  • Depth: 2.50"
  • Depth (Inches): 2.5
  • Shipping Weight: 45lbs
  • Environmental
  • MTBF: 30000hours
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temperature: -10ºC to 60ºC (14ºF to 140ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 19Watts
  • Compliance
  • CE
  • RoHS
  • FCC
  • Other Features
  • Warranty: 1 year
