SL-LCD-22A-NT This item is no longer available.

22" LED Monitor 1680 x 1050 Resolution, 300 NITS Brightness, IP65 / NEMA4 Front Panel, Black

22'' LCD Non-Touch Panel - 1680x1050, 300Nits, IP65, Black

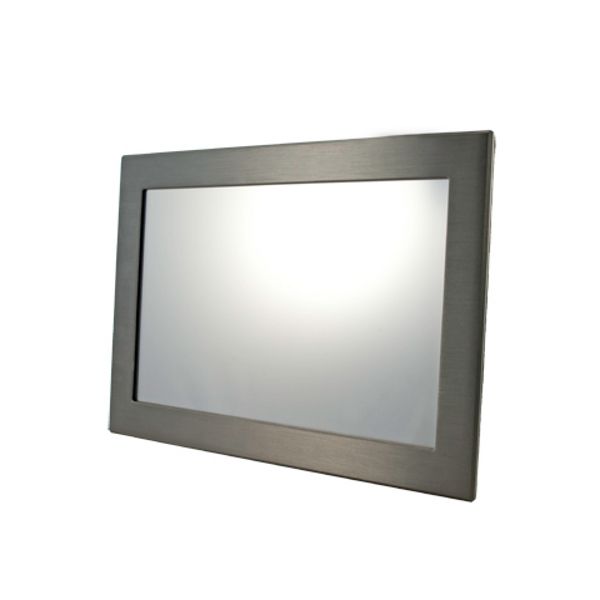

  • Front Angle

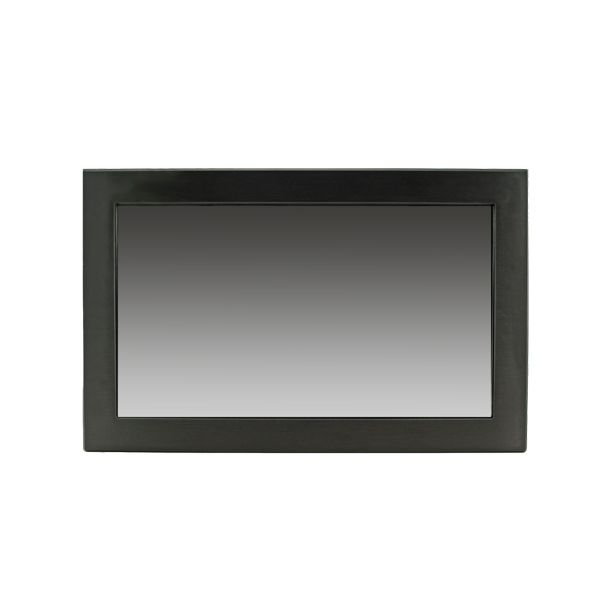

  • Front

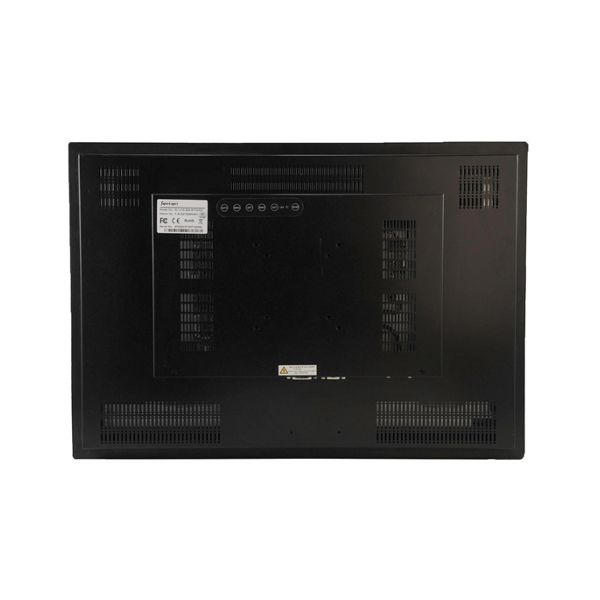

  • Back Straight

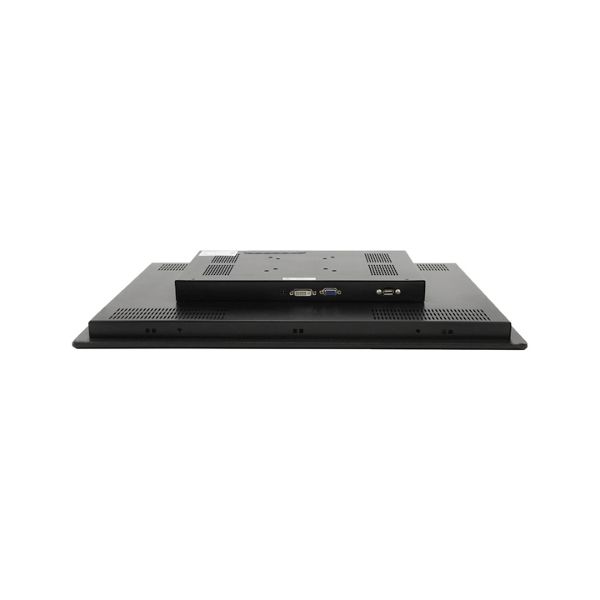

  • Back I/O

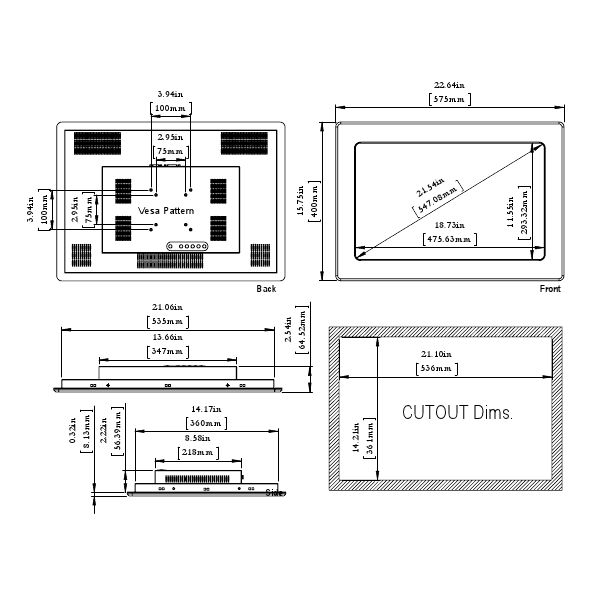

  • Dimensions
  • Cutout Dimensions
  • Wallmount Instructions

Industrial Display

  • Screen Size (inches): 22"
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 16 : 10
  • Native Display Resolution: 1680 x 1050
  • Brightness (nits): 300
  • Ports: VGA Port In, DVI-I In
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
Technical Specifications
Available Downloads
  • Display
  • Screen Size (inches): 22
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 16 : 10
  • Native Display Resolution: 1680 x 1050
  • Brightness (nits): 300
  • Display Area (H): 473.6mm
  • Display Area (V): 296.1mm
  • Aspect Ratio: 16 : 10
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 85
  • Viewing Angle(D) : 85
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 0
  • DVI-I In: 2
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): 539mm
  • Suggested Cut-Out Dimension (Height): 366mm
  • Width: 22.6inches
  • Height: 15.75inches
  • Depth: 2.5inches
  • Depth (Inches): 2.5
  • Unboxed Weight: 20lbs
  • Shipping Weight: 45lbs
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -10C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Environmental
  • Power Consumption (on): 12Watts
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Industrial Display

    • Screen Size: 22"
    • Touch Type: None
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1680 x 1050
    • Brightness (nits): 300
