SL-LCD-22A-RTOUCH-1

22" TFT, Active Matrix (CCFL) Monitor with 5-Wire Resistive Touch Screen - 1680 x 1050 Resolution, 300 NITS Brightness, IP65 / NEMA4 Front Panel, Black

Long 8-12wk Lead, See SL-LCD-22A-IRTOUCH-2 for 22" Quick Ship

Industrial Display

  • Screen Size (inches): 22"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 16 : 10
  • Native Display Resolution: 1680 x 1050
  • Brightness (nits): 300
  • Ports: VGA Port In, DVI-I In
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Display
  • Screen Size (inches): 22
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 16 : 10
  • Native Display Resolution: 1680 x 1050
  • Brightness (nits): 300
  • Screen Refresh Rate: 60Hz
  • Display Area (H): 473.76mm
  • Display Area (V): 296.10"
  • Aspect Ratio: 16 : 10
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: TFT, Active Matrix (CCFL)
  • Viewing Angle(U) : 85
  • Viewing Angle(D) : 85
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

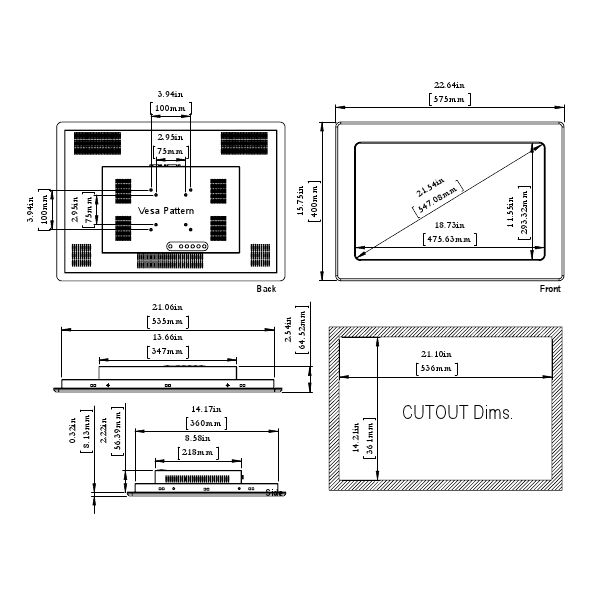

  • Suggested Cut-Out Dimension (Width): Click Technical Specifications Tab > Mechanical Drawings.
  • Suggested Cut-Out Dimension (Height): Click Technical Specifications Tab > Mechanical Drawings.
  • Physical
  • Width: Click Technical Specifications Tab > Mechanical Drawings.
  • Height: Click Technical Specifications Tab > Mechanical Drawings.
  • Depth: Click Technical Specifications Tab > Mechanical Drawings.
  • Depth (Inches): Click Technical Specifications Tab > Mechanical Drawings.
  • Unboxed Weight: 20lbs
  • Shipping Weight: 45lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -10C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 32Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Long (8-12 week) Lead Time - Please consider the SL-LCD-22A-IRTOUCH-2 for quick ship.

    Industrial Display

    • Screen Size: 22"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1680 x 1050
    • Brightness (nits): 300
