SL-LCD-22AWHD-PCAPTOUCH-2

21.5" LED Monitor with Multi-Touch Projected Capacitive Touch Screen - 1920 x 1080 Resolution, 250 NITS Brightness, Black

21.5

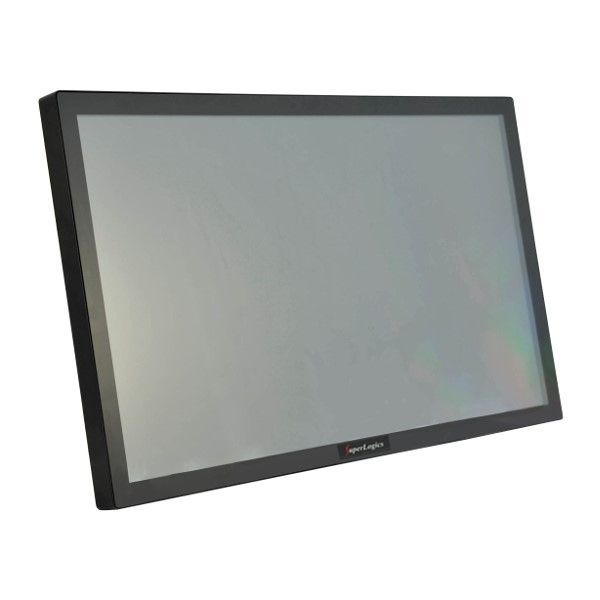

  • ISO

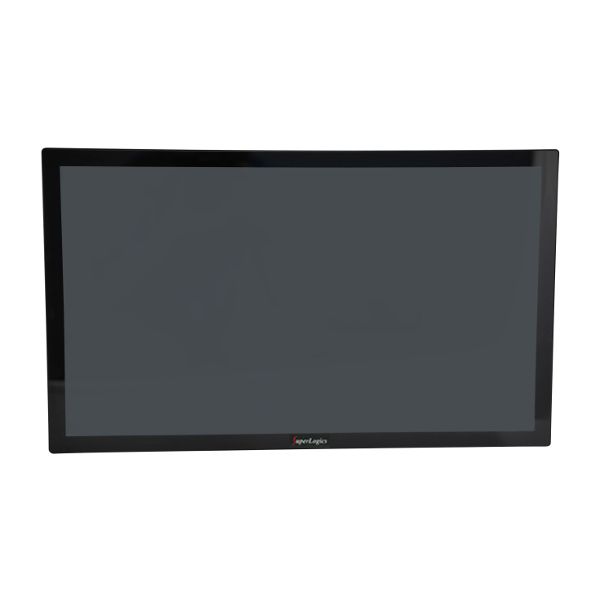

  • Front View

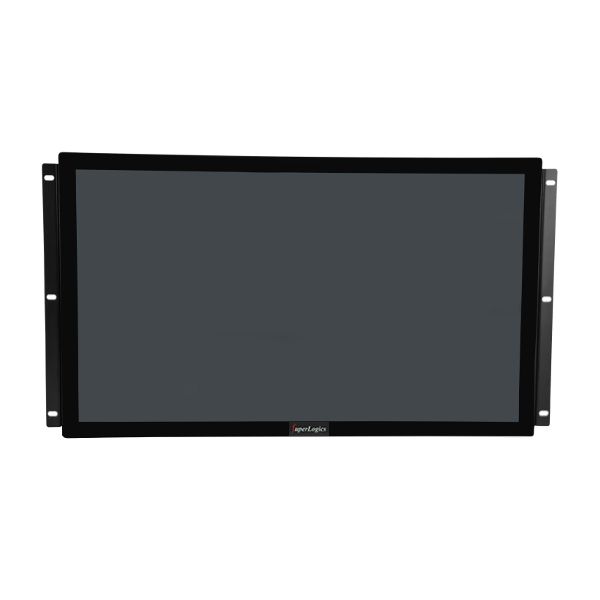

  • Front with Ears

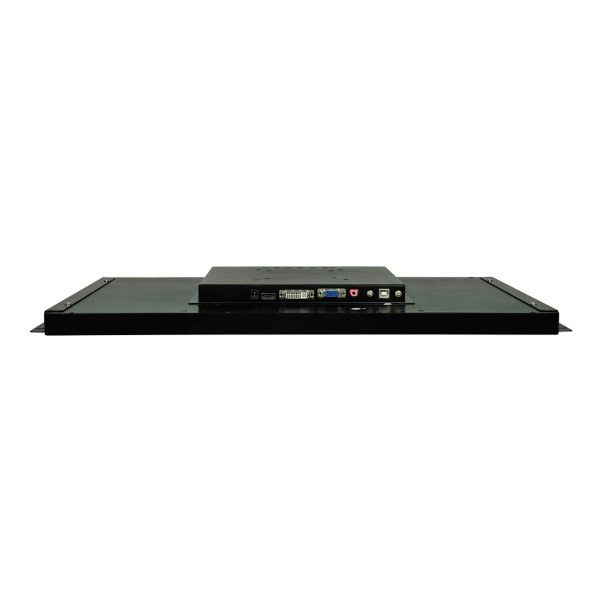

  • I/O View

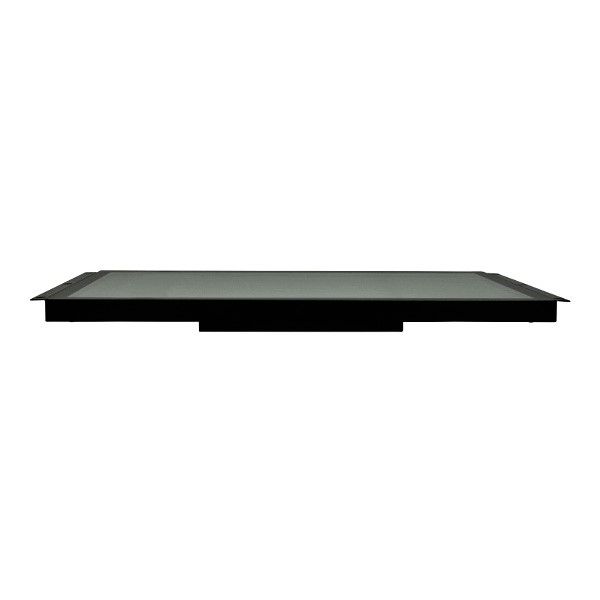

  • Top View

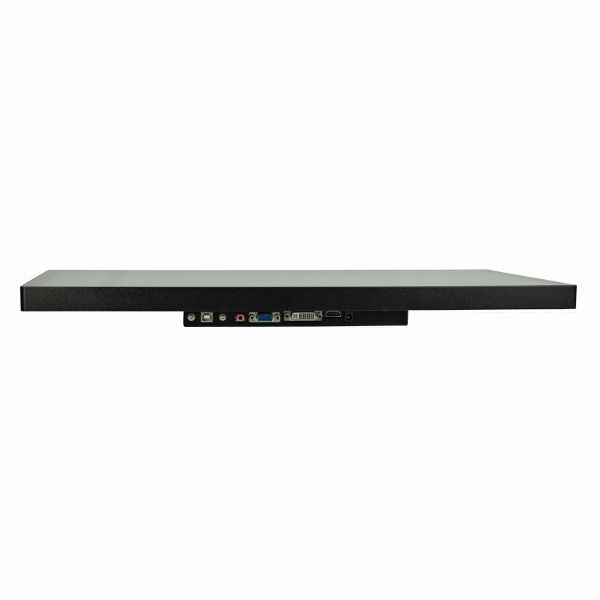

  • Rear View

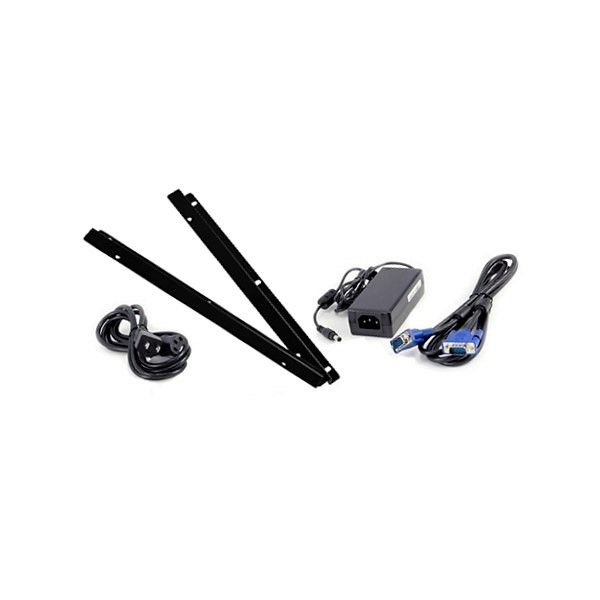

  • Accessories

Industrial Display

  • Screen Size (inches): 21.5"
  • Touch Type: Multi-Touch Projected Capacitive
  • Aspect Ratio: 16 : 9
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 250
  • Ports: VGA Port In, DVI-D In, HDMI In
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Other options sold separately
Related Products
Technical Specifications
Available Downloads
  • Display
  • Screen Size (inches): 21.5
  • Touch Type: Multi-Touch Projected Capacitive
  • Aspect Ratio: 16 : 9
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 250
  • Display Area (H): 476.064mm
  • Display Area (V): 267.786mm
  • Aspect Ratio: 16 : 9
  • DisplayColors: 16.7 M
  • Contrast Ratio: 3000:1
  • Backlight: LED
  • Viewing Angle(U) : 178
  • Viewing Angle(D) : 178
  • Viewing Angle(L) : 178
  • Viewing Angle(R) : 178
  • Connectivity
  • VGA Port In: 1
  • DVI-D In: 1
  • HDMI In: 1
  • Mounting Options
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Other options sold separately
  • Suggested Cut-Out Dimension (Width): 20.5inches
  • Suggested Cut-Out Dimension (Height): 12.25inches
  • Width: 20.5inches
  • Height: 12.25inches
  • Depth: 2inches
  • Depth (Inches): 2
  • Unboxed Weight: 12lbs
  • Shipping Weight: 16lbs
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 5%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 5%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Environmental
  • Power Consumption (on): 18Watts
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    21.5" Open Frame Widescreen

    Display Specifications

    • Display
    • Screen Size: 21.5"
    • Touch Type: Multi-Touch Projected Capacitive
    • Front Panel Rating: Not Rated
    • Color: Black
    • Native Display Resolution: 1920 x 1080
    • Brightness (nits): 250
    • Aspect Ratio: 16 : 9
    • DisplayColors: 16.7 M
    • Contrast Ratio: 3000:1
    • Backlight: LED



    • Connectivity
    • VGA Port In: 1
    • DVI-D In: 1
    • HDMI In: 1
