SL-LCD-24A-PCAPTOUCH-2

24'' LCD PCAP Touch Panel - 1920x1080, 250nits, IP65, Black

24'' LCD PCAP Touch Panel - 1920x1080, 250nits, IP65, Black
  • Front Angle
  • Front

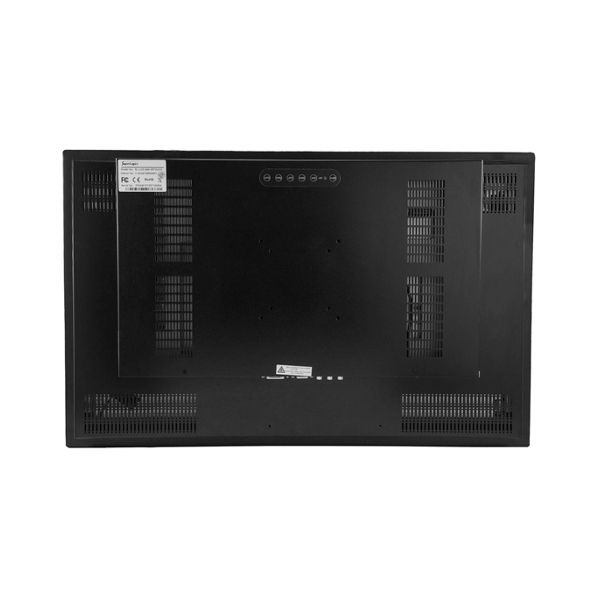

  • Back

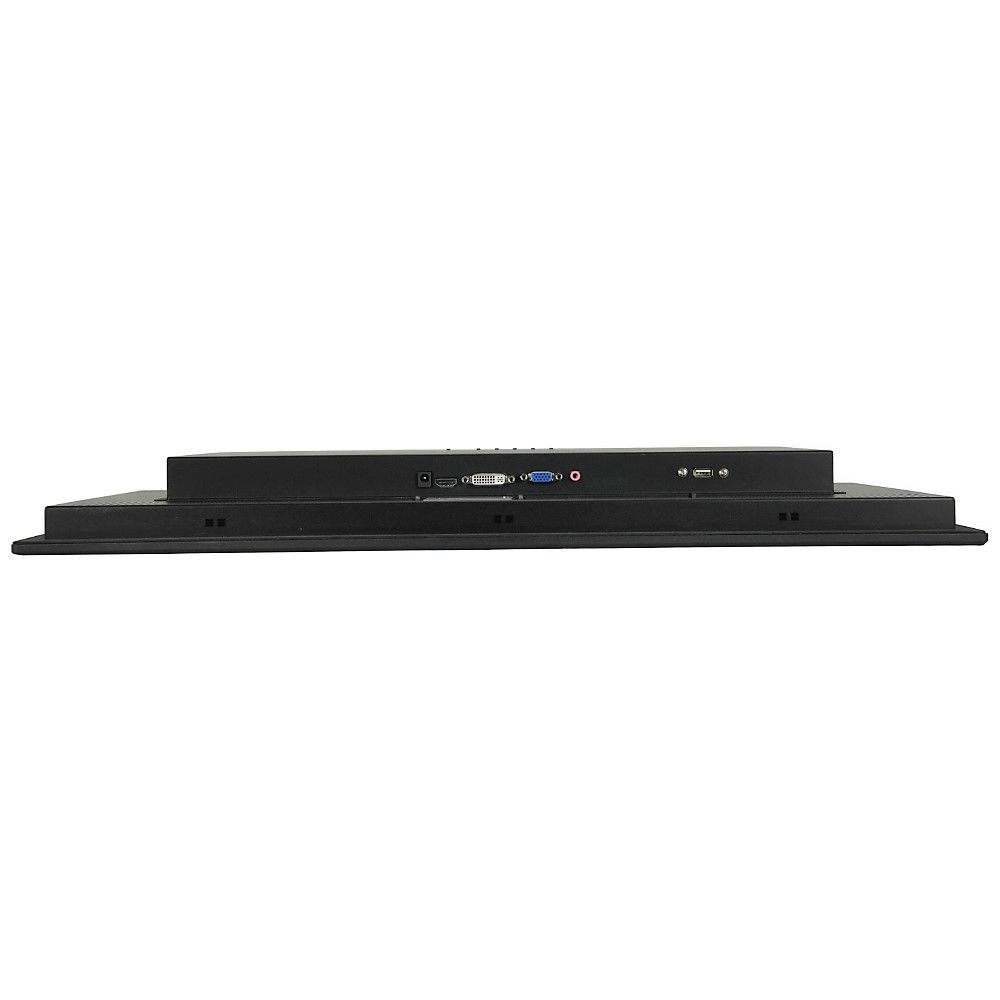

  • Bottom
  • Top

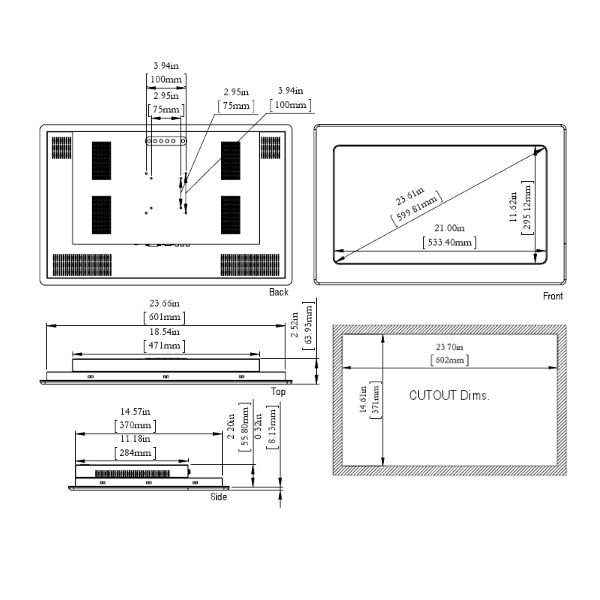

  • Dimensions

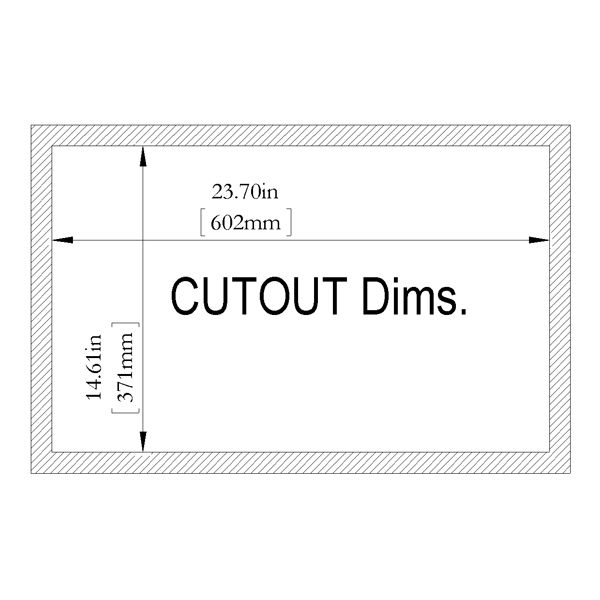

  • Cutout Dimensions
  • Included Accessories
  • Wallmount Instructions

Industrial Display

  • Screen Size: 24"
  • Touch Type: Capacitive
  • Front Panel Rating: IP65 / NEMA4
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 250
Related Products
Technical Specifications
  • Display
  • Screen Size: 24"
  • Touch Type: Capacitive
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 250
  • Display Area (H): 531mm
  • Display Area (V): 298mm
  • Aspect Ratio: 16 : 9
  • DisplayColors: 16.2 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 85
  • Viewing Angle(R) : 85

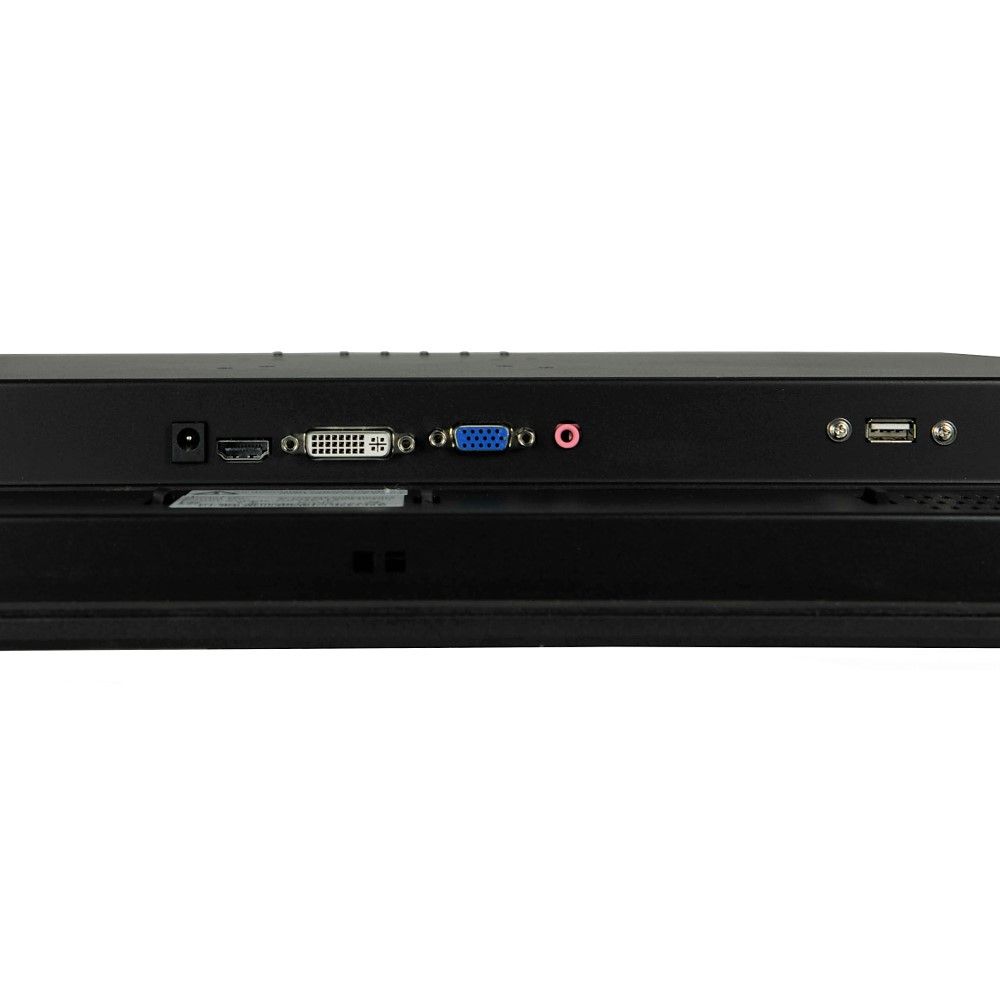

  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • HDMI In: 1
  • S-Video: 1
  • Mounting Options
  • Bezel Mounting Hardware Included
  • Suitable for Mounting in Cut-Out
  • Suggested Cut-Out Dimension (Width): 602mm
  • Suggested Cut-Out Dimension (Height): 370mm
  • Physical
  • Width: 636mm
  • Height: 403mm
  • Depth: 62mm
  • Depth (Inches): 2.5
  • Shipping Weight: 50lbs
  • Environmental
  • MTBF: 30000hours
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temperature: -10ºC to 60ºC (14ºF to 140ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 21Watts
  • Compliance
  • CE
  • RoHS
  • FCC
  • Other Features
  • Warranty: 1 year
