SL-RMKB-RK-IP802e

1U Short Depth Rackmount keyboard drawer w/ touchpad, lock. 21.7" depth. - Fits 15.35" - 31.29" Deep Racks - with 1 IP, 8 DB-15 Ports KVM

1U Short Depth Rackmount keyboard drawer w/ touchpad, lock. 21.7

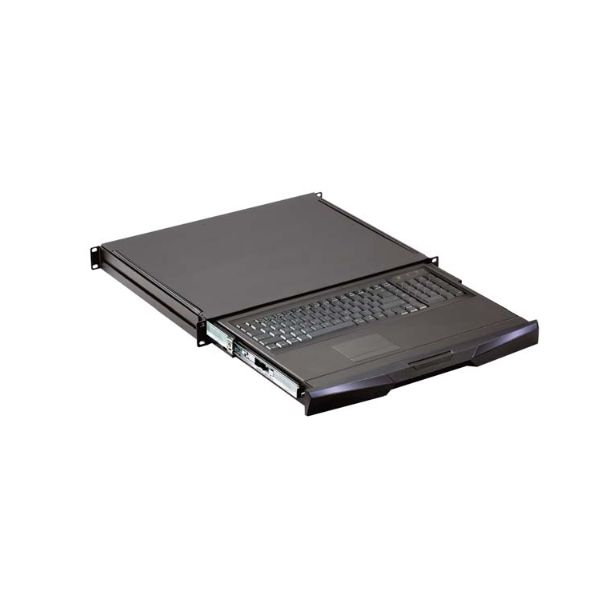

  • Top Angle

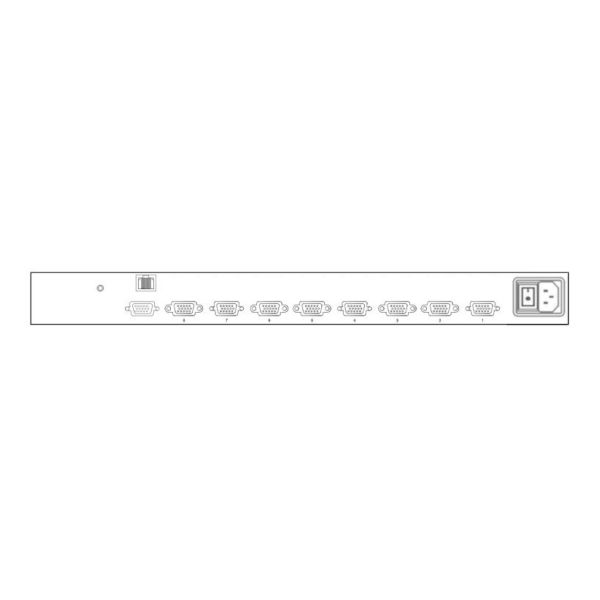

  • KVM I/O

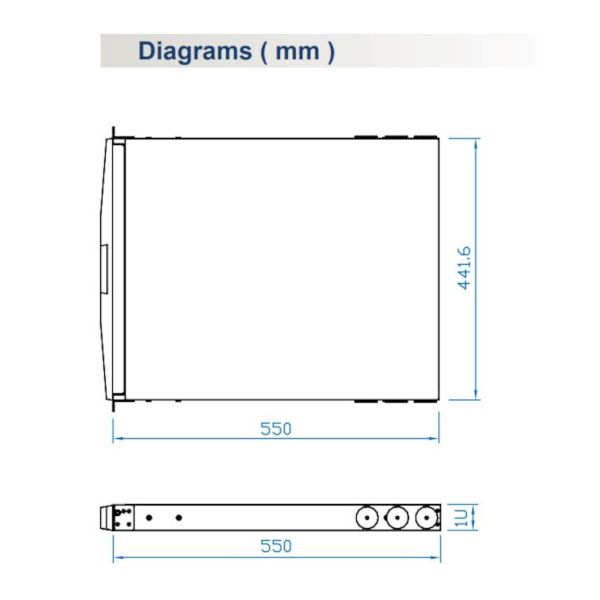

  • Diagram

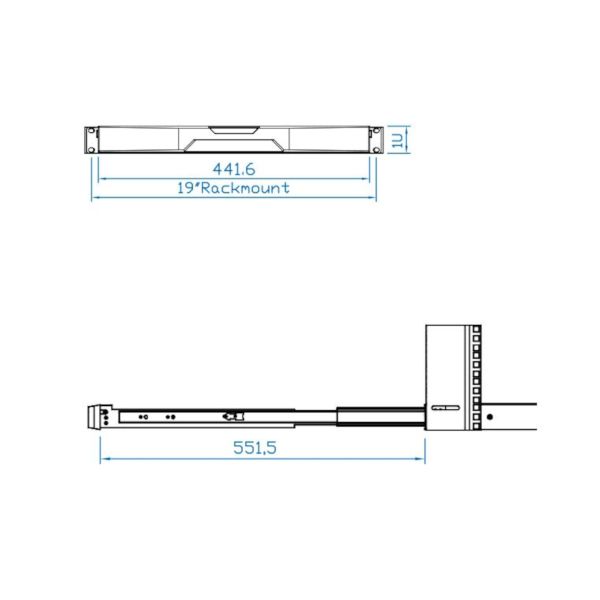

  • Diagram 2

1U keyboard drawer

104-key keyboard with either touchpad

One Man installation design

Enhanced aesthetics with molded front panel and two point lock

1 IP, 8 Ports DB-15 KVM

Related Products
Technical Specifications

Console Port

KB / MS: Combo ( USB )

KB / MS 6ft cable : EKC-2 Drawer end : DB-15 ( USB KB / MS ) , Server end : USB type A

Physical

Dimensions ( W x D x H )

Product: 442 x 550 x 44 mm 17.4 x 21.7 x 1.73 inch

Packing: 574 x 743 x 95 mm 22.6 x 29.3 x 3.7 inch

Weight

Net: 10.4 kg / 22.9 lb

Gross: 13.1 kg / 28.8 lb

Mounting Distance

Single console drawer / Console w/ KVM drawer: 560 ~ 790 mm 22 ~ 31.1 inch

Environment

Operating temp.: -20 to 65°C degree

Storage temp.: -20 to 60°C degree

Operating humidity: 20~90%, non-condensing

Storage humidity: 5 ~90%, non-condensing

Operating altitude: 16,000 ft

Non-operating altitude: 40,000 ft

Shock: 10G acceleration ( 11ms duration )

Vibration: 10~300Hz 0.5G RMS random vibration

Compliance

EMC: FCC & CE certified.

Safety: CE / LVD certified

Environment: RoHS2 & REACH compliant
