SL-RMKB-RK-2b

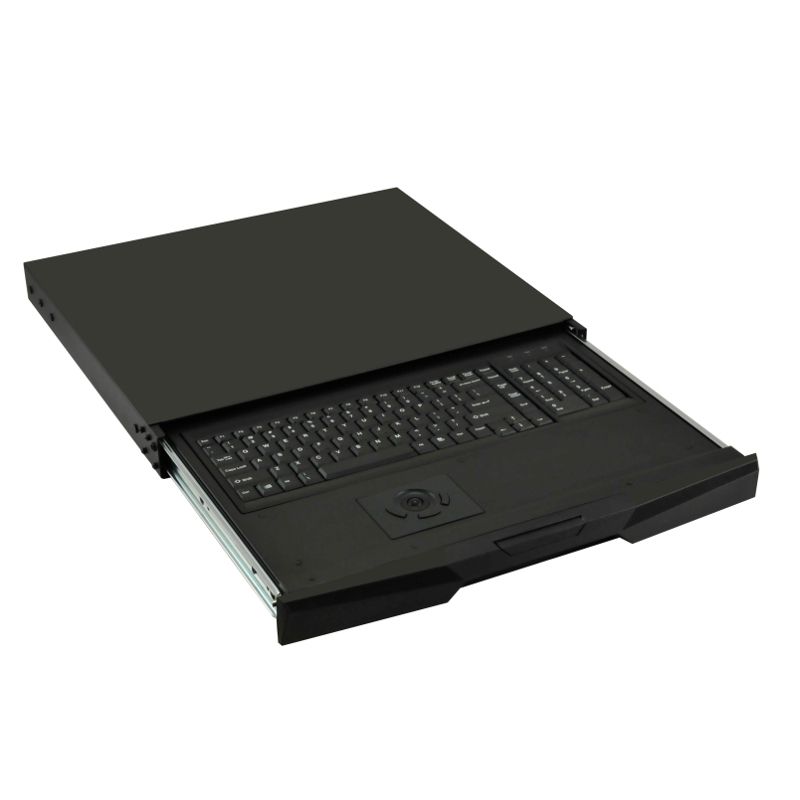

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth.

  • Short depth design of 440mm (15.7") only
  • Includes cables to support either USB or PS/2 connection to computer

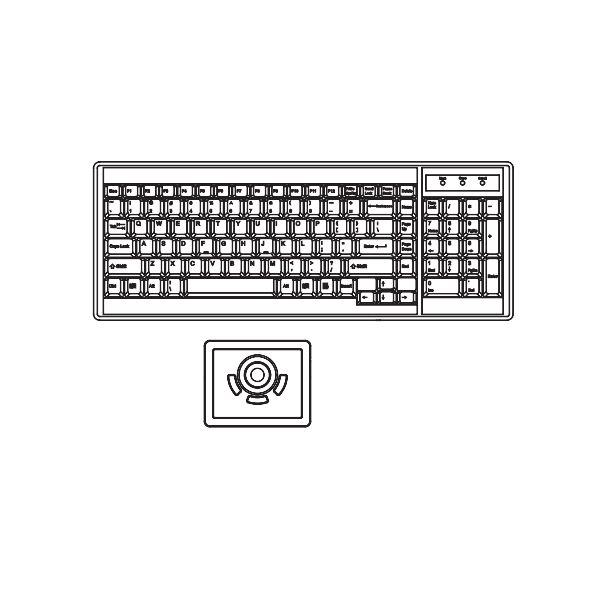

  • US compact keyboard layout with either trackball or touchpad
  • Light weight & low shipping cost
  • Lockable drawer to secure keyboard & mouse access
  • Enhanced aesthetics with molded front handle and two point lock
  • Combo interface either PS/2 or USB keyboard drawer
  • Dimensions: 442 x 400 x 44 mm / 17.4 x 15.7 x 1.73 inchs
  • Short depth design of 400mm (15.7") only
  • Includes cables to support either USB or PS/2 connection to computer
  • US compact keyboard layout with either trackball or touchpad
  • Light weight & low shipping cost
  • Lockable drawer to secure keyboard & mouse access
  • Enhanced aesthetics with molded front handle and two point lock
  • Combo interface either PS/2 or USB keyboard drawer
  • Dimensions: 442 x 400 x 44 mm / 17.4 x 15.7 x 1.73 inch



Mounting Distance

Keyboard drawer 410 ~ 640 mm / 16.1 ~ 25.2 inch



Environment

Operating temp. -20 to 65°C degree

Storage temp. -20 to 60°C degree

Operating humidity 20~90%, non-condensing

Storage humidity 5 ~90%, non-condensing

Operating altitude 16,000 ft

Non-operating altitude 40,000 ft

Shock 10G acceleration ( 11ms duration )

Vibration 10~300Hz 0.5G RMS random vibration



Compliance

EMC - FCC & CE certified

Safety - CE / LVD certified

Environment - RoHS2 & REACH compliant
