SL-RMPD-17-HD-HDMI

1U 17" full-HD LCD drawer ..- 17.3" widescreen LCD..- max resolution 1920 x 1080..- VGA + DVI-D + HDMI 1.3 w/ speaker

1U 17
  • Front
  • Side
  • Top

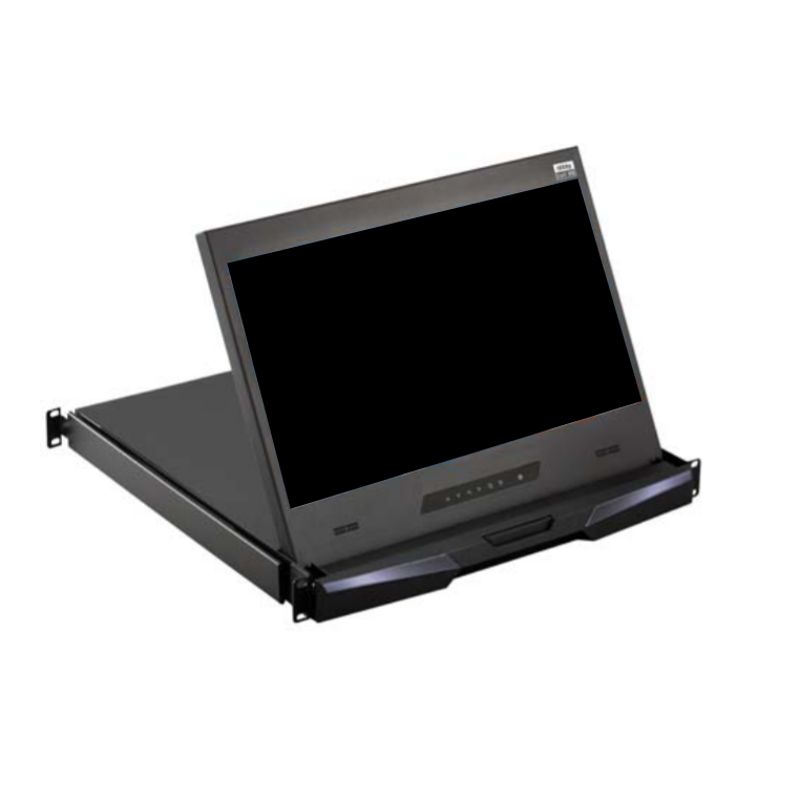

  • 1U 17" LCD display drawer
  • 1920 x 1080 native resolution / 16.7M colors ( 8-bit )
  • VGA + DVI-D + HDMI 1.3 w/ speaker
  • Short depth design of 480mm
  • One Man installation design
  • Enhanced aesthetics with molded front panel and two point lock
Related Products
Technical Specifications

LCD Panel

  • Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD
  • Display pixel ( dots x lines ) 1920 x 1080
  • Brightness ( typ. ) 400
  • Contrast Ratio ( typ. ) 600:1
  • Color 16.7 M, 8-bit
  • Viewing Angle ( L/R/U/D ) 80/80/60/80
  • Response Time ( ms ) 40
  • Dot pitch ( mm ) 0.1989
  • Display Area ( mm ) 381.888H x 214.812V
  • Surface treatment Anti-glare, Hard-coating
  • Surface hardness 3H
  • Backlight Type LED
  • MTBF ( hrs ) 50,000

Video Connectivity

  • DVI DVI-D, TMDS single link
  • VGA Analog 0.7Vp-p
  • HDMI 1.3w/ speaker

Plug & Play DVI / VGA VESA EDID structure 1.3

Power

  • Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption

  • Screen ON Max. 25W
  • Power saving mode Max. 4W
  • Power button OFF Max. 1W

Regulatory

  • Safety FCC & CE certified
  • Environmental RoHS2 & REACH compliant

Environmental Conditions

Operating

  • Temperature 0 to 55°C degree
  • Humidity 20~90%, non-condensing
  • Altitude 16,000 ft

Storage / Non-operating

  • Temperature -20 to 60°C degree
  • Humidity 5~90%, non-condensing
  • Altitude 40,000 ft
  • Shock 10G acceleration (11ms duration)
  • Vibration 5~500Hz 1G RMS random

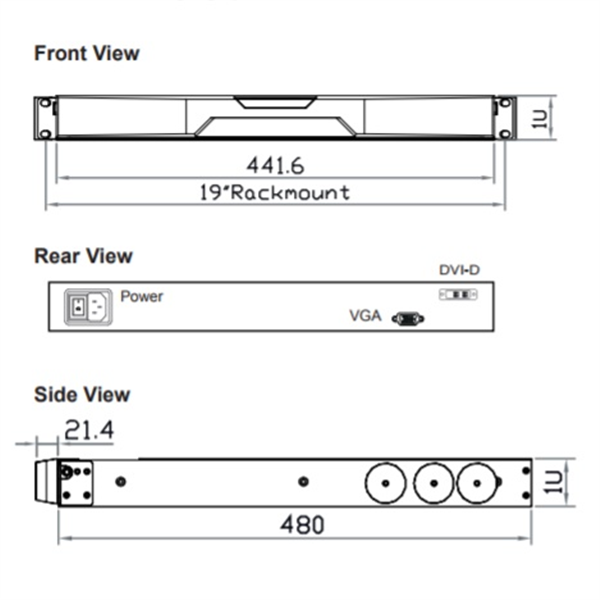

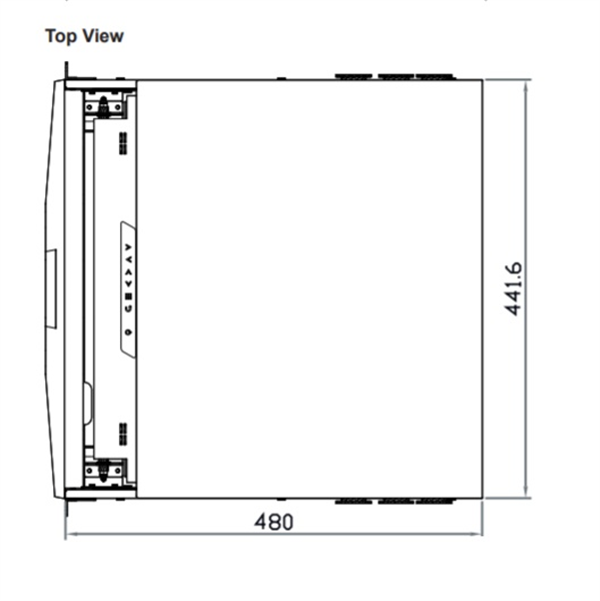

Physical Specification

Product ( W x D x H )

  • 441.6 x 480 x 44 mm 17.4 x 18.9 x 1.73 inch

Packing ( W x D x H )

  • 588 x 758 x 120 mm 23.1 x 29.8 x 4.7 inch

Net Weight 11 kgs / 24.2 lbs

Gross Weight 15 kgs / 33 lbs
