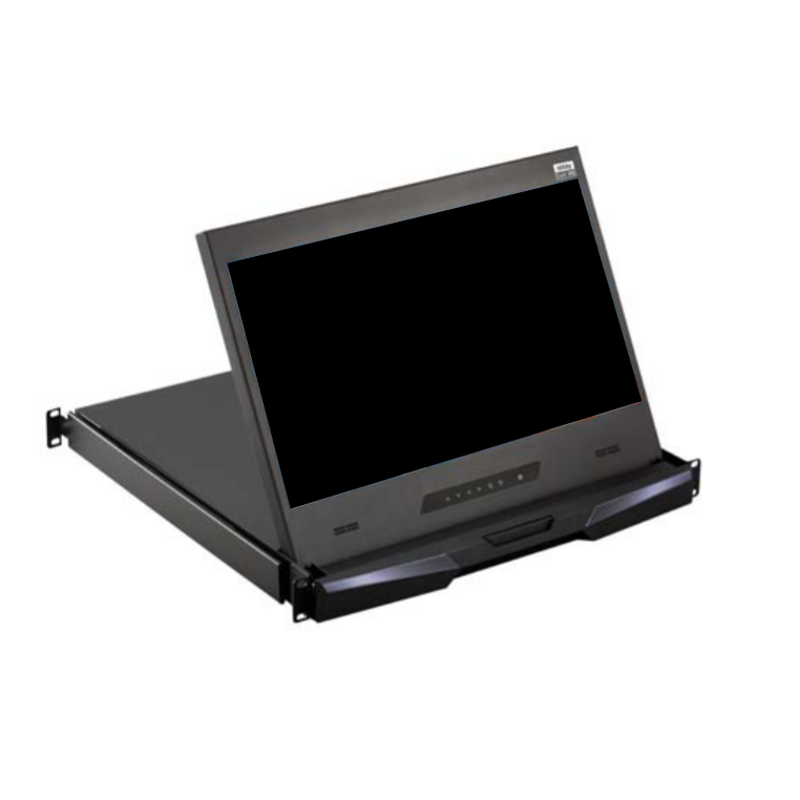

SL-RMPD-17-HD-TOUCH

1U 17" full-HD LCD drawer with eResistive 1 point touchscreen interface..- 17.3" widescreen LCD..- max resolution 1920 x 1080..- VGA and DVD signal input..- USB touch interface

  • 1U 17" LCD display drawer
  • 1920 x 1080 native resolution / 16.7M colors ( 8-bit )
  • Resistive Touch
  • DVI-D + VGA video input
  • Short depth design of 480mm
  • One Man installation design
  • Enhanced aesthetics with molded front panel and two point lock

Video

  • Video input VGA + DVI-D single link

LCD Panel

  • Panel size ( diagonal ) 17.3"
  • Native resolution 1920 x 1080
  • Brightness ( cd/m² ) 400
  • Contrast ratio ( typ. ) 600 : 1
  • Colors 16.7 M, 8-bit
  • Viewing angle ( L/R/U/D ) 80/80/60/80
  • Response time ( ms ) 40
  • Dot pitch ( mm ) 0.1989
  • Display area ( mm ) 381.888H x 214.812V
  • Surface treatment Anti-glare, Hard-coating
  • Surface hardness 3H
  • Backlight type LED
  • MTBF (hrs) 50,000

Power

  • Input Auto-sensing 100 to 240VAC, 50 / 60Hz
  • Screen on Max. 25W
  • Power saving mode Max. 4W
  • Power button on Max. 1W

Environment

  • Operating temp. 0 to 55°C degree
  • Storage temp. -20 to 60°C degree
  • Operating humidity 20~90%, non-condensing
  • Storage humidity 5 ~90%, non-condensing
  • Operating altitude 16,000 ft
  • Non-operating altitude 40,000 ft
  • Shock 10G acceleration ( 11ms duration )
  • Vibration 10~300Hz 0.5G RMS random vibration

Physical

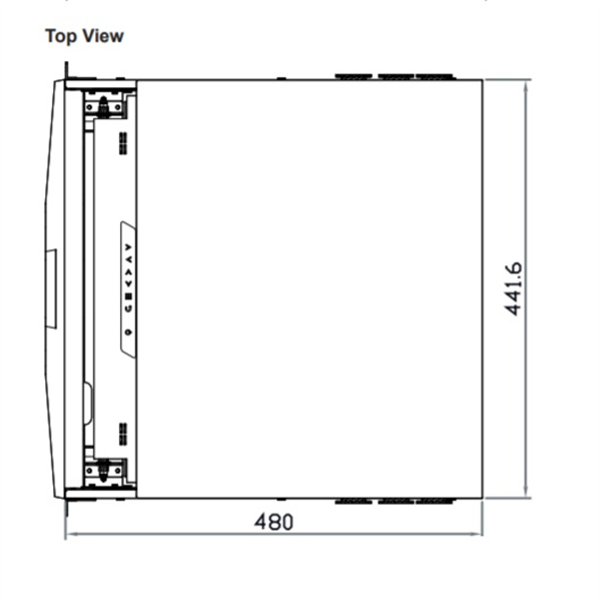

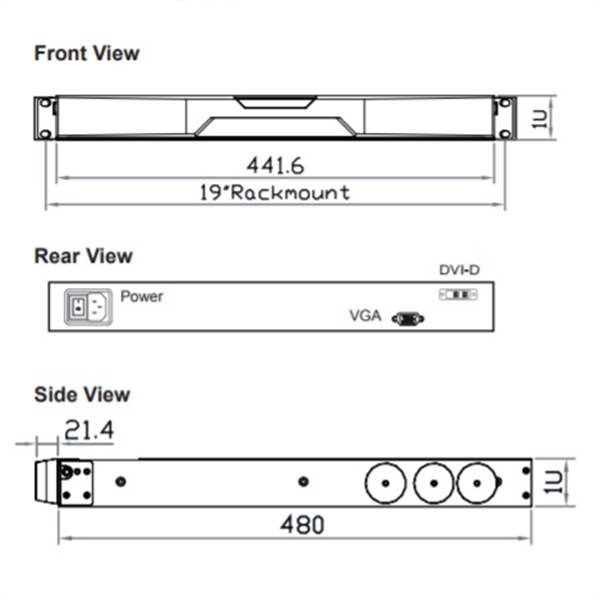

  • Dimensions ( W x D x H )
  • Product 442 x 480 x 44 mm, 17.4 x 18.9 x 1.73 inch
  • Packing 588 x 758 x 120 mm, 23.1 x 29.8 x 4.7 inch
  • Weight
  • Net 11 kg / 24.2 lb
  • Gross 15 kg / 33 lb

Mounting Distance

  • Display drawer 490 ~ 720 mm, 19.3 ~ 28.3 inch

Compliance

  • EMC FCC & CE certified
  • Safety CE / LVD certified
  • Environment RoHS2 & REACH compliant
