SL-RMPD-MRP-F17-3-HDMI

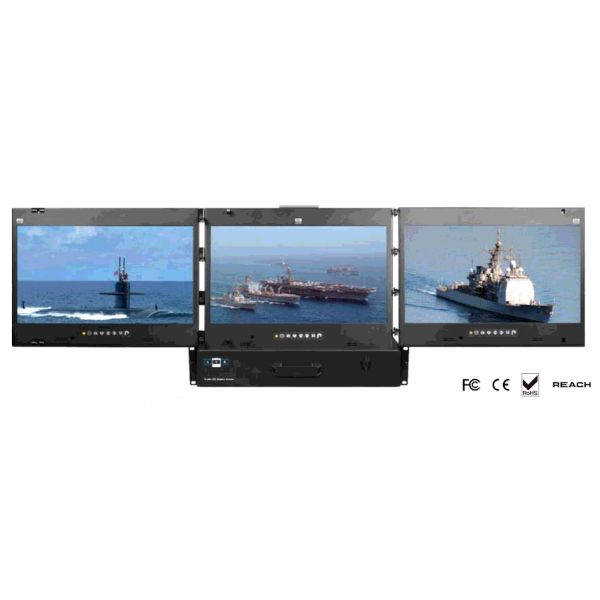

2U 17.3" Triple Display Full-HD LCD drawer. Widescreen LCD, max resolution 1920 x 1080 with 3x HDMI signal input
Features
- 2U 17.3" Triple Display Full-HD LCD drawer.
- Widescreen LCD
- Max resolution 1920 x 1080
- 3x HDMI signal input
LCD Panel
Native Resolution 1920 x 1080
Panel Size ( diagonal ) 17.3"
Standard Brightness ( cd/m² ) 400
Contrast Ratio ( typ. ) 600:1
Colors 16.7 M, 8-bit
Viewing Angle ( L/R/U/D ) 80/80/60/80
Response Time ( ms ) 5.5
Dot pitch ( mm ) 0.1989
Display Area ( mm ) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 50,000
Video
Package 3x HDMI 1.4 / HDCP 1.4
Power
Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Screen ON Max. 25W
Power saving mode Max. 4W
Power button OFF Max. 1W
Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
Environmental Conditions
Operating
Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Altitude 16,000 ft
Storage / Non-operating
Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
Physical Specification

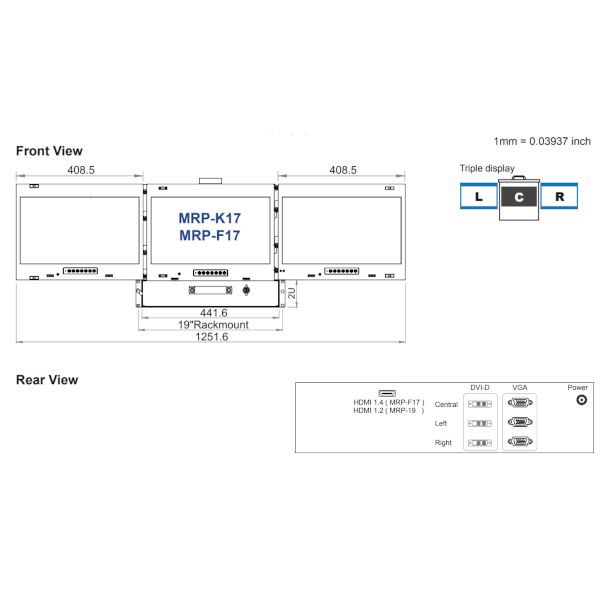

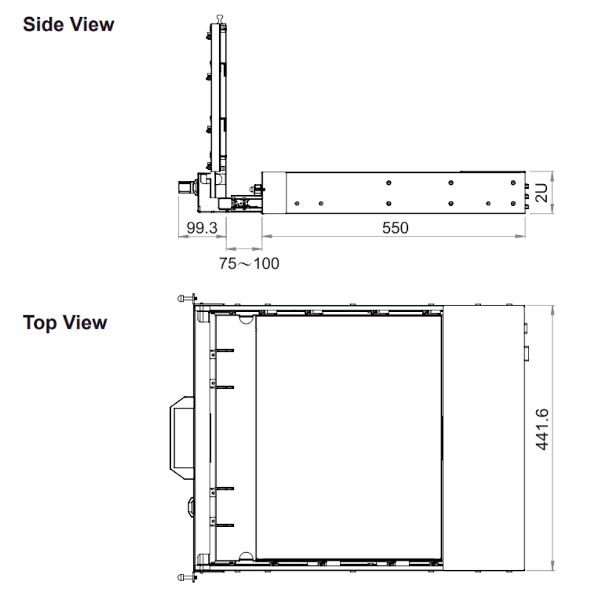

Product ( W x D x H ) 441.6 x 550 x 88mm, 17.4 x 21.7 x 3.5 inch
Packing ( W x D x H ) 580 x 683 x 197mm, 22.8 x 26.9 x 7.8
Net Weight 24.1 kg / 53 lb
Gross Weight 29.3 kg / 64.5 lb
Applicable Format
HDMI Input
PC Signal Same as VGA
3x HDMI 1.4
1920 x 1080 x 50 / 60Hz ( 1080p )
1920 x 1080 x 25 / 30Hz ( 1080i )
1280 x 720 x 50 / 60Hz ( 720p )
720 x 480 x 50 / 60Hz ( 576p / 480p )
