SL-RMPD-RP-119

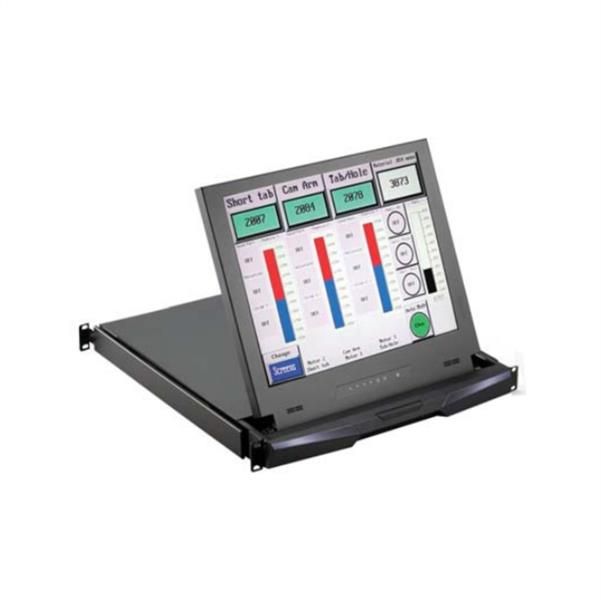

1U Rackmount 19" LCD Drawer with VGA and DVI-D inputs

1U Rackmount 19" LCD Drawer

  • Panel Size ( diagonal ) 19-inch TFT color LCD
  • Display pixel ( dots x lines ) 1280 x 1024
  • Brightness ( typ. ) 250
  • VGA and DVI-D inputs


LCD Panel

  • Panel Size ( diagonal ) 19-inch TFT color LCD
  • Display pixel ( dots x lines ) 1280 x 1024
  • Brightness ( typ. ) 250
  • Contrast Ratio ( typ. ) 1000:1
  • Color 16.7 M
  • Viewing Angle ( L/R/U/D ) 85/85/80/80
  • Response Time ( ms ) 5
  • Dot pitch ( mm ) 0.294
  • Display Area ( mm ) 376.32H x 301.06V
  • Surface treatment Haze 25%, Hard-coating
  • Surface hardness 3H
  • Backlight Type LED
  • MTBF ( hrs ) 30,000

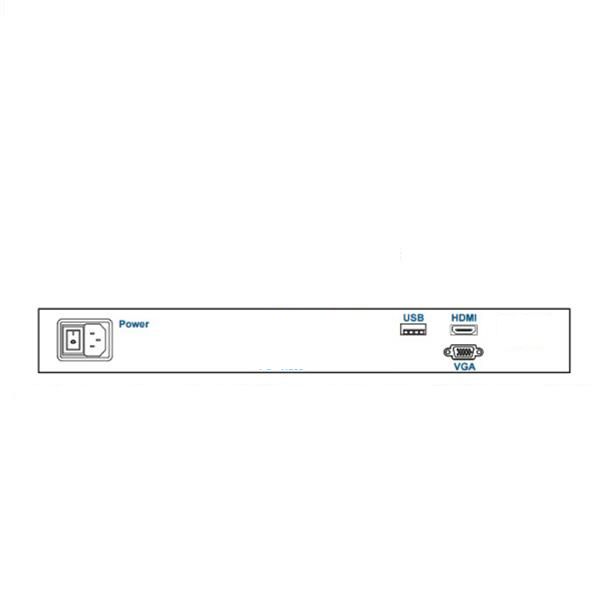

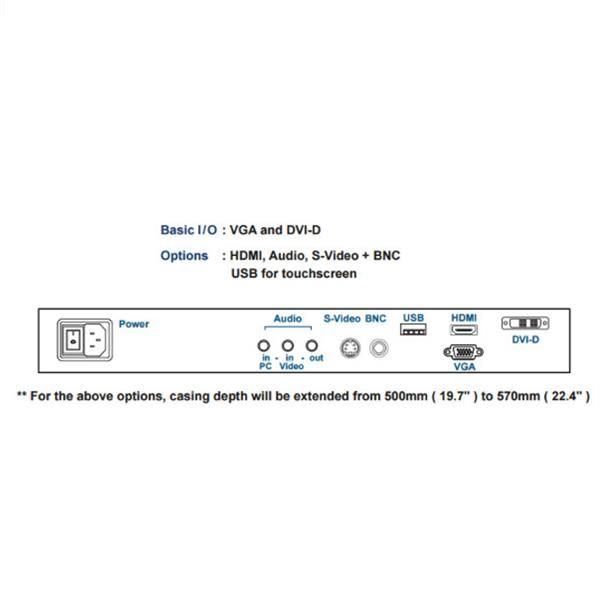

Video Connectivity

  • Digital DVI DVI-D, TMDS single link
  • Analog VGA Analog 0.7Vp-p

Plug & Play DVI / VGA VESA EDID structure 1.3

Power

  • Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption

  • Screen ON Max. 25W
  • Power saving mode Max. 4W
  • Power button OFF Max. 1W

Regulatory

  • Safety FCC & CE certified
  • Environmental RoHS2 & REACH compliant

Environmental Conditions

Operating

  • Temperature 0 to 55°C degree
  • Humidity 20~90%, non-condensing
  • Altitude 16,000 ft

Storage / Non-operating

  • Temperature -20 to 60°C degree
  • Humidity 5~90%, non-condensing
  • Altitude 40,000 ft
  • Shock 10G acceleration (11ms duration)
  • Vibration 5~500Hz 1G RMS random

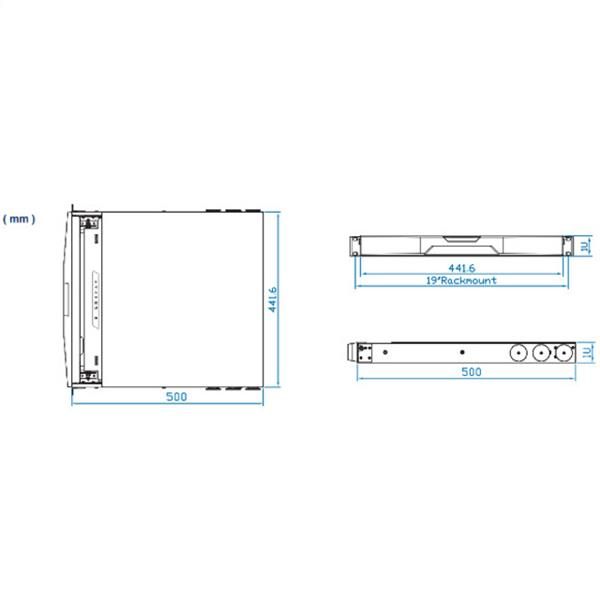

Physical Specification

Product ( W x D x H )

  • 441.6 x 500 x 44 mm
  • 17.4 x 19.7 x 1.73 inch

Packing ( W x D x H )

  • 588 x 758 x 120 mm
  • 23.1 x 29.8 x 4.7 inch

Net Weight 12.5 kgs / 27.5 lbs

Gross Weight 18.5 kgs / 40.7 lbs
