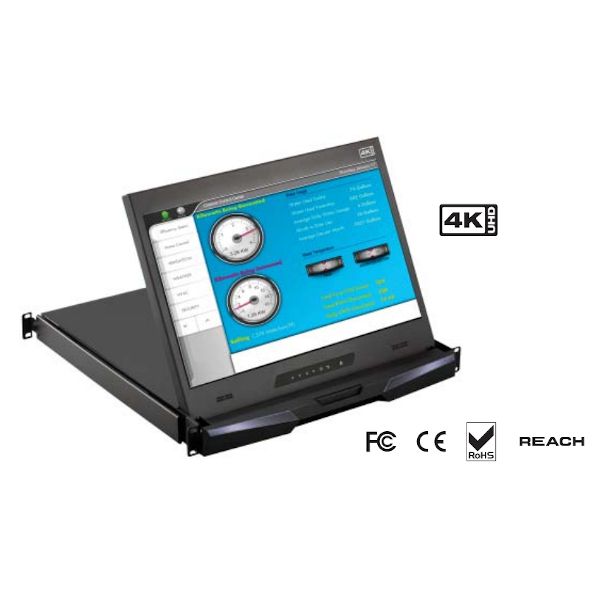

SL-RMPD-RP-K117

1U 17.3" 4K/UHD LCD drawer, widescreen LCD. Max resolution 3840 x 2160 with Displayport 1.2 signal input.

Features

  • 1U 17.3" 4K/UHD LCD Drawer
  • 3840 x 2160 resolution
  • DisplayPort 1.2 / HDCP 1.3
  • LED Backlight

LCD Panel

Native Resolution                                             3840 x 2160

Panel Size ( diagonal )                                     17.3-inch TFT color

LCD Brightness ( cd/m² )                                300

Contrast Ratio ( typ. )                                     1000:1

Colors                                                                   16.7 M, 8-bit

Viewing Angle ( L/R/U/D )                             89/89/89/89

Response Time ( ms )                                      16

Dot pitch ( mm )                                               0.0995

Display Area ( mm )                                         382.12 x 214.94V

Surface treatment                                           Anti-glare

Surface hardness                                              3H

Backlight Type                                                   LED

MTBF ( hrs )                                                        20,000



Video

Package                                                                DP 1.2 / HDCP 1.3



Power

Power Supply                                                     Range Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption

Screen ON Max. 29W

Power saving mode Max. 9W

Power button OFF Max. 2W



Compliance

EMC                                                                       FCC & CE certified

Safety                                                                   CE / LVD certified

Environment                                                      RoHS2 & REACH compliant



Environmental Conditions

Operating

Temperature                                                     0 to 55°C degree

Humidity                                                              20~90%, non-condensing

Altitude                                                                16,000 ft



Storage / Non-operating

Temperature                                                     -20 to 60°C degree

Humidity                                                              5~90%, non-condensing

Altitude                                                                40,000 ft

Shock                                                                    10G acceleration (11ms duration)

Vibration                                                             5~500Hz 1G RMS random



Physical Specification

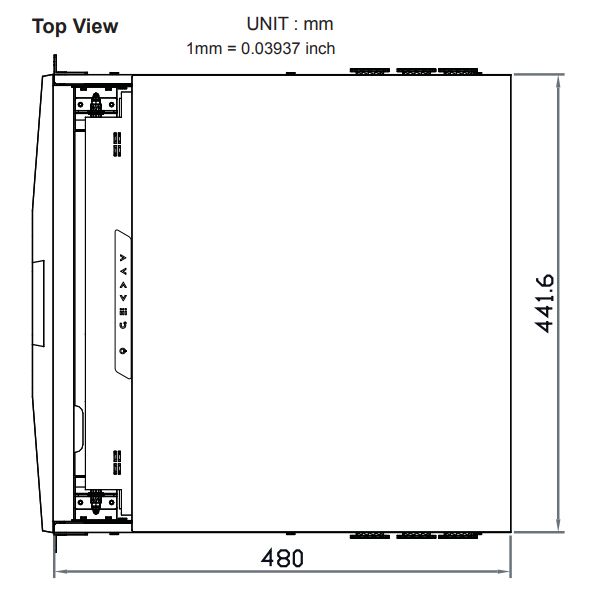

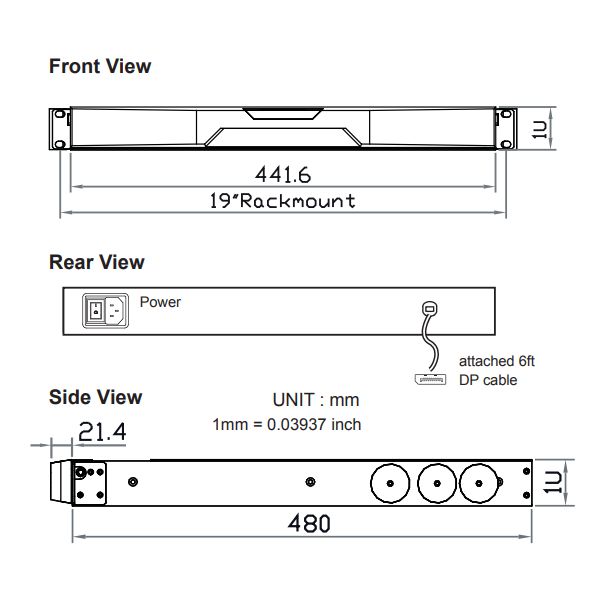

Product ( W x D x H )                                       442 x 480 x 44 mm, 17.4 x 18.9 x 1.73 inch

Packing ( W x D x H )                                       588 x 758 x 120 mm, 23.1 x 29.8 x 4.7 inch

Net Weight                                                         11 kg / 24.2 lb

Gross Weight                                                     15 kg / 33 lb



Applicable Format

Display Port Input

PC Signal

3840 x 2160 x 60Hz

1920 x 1080 x 60Hz

1600 x 1200 x 60Hz

1360 x 768 x 60Hz

1280 x 1024 x 60 / 75Hz

1280 x 768 x 60Hz

1024 x 768 x 60 / 70 / 75Hz

800 x 600 x 60 / 72 / 75Hz

720 x 400 x 70Hz

640 x 480 x 60 / 72 / 75Hz

Audio Signal 2ch Linear PCM
